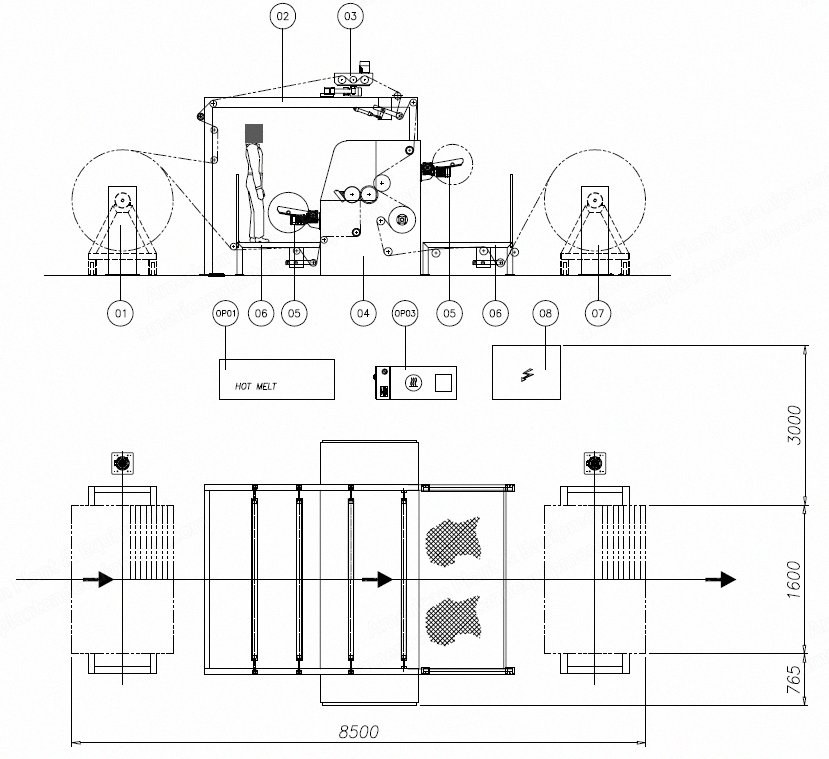

NovaStar, Hot Melt Lamination Line, 1600mm Working Width, 1800mm Roller Width, 20 kW (New)

NovaStar, Hot Melt Lamination Line, 1600mm Working Width, 1800mm Roller Width, 20 kW

Description

  1. Overview
    1. Equipped with a gravure roller for putting small dots of adhesive over the fabric.
    2. Working width: 1600 mm.
    3. Rollers width: 1800 mm.
    4. Maximum diameter of the roll to be unwound: 1600 mm.
    5. Maximum diameter of the rolls to be rewound: 1600 mm.
    6. Adjustable mechanical speed: 5 to 40 meters per minute.
    7. Tension – frequency: 400 volts x 3, 50 Hz.
    8. Installed power of the motors: 20 kW.
    9. Epoxy painted.
  2. Materials To Be Processed
    1. PVC gr/m² 110.
    2. Polyester fabric, woven gr/m² 210.
  3. System Assurances
    1. Perfect and automatically synchronized speed of the machines.
    2. Automatic control of the tension on the product, adjustable by means of load cells and dancer rollers.
    3. Coating capacity from 15 gr to 20 gr per square meter (per customer specifications).
    4. Different additional engraved rollers can be ordered in order to have different coated weights per square meter, depending on the substrates you wish to laminate and the bonding strength you want.
    5. Adhesive type: to be specified by customer.
  4. Composed Of
    1. Axial unwinding unit – quantity 1. Suitable for rolls (a-frame is not included in the supply).
    2. Framework – quantity 1. This framework is provided with platform and idle rollers (rotating on high-sliding bearings) to best support the material.
    3. Fabric centring and pulling unit – quantity 1. Equipped with driven rollers and dancer roller for automatically adjusting tension.
    4. Hot-melt laminator gravure – quantity 1. Gravure system for placing small dots of adhesive over the fabric. Engraved applicator roller has to be heated by thermal oil. This roller has a chrome surface and is with rotating joints. Speed adjustable by inverter. Knife unit, which also works as vessel to contain the melted adhesive. Heated by thermal oil. Independent adjustment of the thickness of adhesive on right side and on left side by screw-jacks powered by electric motor. Counter roller to the dosing coating system made of steel and with silicon rubber-coated surface. Synchronized speed and adjustable by inverter. Calender: this roller has a teflon surface. Independent adjustment of thickness of fabric on right side and on left side by screw-jacks powered by electric motor. 1 cooling roller. Inside the roller there is an interspace (chamber), this type of construction ensures the highest cooling effect. The rollers are equipped with rotating joints for the inlet and outlet of the cooling water. 2 motorized expander rollers.
    5. Tangential unwinder – quantity 2. The unit is suitable for unwinding rolls of materials (fabrics, films or nonwovens) with tangential system in touch with a roller driven with adjustable speed through a gear motor and “inverter” electronic drive to automatically control the tension on the unwound material. It is possible to run the membrane with a gap ± 10%. Pneumatic shaft expander, suitable for cardboard pipe with 3”.
    6. Operator platform – quantity 2. Consists of a framework made of electro-welded steel profiles. It has got an aluminum made platform with chequered surface. The aluminum platform can be overturned in order to facilitate the pass of the fabric.
    7. Axial rewinder – quantity 1. Designed for rolls with max. diameter 1600 mm and complete with pneumatic dancer roller (a-frame is not included in the supply).
    8. Extruder/drum melter – quantity 1. Extruder to melt the thermoplastic adhesive granules, melting temperature up to 220° C, delivery maximum 200 kg/hour, total power about 65 kW. Drum melter suitable for processing PUR (reactive polyurethane) hotmelt adhesives suitable for adhesive drums with 200 l (capacity: max capacity 60 kg/hour, melting temperature up to 220° C, total power 15 kW, gear pump with adjustable speed, drum melter supplied with 2 heated hoses and 2 doser guns).
    9. General electric control panel – quantity 1. Provided with PLC and touch screen for automatic control of the working parameters.
    10. Electric thermoregulating unit for thermal oil – quantity 1. To heat the coating rollers of the hotmelt coating machine. Adjustable temperature 70 ÷ 280° C. Total power 30 kW.
