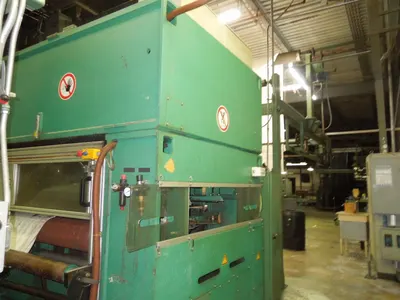

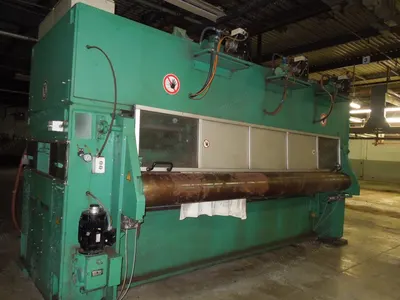

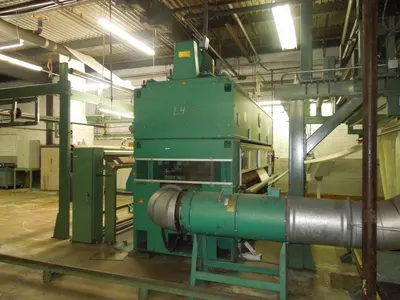

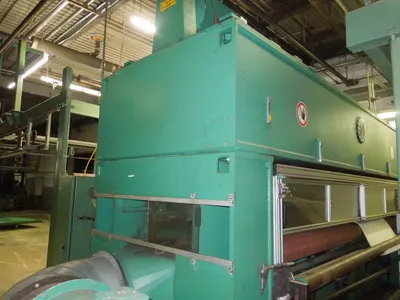

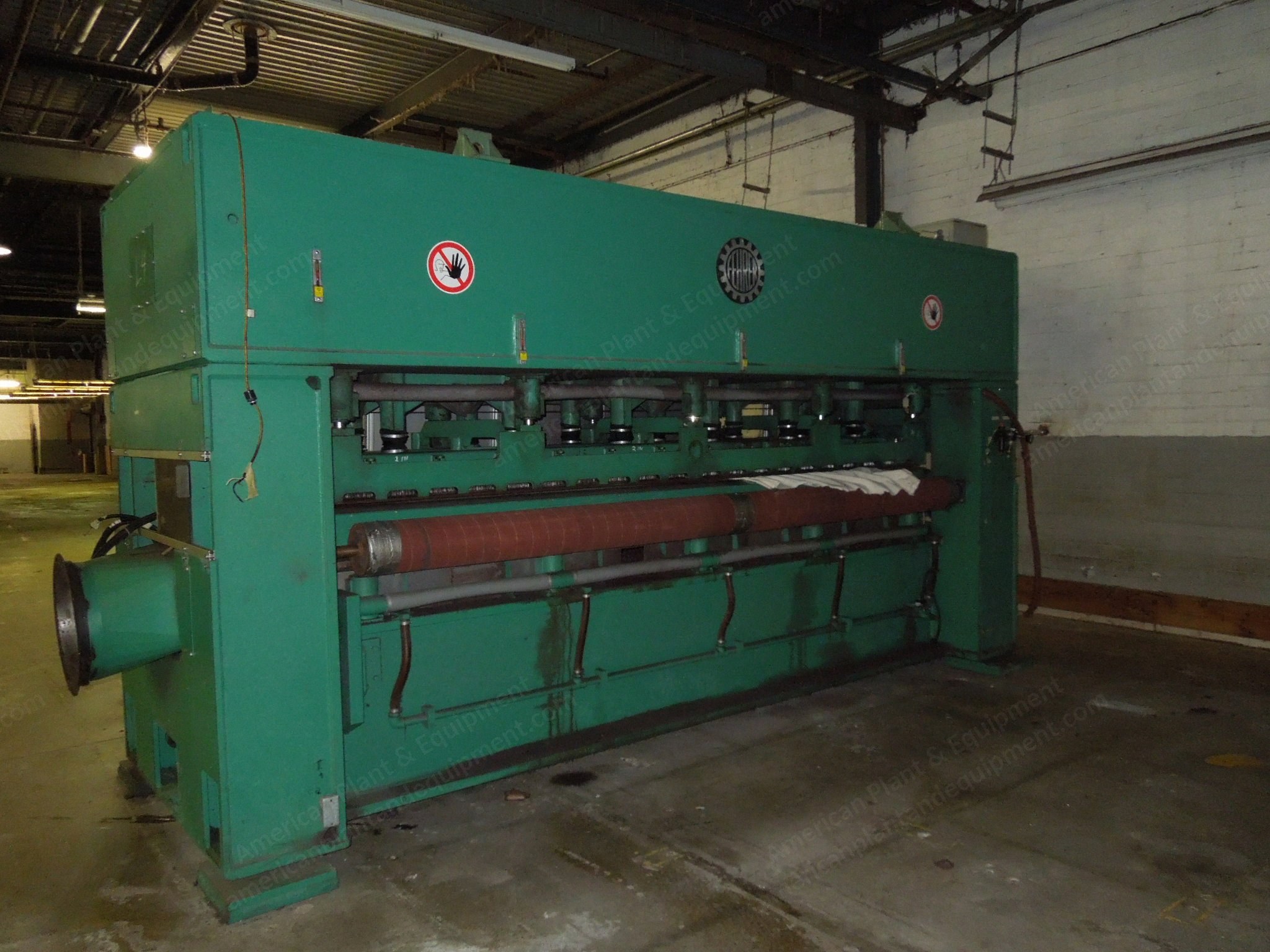

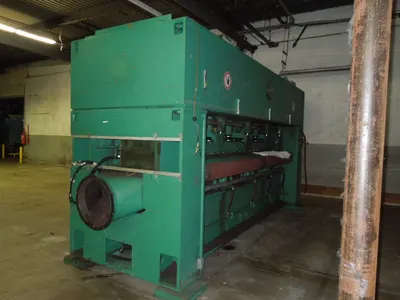

Fehrer, NL21/S, 1998, 3600mm Working Width, 1900 RPM, Double Board Downstroke

Fehrer, NL21/S, 1998, 3600mm Working Width, 1900 RPM, Double Board Downstroke

Description

  1. Overview
    1. Double board machine for downstroke needling
    2. Year: 1998
    3. Working width: 3600 mm
    4. Rpm: 1,900
    5. Stroke: 40 mm
    6. Maximum continuous strokes: 1900 strokes per minute
    7. Passage speed: 3 to 30 meters per minute
  2. Specifications
    1. 2 x 6000 needles per linear meter of working width
    2. Main drive: 55 kW
    3. Exhaust air fans: 2 x 4.7 kW
    4. Fabric drive motor: 2.2 kW
    5. Oil pumps: 3 x 0.25 kW
    6. Oil coolers: 3 x 0.18 kW
    7. Brush drive: 0.18 kW
    8. Bed plate drive: 1.5 kW
    9. Stripper drive: 1.5 kW
    10. Voltage: 3 x 460 V, 60 Hz
    11. Control voltage: 120 V
  3. Included Equipment
    1. Infeed web guide with magnetic metal separator
    2. Festoon fabric folder

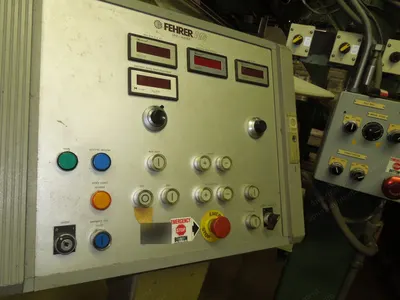

    3. Power console with process control cabinet
    4. Lint removal system
  4. Weights
    1. Gross weight: 28,500 kgs
    2. Net weight: 26,360 kgs
