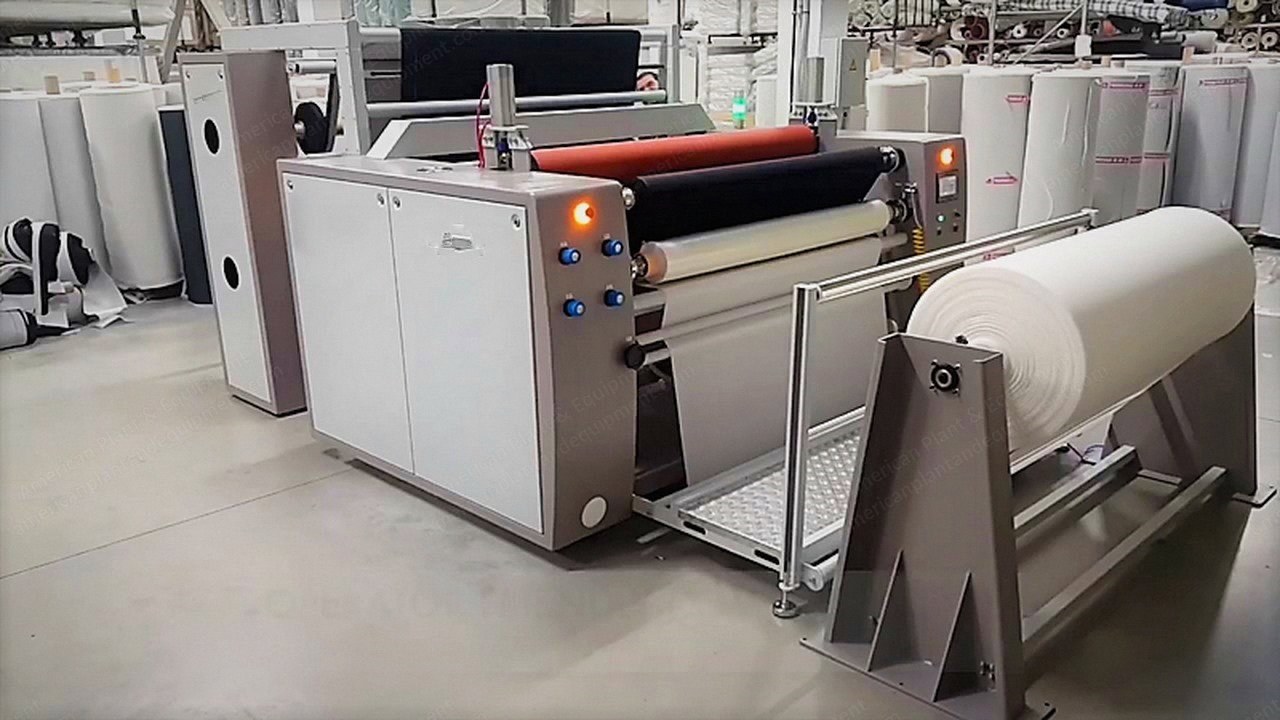

Muratex, 500-2200, Laminating Machine for Foam to Fabric, 2100mm Working Width, 500mm Drum Diameter, with Slitting Unit (New)

Muratex, 500-2200, Laminating Machine for Foam to Fabric, 2100mm Working Width, 500mm Drum Diameter, with Slitting Unit

Description

  1. Overview
    1. Silicon coated nomex felt (ITB brand – Italian)
    2. Roll to roll working system
    3. Slitting unit with 3 piece pneumatic cutter and dual center rewinding unit (optional)
  2. Specifications
    1. Blanket thickness: 8 mm
    2. Maximum working width: 2100 mm (82.6)
    3. EVA hot melt film, film roll minimum 500 meters, maximum 1000 meters
    4. 36 kW heater resistance
    5. Main drum diameter: 500 mm
    6. Teflon coated main cylinder
    7. Working speed: 5 to 10 meters per minute, depending on fabric thickness (thick fabric is slower, normal fabric is faster)
    8. 440 V 3-phase, 60 Hz, 55 amp
    9. Dimensions: 2200mm width, 500mm cylinder diameter
  3. Controls and Features
    1. Pneumatically adjustable felt pressure
    2. Pneumatic blanket edge control by photocell
    3. PLC controller with touch screen operator panel
    4. Programmable heating up and cooling down
  4. Condition and Lead Time
    1. Lead time: 6 to 8 weeks after receipt of deposit
