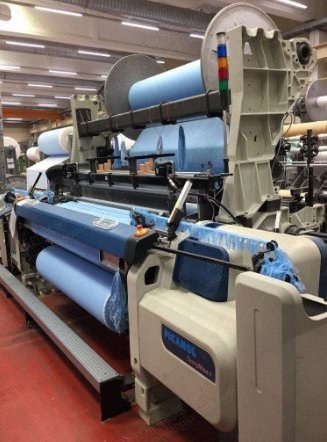

Picanol, Terry-Max-i-2-R 230, 2016, Terry Loom, Working Width 2300mm, Staubli Dobby S-3020, 20 Levers

Picanol, Terry-Max-i-2-R 230, 2016, Terry Loom, Working Width 2300mm, Staubli Dobby S-3020, 20 Levers

Description

  1. Overview
    1. Working width: 2300 mm
    2. Length x width: 5500 mm x 2000 mm
    3. Weight: ca. 6000 kg
    4. Maximum speed: 530 U/minute (pile height: maximum 7 mm / machine rotation speed) (depending on quality of yarn and preparation)
  2. Specifications
    1. Staubli dobby, model S-3020 e3 DRC/C4/CAN
    2. Soft/adapt/# 2123/1, 24 VDC, A/4-8A-peak
    3. Flagpoles: Derix aluminium profile
    4. 20 levers
    5. 16 heald frames
    6. 5000 droppers
    7. High speed
    8. Looper
    9. Integrated microprocessor control
    10. Interactive display window
    11. PC communication (Ethernet BI-COM installed and active)
  3. Condition
    1. In excellent used condition with only 545 operating hours
