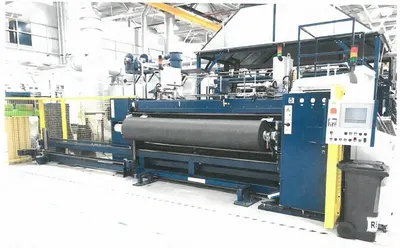

Neuenhauser, ZWCB-6"-3 2/3 5 X D700, 2010, 3200mm Working Width, 5 Lanes

Neuenhauser, ZWCB-6"-3 2/3 5 X D700, 2010, 3200mm Working Width, 5 Lanes

Description

  1. Overview
    1. For winding and handling system carbon scrim
    2. Year: 2010
    3. Model: ZWCB-6”-3 2/3 5 X D700
    4. Working width: 3200 mm
    5. Width: 2060 mm to 3200 mm
    6. Number of lanes: 5 lanes at maximum production width
    7. Orientation: fixed edge at widths less than 3200 mm in direction of travel left
    8. Feed edge: permanent deviation less than or equal to 2 mm
  2. Technical Data for Carbon Roll
    1. Dowel diameter: minimum 350 mm, maximum 700 mm geometric possible
    2. Pods: paper minimum 120 mm thickness sleeves 6 in
    3. Dummy weight: approximately 700 kg, maximum 1000 kg
    4. Edge gradation: +/- 5 mm
    5. Speed: 5 meters per minute

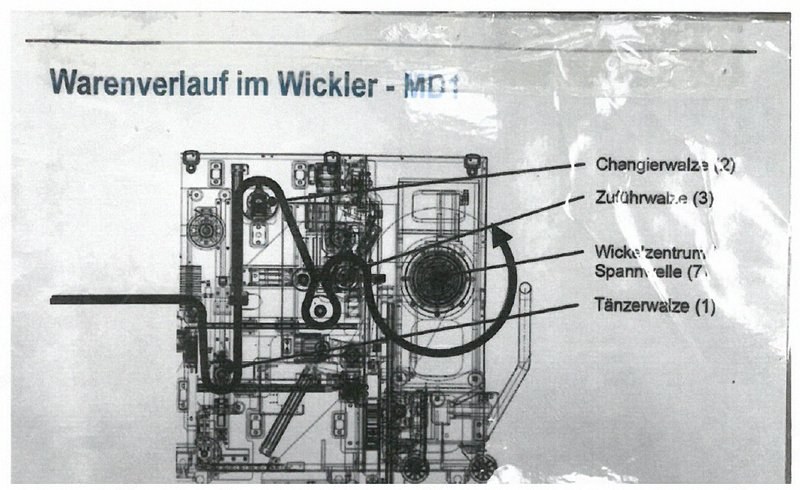

  3. Technical Data for Winding Machine
    1. Deflection roller 1: diameter 160 mm aluminum
    2. Deflection roller 2: diameter 200 mm aluminum rubberized surface, for edge control in the small area
    3. Dancer roller diameter: 160 mm aluminum
    4. Precision version (balanced)
    5. Lineartanzner principle L/R synchronized
  4. Specifications
    1. Sleeve diameter: 6 inches
