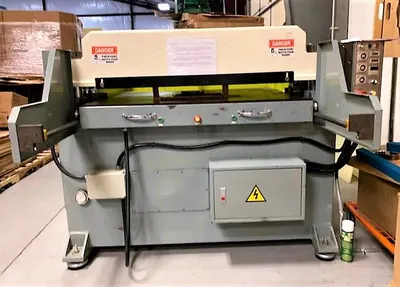

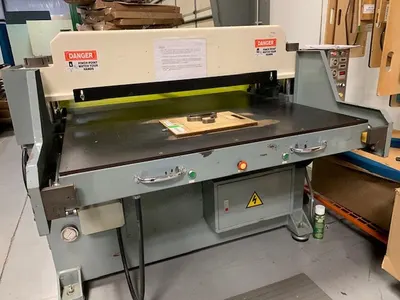

Freeman Schwabe, BP25-2050, 25 Ton, 500x1250mm Bed, Hydraulic Die Cutting Machine

Freeman Schwabe, BP25-2050, 25 Ton, 500x1250mm Bed, Hydraulic Die Cutting Machine

Description

  1. Overview
    1. Model: BP25-2050
    2. Cutting force (capacity): 25 tons
    3. Cutting stroke: 110 mm (4.3)
    4. Maximum daylight: 155 mm (6.1)
  2. Specifications
    1. Machine bed dimensions: 500 mm deep x 1250 mm wide (19.7 in x 49.2)
    2. Effective cutting area: 480 mm deep x 1230 mm wide (18.9 in x 48.5)
    3. Downstroke speed: 91 mm per second (3.6 in per second)
    4. Upstroke speed: 117 mm per second (4.6 in per second)
    5. Power supply: 220 V, 3-phase, 60 Hz
    6. 3 hp motor
    7. Hydraulic oil capacity: 120 liters (31.7 US gallons)
    8. Serial number: FH02007
  3. Dimensions and Weight
    1. Machine dimensions: 1355 mm height x 2158 mm depth x 1827 mm width
    2. Net weight: approximately 1560 kg
  4. Condition
    1. In good working condition
