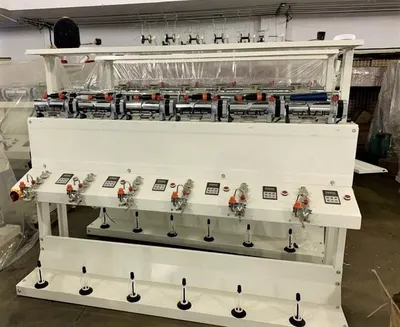

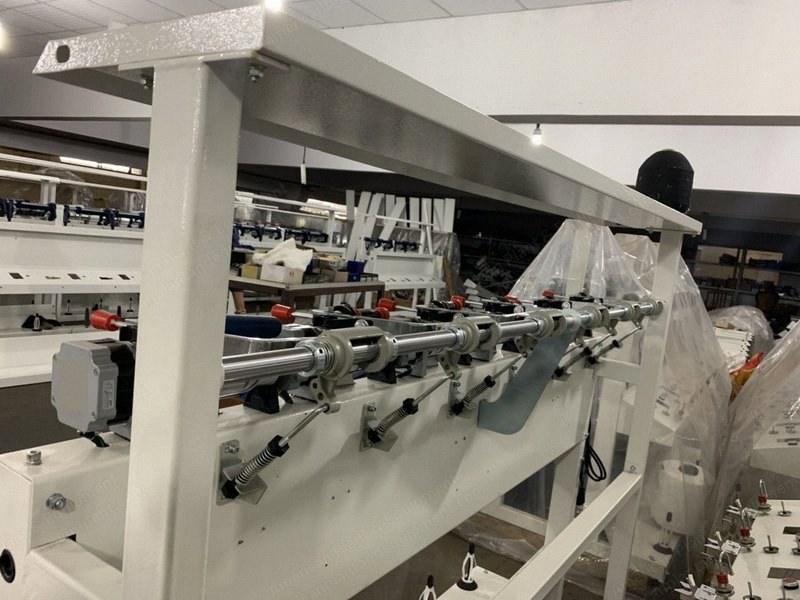

Description Overview Advanced model with function to calculate length and width Positions: 6 or 12 Speed: 1000 meters per minute Configuration: 2 or 6 heads per section, single side -or- 12 heads per section, double side Drive system: single head control alone, 2 heads to 108 heads is acceptable Start/stop: by single spindle operation panel and button Specifications Cone size: please specify when ordering Cone type: taper 3° 30’, 4° 20’, 5° 57’ (Ø 62), 5° 57’ (Ø 68); cylindrical 170* (Ø 20 to Ø 50) Yarn traverse range: 147 mm Maximum diameter of cone yarn: 250 mm Consumed power: 90 W per head at maximum speed Motor: 90 W, better quality Total power: DC 220 V, 50/60 Hz 1100 W motor power of cleaner, 24 spindles can be matched Motorization: each spindle has one inverter motor, each side has maximum 54 spindles Central shaft: chrome Electrical components: supplied by sino german joint venture Material: thicker, more durable iron sheet for added stability Machine dimensions: 1870 mm length x 1100 mm width x 1500 mm height Net weight: 300 kg Features Yarn frame balancer: winding pressure controlled by balance of spring Radial anti patterning system controls anti patterning by computer Detector: infrared beam functions to stop motion for broken yarn, full bobbin and empty spin Yarn clearing device: consists of up and down blades and adjustable holder, can adjust size according to number of yarn Lead Time 7 to 10 working days from receipt of deposit
