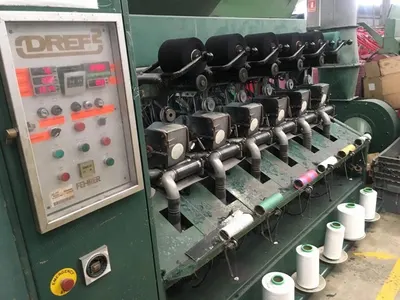

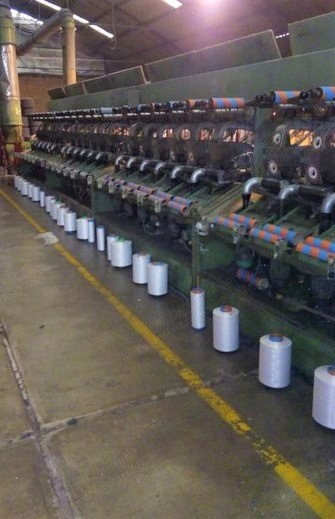

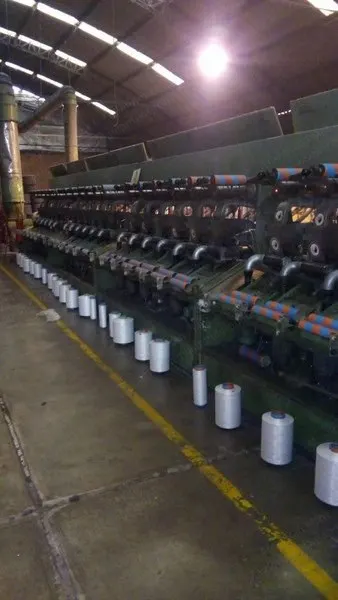

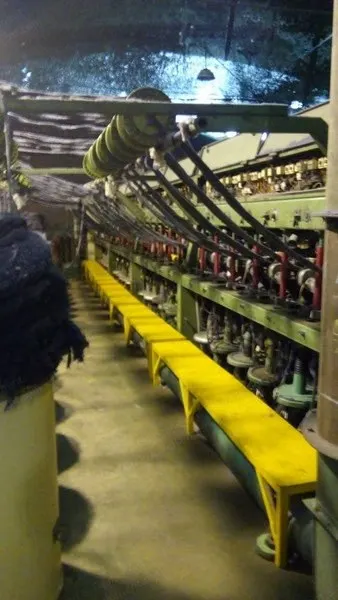

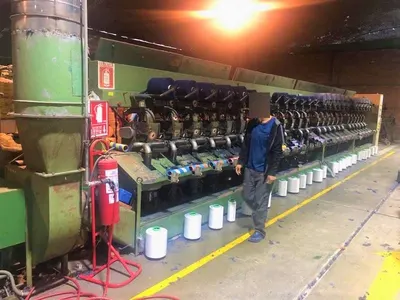

Fehrer, Dref II, 1987, Friction Spinning Machine, 6, 12, or 24 Positions

Description

Overview
1. Dref II machine with 6 positions, quantity 1
2. Dref II machine with 12 positions, quantity 1
3. Dref II machine with 24 positions, quantity 1
Motor Specifications Per Spindle (24-position machine)
1. Suction motors: 3 motors, 0.34 hp each at 440 V, total 1.02 hp
2. Carding motor: 1 motor, 0.5 hp at 380 V
3. Entrance motor: 1 motor, 0.15 hp at 150 V
4. Torsion motor: 1 motor, 0.20 hp at 190 V
5. Exit motor: 1 motor, 0.16 hp at 150 V
6. Total motor capacity per spindle: 2.03 hp

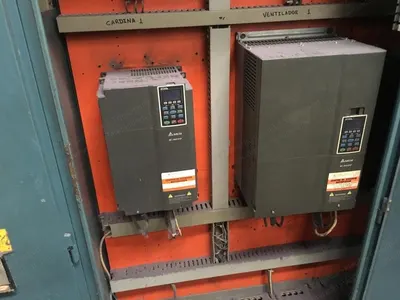

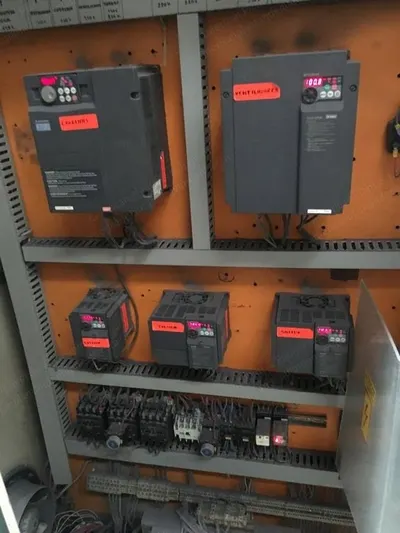

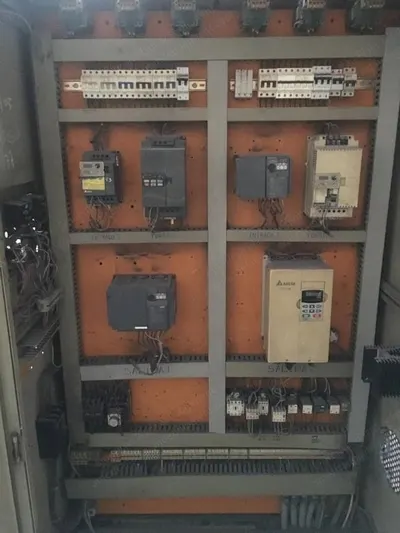

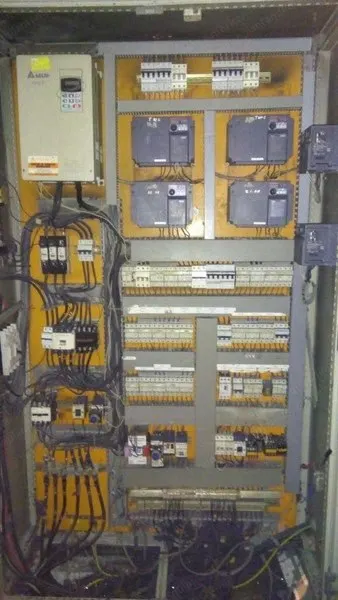

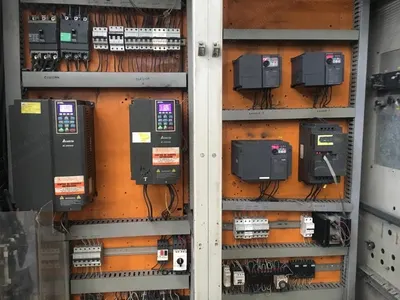

7. Voltages required for each motor are configured in the controllers
Total Power (24-position machine)
1. Total hp for 24 positions: 2.03 hp x 24 = 48.72 hp

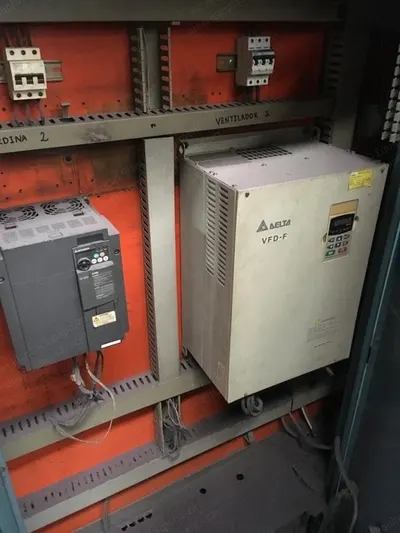

2. Fan #1: 15 hp
3. Fan #2: 7.5 hp
4. Total hp: 71.22 hp
5. Total kw: 52.36

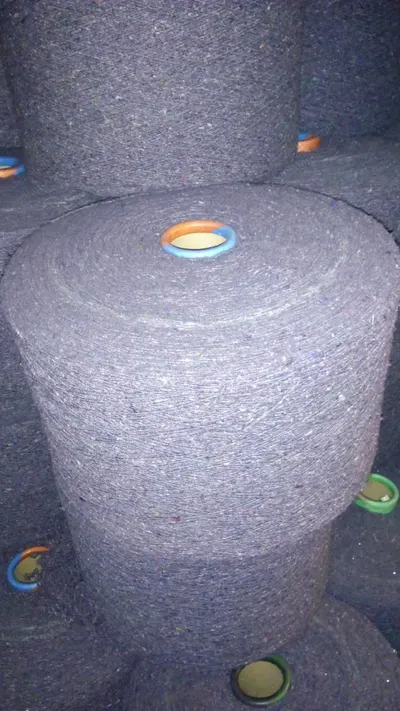

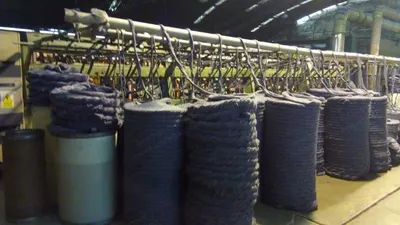

Package Specifications
1. Package weight: 6 kg

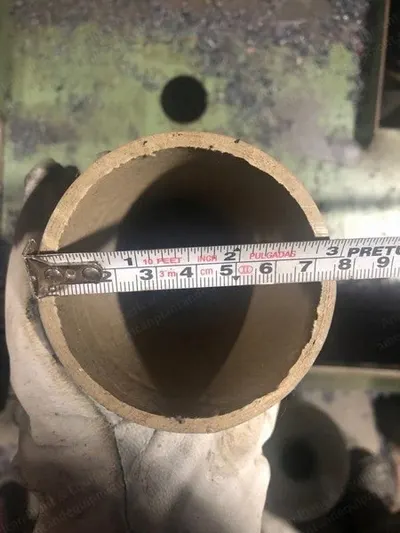

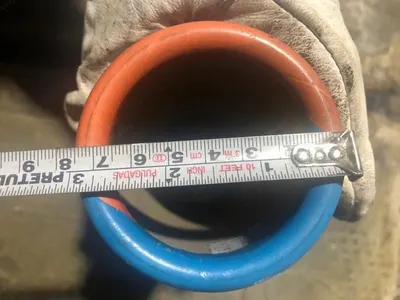

2. Internal diameter of empty bobbin: 70 mm
3. External diameter of empty bobbin: 75 mm

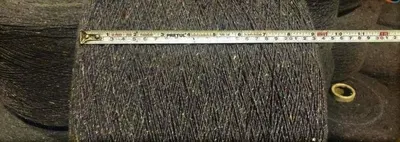

4. Bobbin length: 11 in (280 mm)
5. Traverse: 9 in (230 mm)

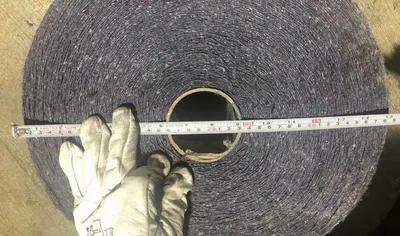

6. Package external diameter: 15 in (380 mm)
Condition
1. All machines in working condition
2. More information is available upon request
