NovaStar, FP145, Waste Web Edge Opener, 1000mm Working Width, 120 kg/hr Capacity (New)

NovaStar, FP145, Waste Web Edge Opener, 1000mm Working Width, 120 kg/hr Capacity

Description

  1. Overview
    1. Capacity: 100 to 120 kg per hour
    2. Offline working
  2. Specifications

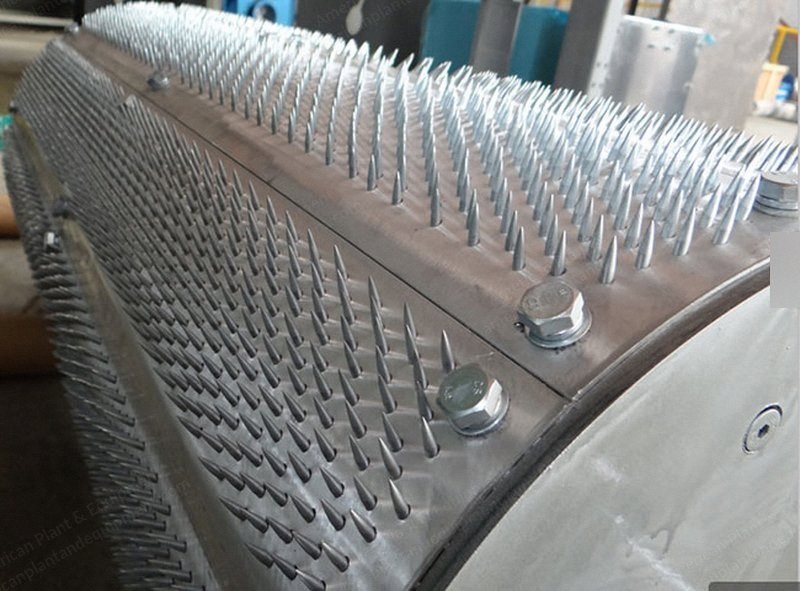

    1. Main cylinder: covered with pin wire, roller Ø400 mm
    2. 14 lags (plates) each with 500 pins, total 7,000 pins on the cylinder
    3. Motor of the cylinder: 8.5 kW, maximum speed 1200 rpm
    4. Feeding motor: 2.2 kW
    5. 2.5# fan conveying, fan motor is 5.5 kW
    6. Installed power: 16.2 kW
    7. Dimensions: 1000mm wide
  3. Additional Information
    1. More information is available upon request.
