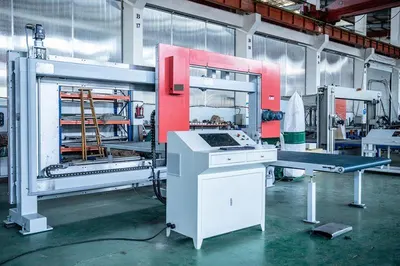

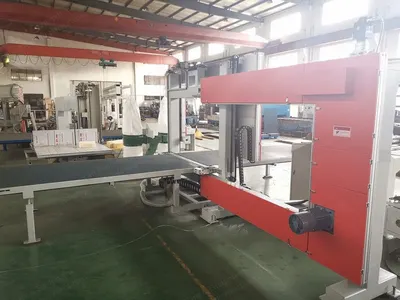

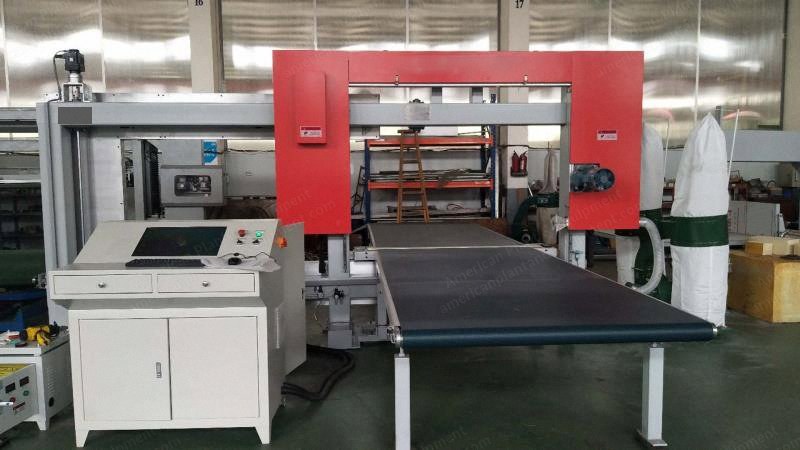

NovaStar, FN232, Dual Blade Fast Wire Contour Cutter, 6 m/min, 2500x1225x1000mm Max Bun Size (New)

NovaStar, FN232, Dual Blade Fast Wire Contour Cutter, 6 m/min, 2500x1225x1000mm Max Bun Size

Description

  1. Overview
    1. Operating system upgraded to Windows 10, Autocad 2020 with Trunest plugin
    2. Dual cutting wires: vertical and horizontal
    3. Controlled via industrial Windows 10 pc with Autocad 2020 with Trunest plugin
    4. Autocad 2020 with Trunest plugin included
  2. Cutting Specifications
    1. Cutting speed: 0 to 6 meters per minute
    2. Maximum bun length: 2500 mm
    3. Maximum bun width: 1225 mm
    4. Maximum bun height: 1000 mm
    5. Cutting wire length: 8500 mm approximate
    6. Cutting wire diameter: 0.8 to 2.0 mm
    7. Cutting precision within 0.5 mm
    8. Fly wheel diameter: 300 mm
    9. Flywheel rpm: 2860 rpm
    10. For materials: rock wool, miner wool, flexible polyurethane, rigid polyurethane, foamglass, polypropylene, honeycomb paperboard, carton, etc
  3. Power and Electrical
    1. Main motor power: 3 kW x 2 (total 6 kW)
    2. With Panasonic inverter for 3 kW motors
    3. Total power: 11 kW, 400 / 240 volts, 50 Hz (or as per customer)
  4. Dimensions and Weight
    1. Overall dimensions: L 5500 x W 5500 x H 2600 mm
    2. Gross weight: 2800 kgs
  5. Included Items
    1. Machine
    2. Dust suction system
    3. Control panel
    4. Software with license key
    5. 1 year guarantee on defective parts
    6. 5 spare cutting wires
    7. 1 limit switch
  6. Lead Time
    1. Lead time: 50 workdays from receipt of order
