NovaStar, MS548, 2019, 2100mm Max Drilling Width, 6 to 28mm Hole Diameter, 12 kW (New)

Overview

1. Drilling machine for vertical drilling of mattresses and pillows by means of special interchangeable drills with different diameters

2. Materials: expanded pu foam, pe foam, visco, bonded foam and similar, latex excluded

3. Vertical and lateral movements of the thrust yoke allow straight and crossed drilling, possible to obtain 9 types of drawings for each mattress

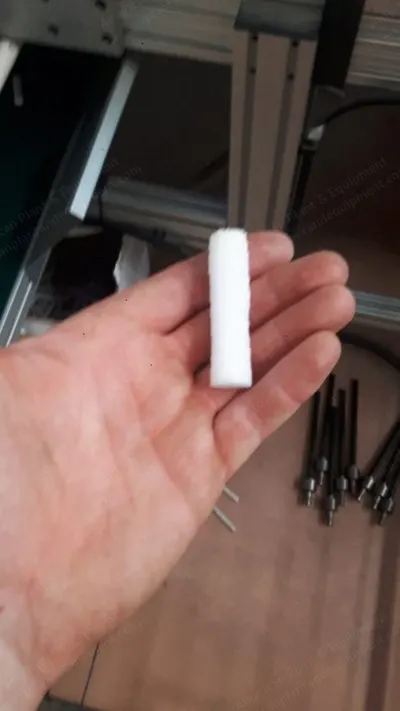

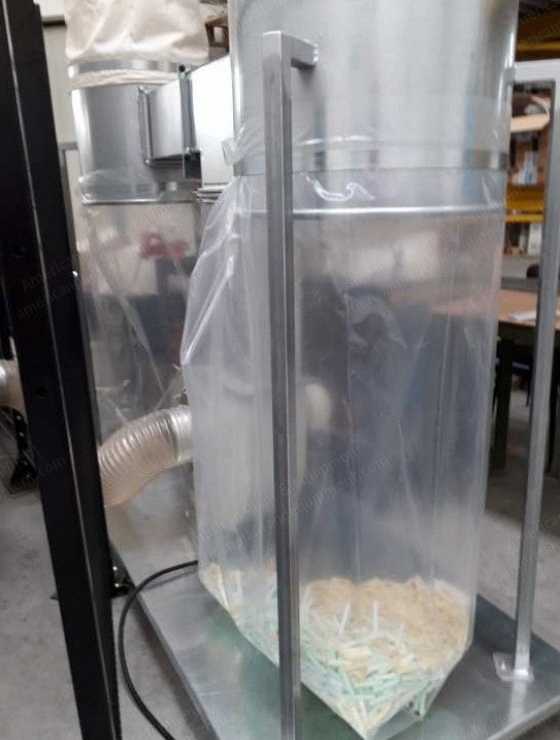

4. Compressed air jet takes foam scraps out leaving holes free, waste evacuated with small conveyor and sucked and conveyed to proper collector station for recycling

5. Controlled lubrication device for drills

6. Pneumatic compressed device keeps mattress firm during perforation and guarantees better performance

7. Easy and fast removing and replacing of drills

8. Feeding and unloading conveyors are controlled by inverters

9. Control console complete with multifunction device (nexus)

10. Drilling simulation and production time and cost computation software

11. Interconnection (industry 4.0)

Specifications

1. Maximum drilling width: 2100 mm

2. Maximum drilling depth: 200 mm

3. Hole diameter: 6 to 28 mm

4. Maximum contemporaneous holes: no. 26

5. Minimum gap among the chucks: 80 mm

6. Drilling speed: 1 to 3 seconds

7. Power: 12 kw

8. Voltage: 400 volts, 50 hz (or as per customer)

9. Working pressure: 6 bar

10. Weight: 2720 kg

11. Machine dimensions: 3780 x 4375 mm

12. Cores collector diameter: 2000 x 800 mm

13. Loading-unloading conveyor: 2100 x 2100 mm

Condition

1. More information is available upon request
