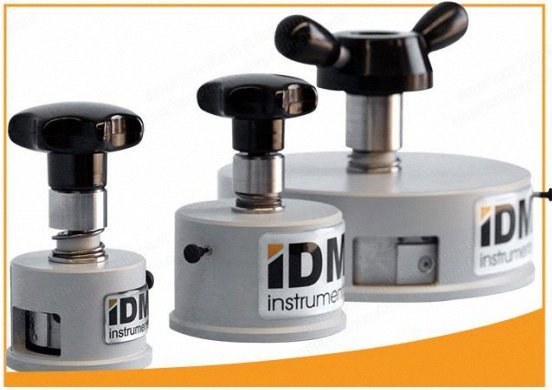

Description Overview The circular hand cutter series are fast and easy to operate, creating accurate circular samples in a large range of mediums. Available in different sizes for suitability to a variety of tests and standards. Applications Paper Paperboard Corrugated fiberboard Solid fiberboard Textiles Features Replaceable blades Easy operation 4 pin location points Max. thickness: 7 mm Safety lock With sample ejection plate Calibration report included Standards AS ASTM BS TAPPI DIN ISO Options Cutting boards Specifications Model C0038 – 50 cm²: cutting size 50 cm², dimensions 115 mm x 129 mm x 162 mm Model C0038 – 100 cm²: cutting size 100 cm², dimensions 148 mm x 158 mm x 160 mm Model C0038 – Ø50 mm: cutting size Ø50 mm, dimensions 85 mm x 95 mm x 150 mm Model C0038 – Ø100 mm: cutting size Ø100 mm, dimensions 135 mm x 148 mm x 163 mm Model C0038 – Ø200 mm: cutting size Ø200 mm, dimensions 234 mm x 248 mm x 200 mm
