Two Complete Nonwoven Airlay Lines, 2200mm Working Width, Temafa, Thibeau, Fehrer, Fleissner

Two Complete Nonwoven Airlay Lines, 2200mm Working Width, Temafa, Thibeau, Fehrer, Fleissner

Description

  1. Overview
    1. Two complete lines, years 2006 and 2007
    2. Working width: 2200 mm
    3. Range of material: 150 to 1190 gsm
    4. Thickness: 0.5 to 1.15 inches
    5. Materials processed: rayon, poly, and binder
    6. Prefer to sell all together
  2. Opening and Feed System
    1. Opening: Temafa
    2. Reserve hopper and chute feed: Thibeau

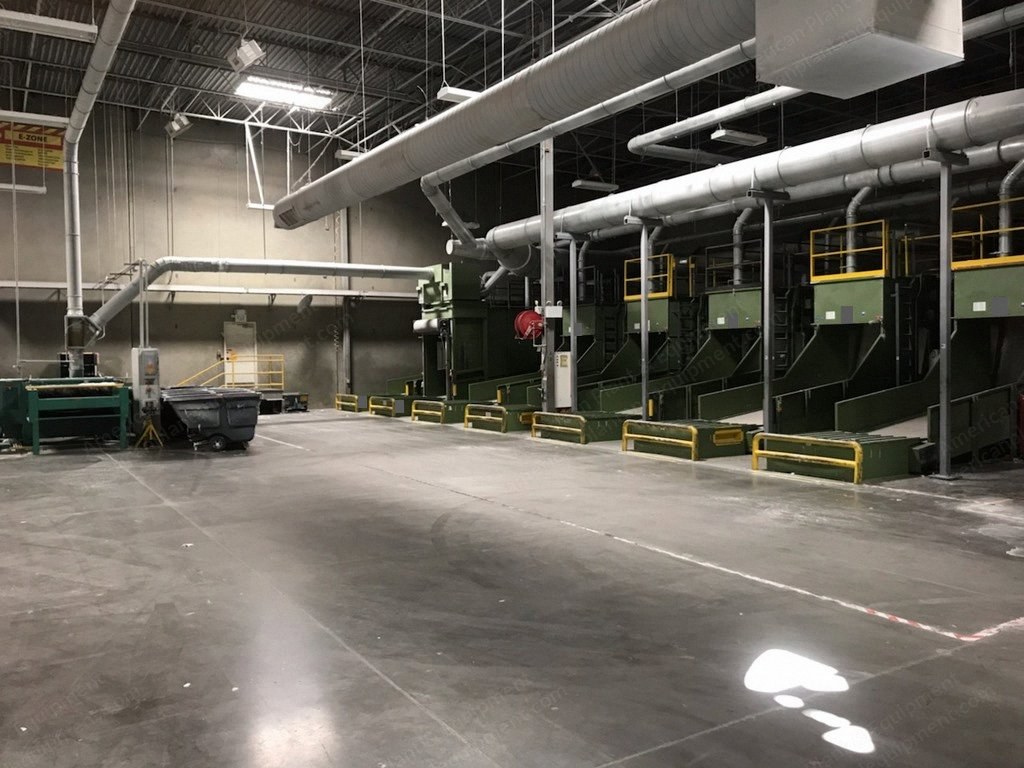

    3. Blending line with 7 hoppers
    4. The 7 hoppers drop on a conveyor belt, are fed through a card willow and oiler, then there is a tube switch that directs it to the proper mixmaster for the proper line
    5. 59 inches wide
    6. 174 inch feed apron
    7. Card willow at the end of the conveyor
  3. Carding and Web Forming
    1. V21/K12: Fehrer

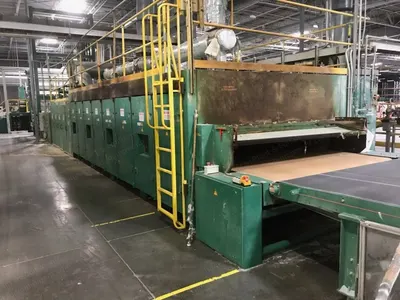

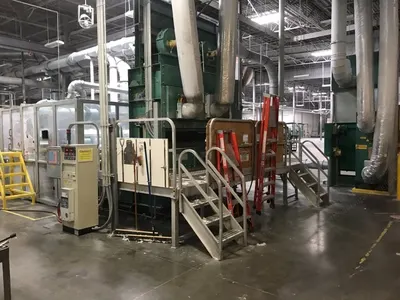

  4. Oven and Cooling
    1. Oven (gas heated) and cooling zone: Fleissner
    2. 4 heating zones, 1 burner per zone, air flow can be either up or down on each zone
    3. 2 cooling zones
  5. Measurement and Winding
    1. Beta gauge: NDC

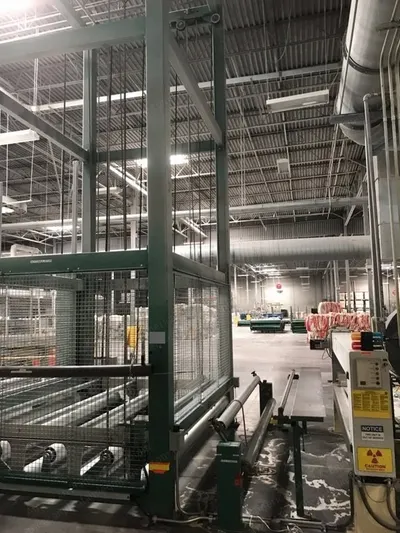

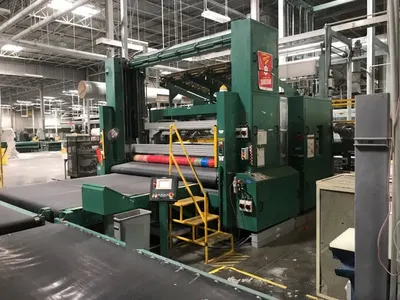

    2. Accumulator and winder: Technoplants
  6. Panel Wrapping

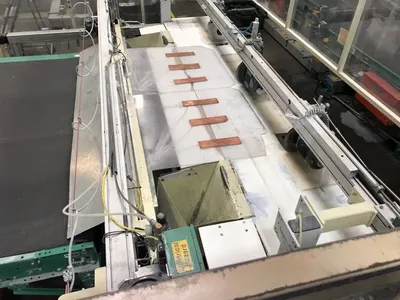

    1. Panel wrapper for wrapping panel in plastic for storage and shipping: Gribetz
  7. Additional Equipment

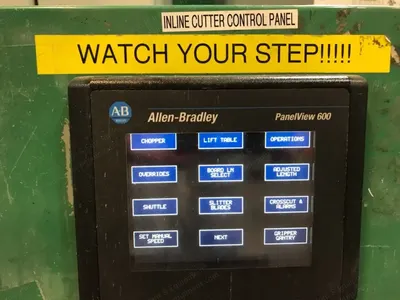

    1. One line has a board cutting machine developed by the plant
  8. Dimensions and Layout
    1. Both lines need about 40 feet of width
    2. The line with the board cutting is about 460 feet long
    3. The line without the board cutting is about 350 feet long
    4. Opening needs about 50 feet by 105 feet
