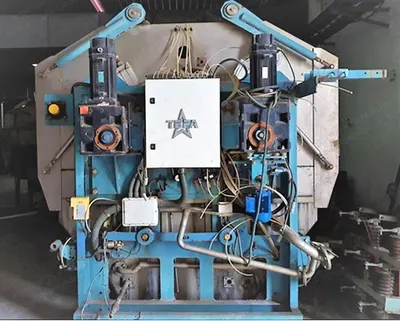

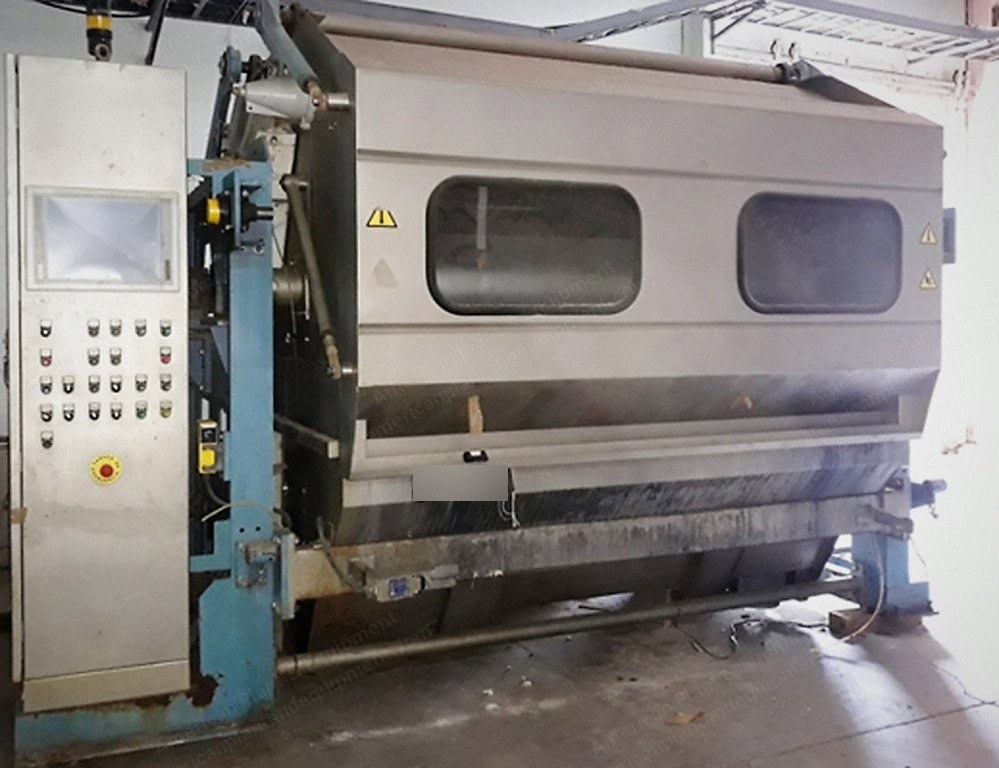

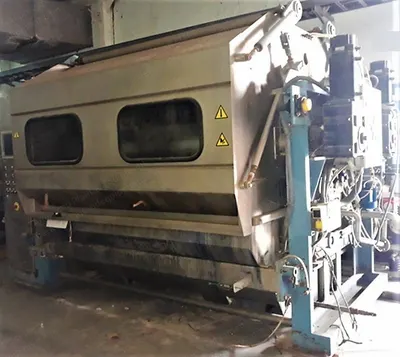

Tepa, JTE-1250-D FA, 2010, Jumbo Jigger, 2000mm Width, 1250mm Roll Diameter

Tepa, JTE-1250-D FA, 2010, Jumbo Jigger, 2000mm Width, 1250mm Roll Diameter

Description

  1. Overview
    1. Each set includes multiple components for industrial textile processing
    2. Quantity: 5 sets

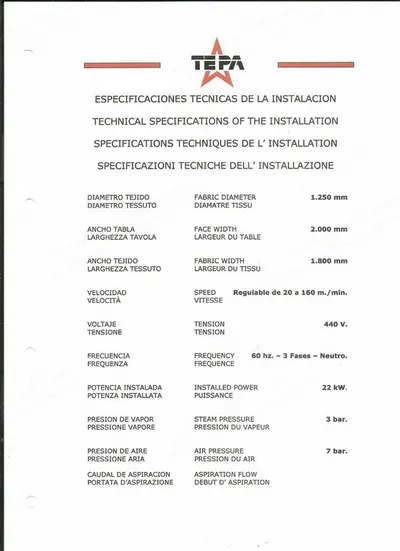

  2. Specifications
    1. Vaupel slitting: 1 unit with 2 to 6 slitting bars and multiple slitting heads per bar
    2. Heated temple bar: 1
    3. Thermo fixing unit: 1
    4. Selvedge bin: 1
    5. Cone creel: 1
    6. Droppers: as on loom
    7. Warp beams: 2
    8. Wind up: 1 to 2 cloth take-up beam
    9. Electrical supply: 3-phase, 380 to 415 volt, 50 Hz
    10. Capacity: 500 to 1425 liters
    11. Dimensions: 2000x2400mm
    12. Speed range: 20 to 160 m/min
    13. Fabric width: 2000mm
    14. Cylinder diameter: 410mm
    15. Max roll diameter: 1250mm
    16. Max fabric capacity: 2125 m
  3. Condition
    1. Status: currently running and can be inspected during production
    2. In good working condition
  4. Included
    1. Spare parts and manuals: all related spare parts, accessories and manuals available in the factory
  5. Logistics
    1. Requires 4 x 40 foot containers
