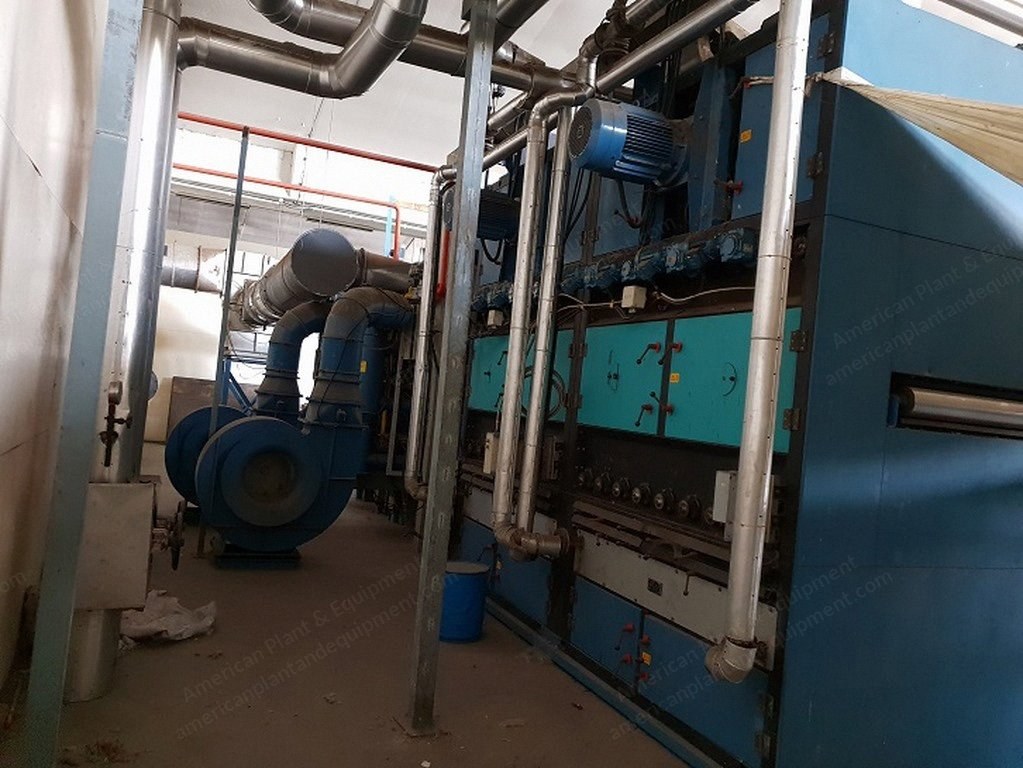

Monforts Benninger, Pad Dry Thermosol Dyeing Range, 2003, Working Width 3200mm, Roller Width 3400mm, Thermic Oil Heated

Name: Monforts Benninger, Pad Dry Thermosol Dyeing Range, 2003, Working Width 3200mm, Roller Width 3400mm, Thermic Oil Heated
Brand: Monforts Benninger
SKU: J-2324

‹ Go Back Next Product ›

Description

Overview
1. Roller width: 3400 mm
2. Working width: 3200 mm
Composition

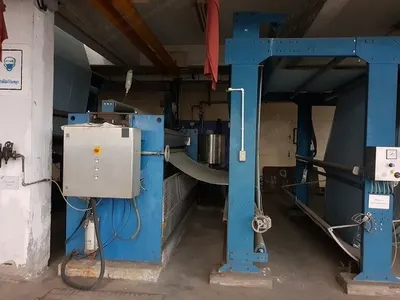

1. Fabric feeding from A-frame unwinding
2. High fabric frame with tensioner
3. E&L pneumatic cloth guiders type KF2020

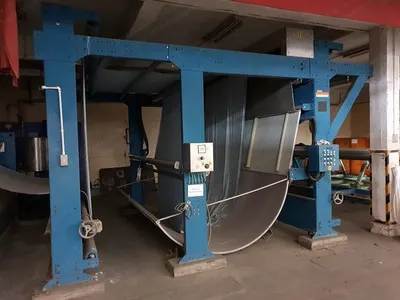

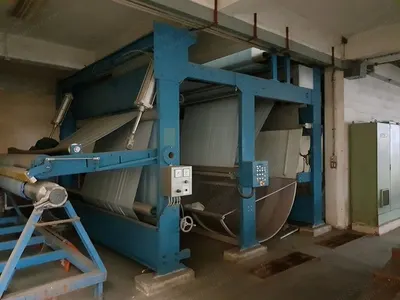

4. J-scray fabric accumulator for non-stop operation
5. Set of stainless steel guide rollers
6. E&L pneumatic cloth guiders type KF2020

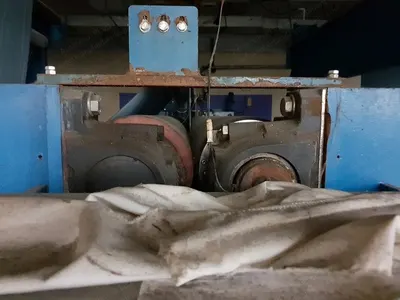

7. Benninger Bicoflex dyeing padder with swimming rolls
8. Stainless steel color beck

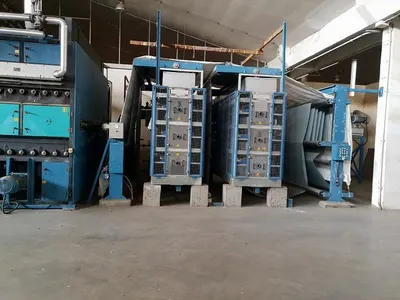

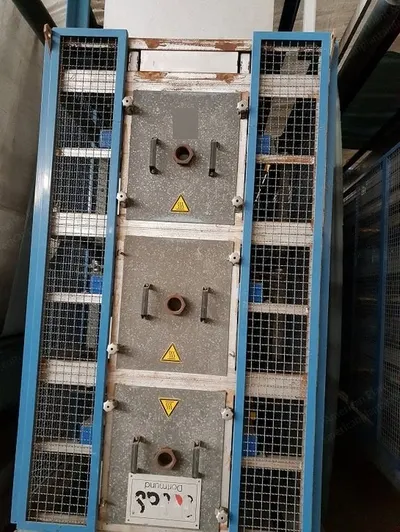

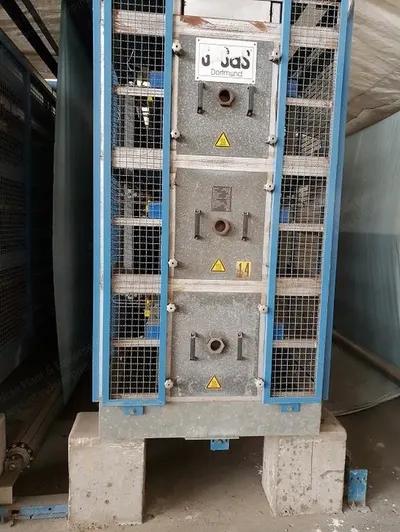

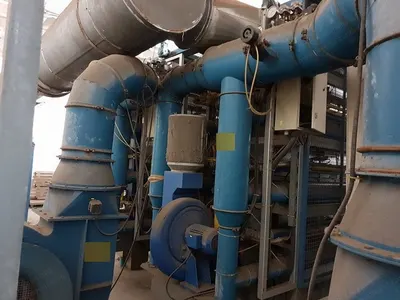

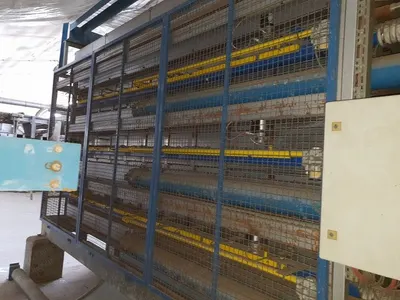

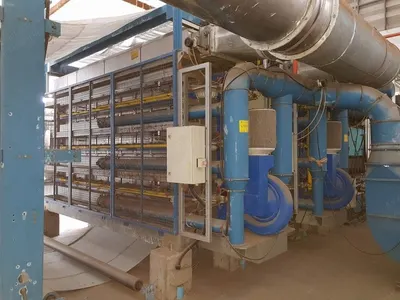

9. 2 x gas heated infra red pre-dryer, make: Gogas, Germany, each with 3 burners on each side, with complete gas burner accessories and blower fans, exhaust fans and filters, complete gas trane

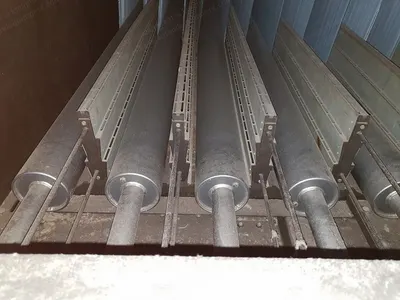

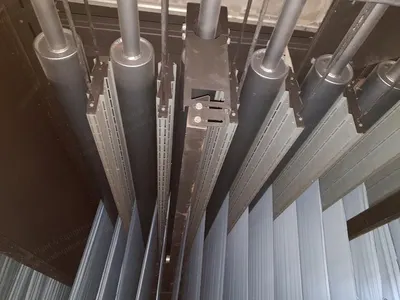

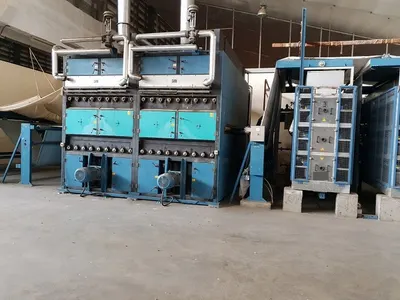

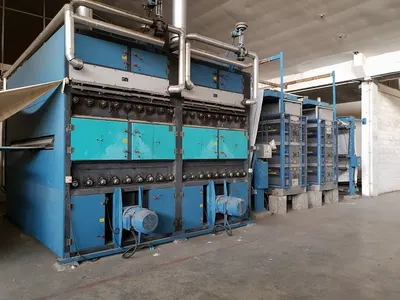

10. Monforts Thermex fixation oven, 2 chambers, thermic oil heated
11. Set of guide rollers on steel frame

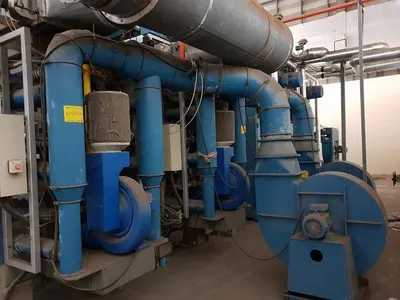

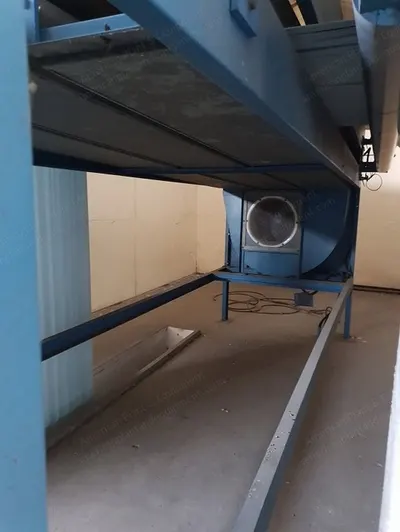

12. Suction blower unit, 3400 mm
13. Fabric exit with big pneumatic batching arms
14. Complete electric control cabinet, 380 V, 50 Hz with Siemens controls
Condition
1. In excellent condition, still erected and connected to power

Additional Specifications

Specifications

Included	['Fabric feeding from A-frame unwinding', 'High fabric frame with tensioner', 'E&L pneumatic cloth guiders type KF2020', 'J-scray fabric accumulator', 'Benninger Bicoflex dyeing padder with swimming rolls', '2 x Gas heated infra red pre-dryer (Gogas, Germany)', 'Monforts Thermax fixation oven, 2 chambers', 'Fabric exit with big pneumatic batching arms', 'Siemens controls']

Power & Electrical

Voltage	380 V

Dimensions

Width	3,400 mm
Working width	3,200 mm
