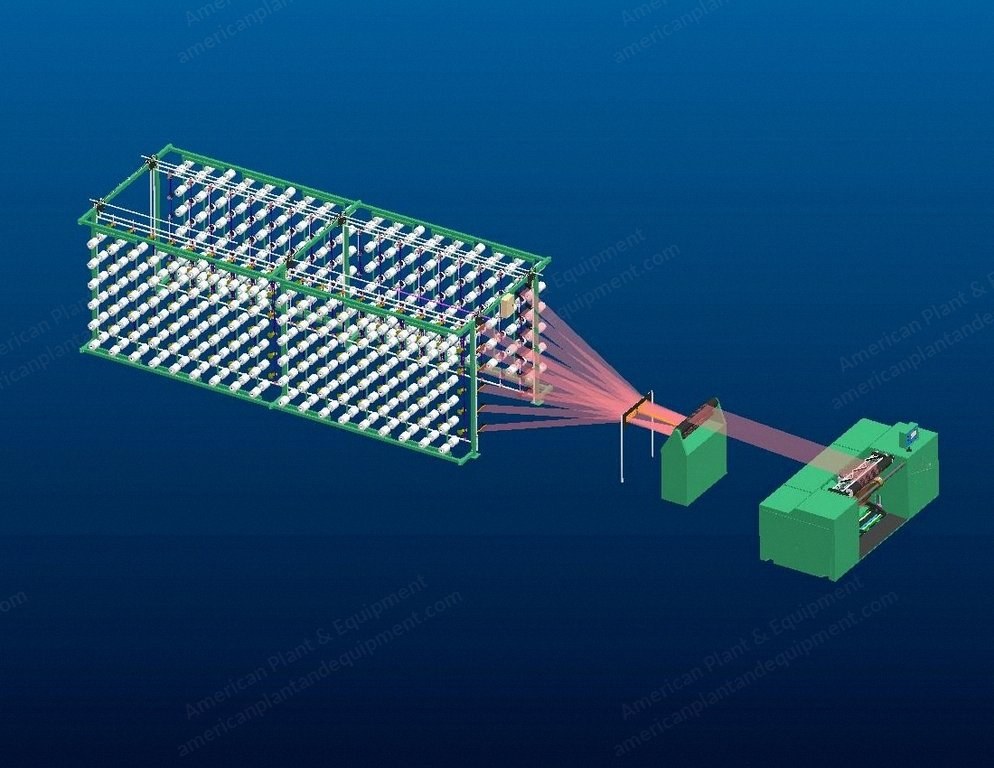

NovaStar, WS134, Computer Controlled High-Speed Double Beams Machine, 1000 m/min, 1380 Ends Creel (New)

NovaStar, WS134, Computer Controlled High-Speed Double Beams Machine, 1000 m/min, 1380 Ends Creel

Description

  1. Overview
    1. For beam sizes: 2 x 21” x 21”, 2 x 30” x 21”, 30” x 42”, 21” x 42”, 42” x 42”, 50” x 42”

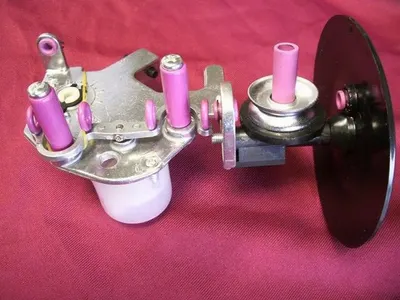

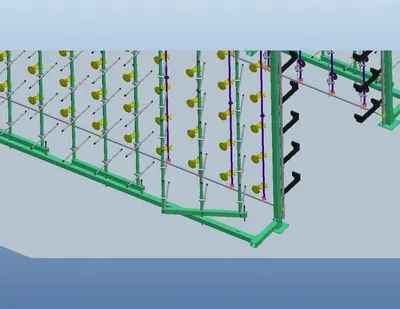

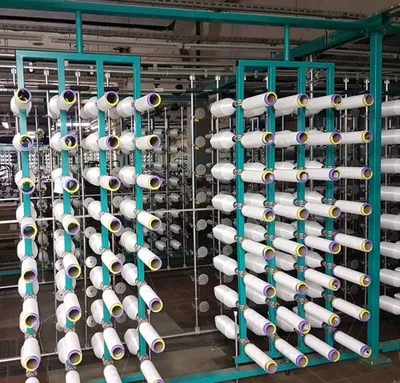

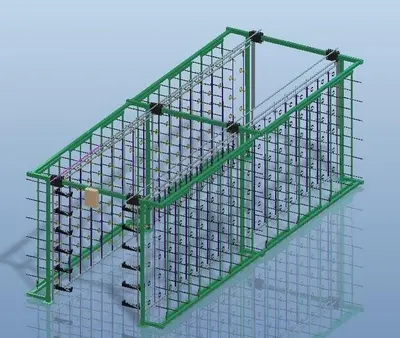

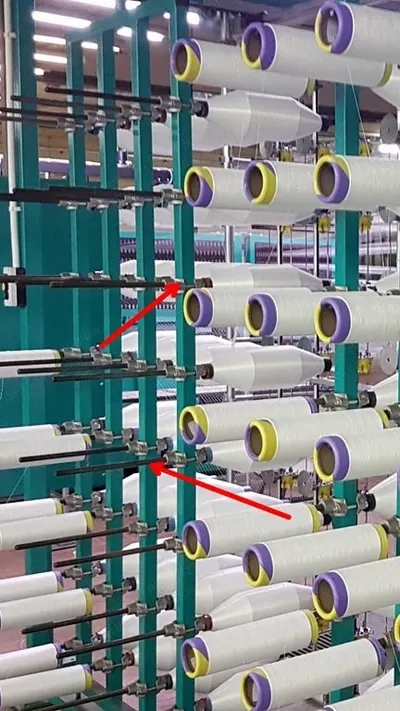

    2. Configured with warper head, NC servo roller, yarn storage, fluff detector, static eliminator, oiling device, camscan stop motion device (warp stop), eyelets board, reeds (Groz), swivel and opening yarn creel with 1380 ends and KFD tensioners
    3. Suitable for two Ø30” x 21” or Ø21” x 21” beams and one Ø30”/21” x 42” or 2 Ø50” x 42” beams
  2. Main Configuration
    1. Main motor: Siemens
    2. High-speed servo system: Mitsubishi
    3. Inverter: Emerson
    4. Test components A: Autonics
    5. Test components B: Koyo
    6. Pneumatic components: Airtac
    7. PLC: Omron
    8. Touch screen: MCGS
    9. Operating components: Schneider
    10. Terminal components: Phoenix Contact
    11. Bearings: SKF
    12. Guide needles (reeds): Groz Beckert
  3. Condition
    1. Lead time: 30 days
    2. Warranty: 1 year
  4. Specifications
    1. Line speed: 0 to 1000 m/min
    2. Brake torque: 3200 NM
    3. Max line tension: 1000 N
