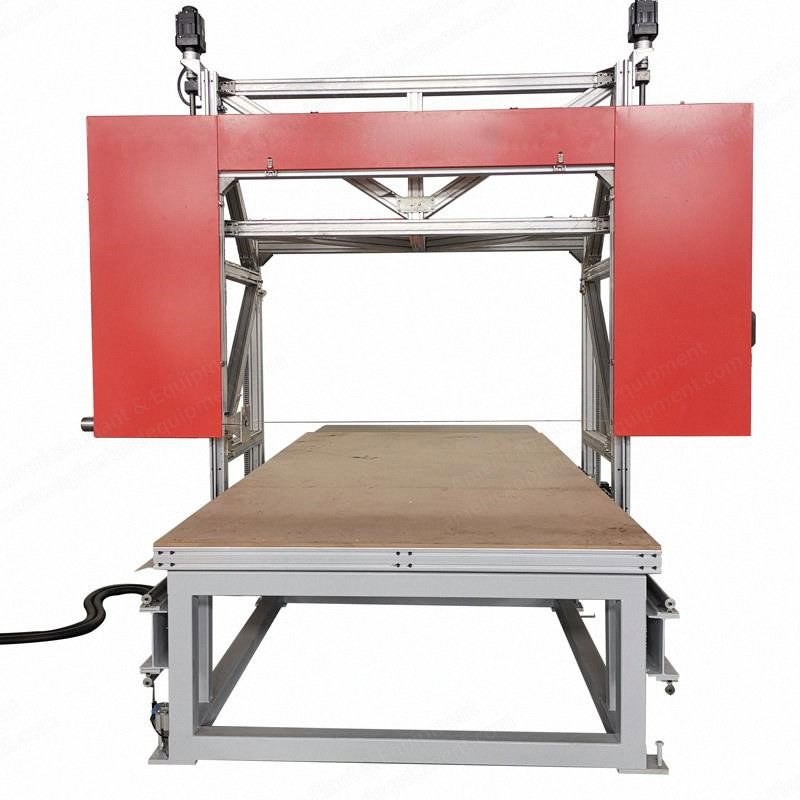

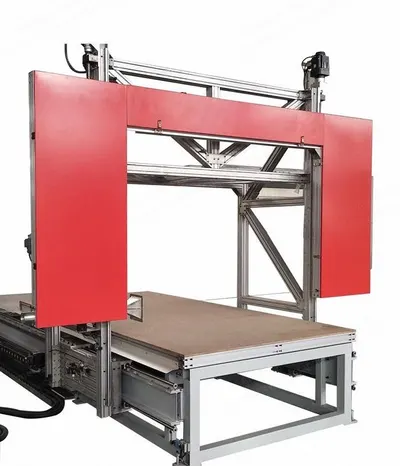

NovaStar, FN234, Horizontal Fast Wire Contour Cutter, Max Bun 3000x1800x1300mm, 8.5 kW (New)

NovaStar, FN234, Horizontal Fast Wire Contour Cutter, Max Bun 3000x1800x1300mm, 8.5 kW

Description

  1. Overview
    1. Integrated design and cut program, just design and cut
    2. Computer aided nesting automatically arranges product cuts to maximize use of material
    3. Supports numeric instruments
    4. Cut speed adjustable
    5. Pre-cut on computer to check cutting course
    6. Computer controlled conveyor belt and cutting roller runs exactly what you draw on cad software
    7. Motion control card based on cnc machining software is simple and easy to use
    8. Parameter settings feature of software sets its own processing speed, acceleration and other operations to improve efficiency while maintaining adjustable control
    9. Electronic inverter control of motors and precision straight linear guide
    10. Dust suction system included
  2. Specifications
    1. Maximum bun size: 3000mm length x 1800mm width x 1300mm height
    2. For materials: rock wool, miner wool, flexible polyurethane, rigid polyurethane, foamglass, polypropylene, honeycomb paperboard, carton
    3. Controlled with windows computer
    4. Integrated software accepts dxf and dwg file formats
    5. Horizontal cutting wire length: 8500mm
    6. Cutting wire diameter: 0.8 to 2.0mm
    7. Fly wheel diameter: 400mm
    8. Main motor: abb, 3.3kw
    9. Servo motor: 1.1 kw (quantity: 2)
    10. Servo motor: 1.5 kw (quantity: 2)
    11. Wheel speed: 4500mm
    12. Inverter: panasonic brand, for 3 kw motor
    13. Cutting speed: 0 to 10 meters per minute
    14. Precision: +/- 0.3mm
    15. Total power: 8.5 kw, 400/240 v, 50 hz (or as per customer)
    16. Gross weight: 1500 kg
    17. Overall dimensions: 4500 x 3400 x 3000mm
  3. Condition
    1. With 1 year guarantee on defective parts
  4. Included
    1. Main machine
    2. Control panel
    3. Software with running key
    4. 5 spare cutting wires
    5. 1 limit switch
