NovaStar, FL119, Digital Spray Glue and Compression Line, New, Mitsubishi PLC, 4-Head S-Pattern Spraying, 2-Head Side Spraying (New)

NovaStar, FL119, Digital Spray Glue and Compression Line, New, Mitsubishi PLC, 4-Head S-Pattern Spraying, 2-Head Side Spraying

Description

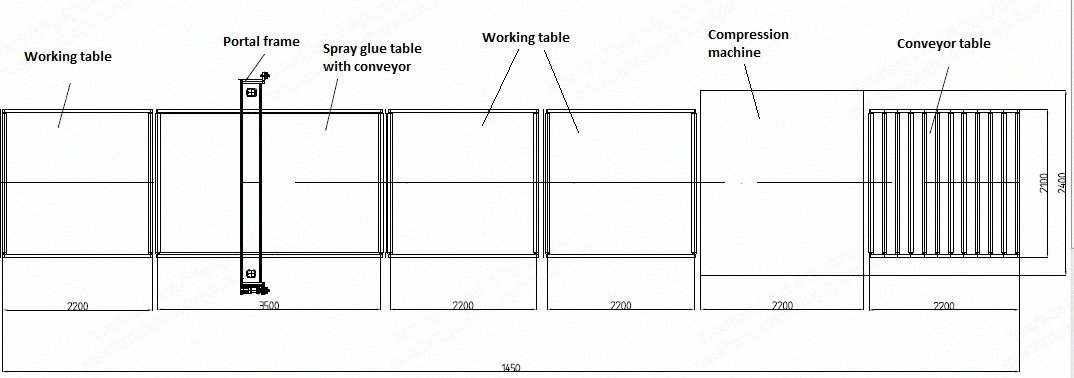

  1. Overview
    1. Complete line for industrial panel processing
    2. Full digital control system with Mitsubishi plc and servo motor
    3. Manufactured in Spain
  2. Working table with conveyor belt
    1. Dimensions: 2200 x 2250 x 860 mm
  3. Spray glue table with conveyor belt
    1. Dimensions: 2200 x 2250 x 860 mm
  4. Portal frame
    1. Made of aluminum alloy
    2. Dimensions: 500 x 3500 x 1800 mm
  5. Working table
    1. Dimensions: 2200 x 2250 x 860 mm
  6. Compression machine
    1. Dimensions: 2400 x 2200 x 1600 mm
  7. Conveyor table with rollers
    1. Dimensions: 2200 x 2000 x 860 mm
  8. Spray gluing systems
    1. Two sets included
    2. Set 1: 20 kg with 4 heads for “s” pattern glue spraying in the middle
    3. Set 2: 10 kg with 2 kg for glue spraying on all four sides
