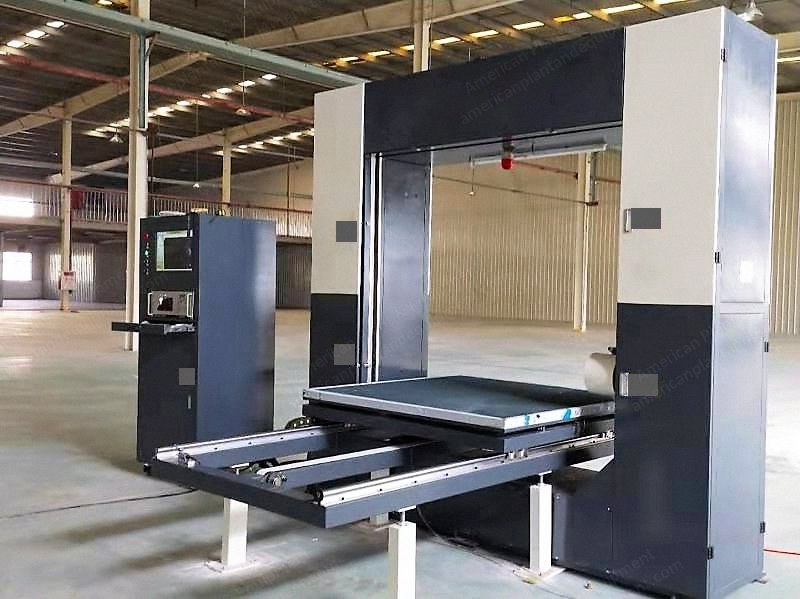

NovaStar, FN236, CNC Horizontal Fast Wire Foam Cutting Machine, Max Bun Size 3000x2000x1300mm, 9 kW (New)

NovaStar, FN236, CNC Horizontal Fast Wire Foam Cutting Machine, Max Bun Size 3000x2000x1300mm, 9 kW

Description

  1. Overview
    1. Maximum bun size: 3000 mm length x 2000 mm width x 1300 mm height
    2. Maximum bun length: 3000 mm
    3. Maximum bun width: 2000 mm
    4. Maximum bun height: 1300 mm
    5. Wire speed: 0 to 10 meters per minute
    6. Compressed air: 6 bar
    7. Blade break protection system included
    8. Diagnostics system included
  2. Electrical Specifications
    1. Voltage: 220/380/415 volts, 50 or 60 Hz, 3-phase (specify when ordering)
    2. Total power: 9 kW
    3. Controlled by industrial PC running Windows 7
    4. Profiler software included, accepts CAD/DXF/DWG file formats
  3. Cutting Specifications
    1. Cutting wire diameter: 1.3 to 1.8 mm
    2. Wheel diameter: 300 mm
    3. Wheel speed: 2816 rpm
    4. Main motor: Siemens
    5. Inverter: Mitsubishi
  4. Condition and Warranty
    1. With one year guarantee on defective parts
    2. Lead time: 35 days from receipt of deposit
