Cummins, QSK60, Natural Gas Generator Set, 1300 kW, 60 Hz, 480 V

Cummins, QSK60, Natural Gas Generator Set, 1300 kW, 60 Hz, 480 V

Description

  1. Overview
    1. Natural gas generator sets
    2. 1300 kW / 1625 kva continuous at 60 Hz
    3. 480 volts
    4. 1800 rpm
    5. Year: 2009 to 2012
    6. Hours from 21,400 to 36,600 since new

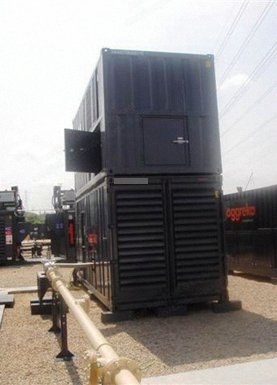

    7. ISO 20ft containerized
    8. Can be converted to 50 Hz – 1100 kW / 1375 kva continuous, 50 Hz, 400 volts, 1500 rpm
  2. Engine Specifications
    1. Type: Natural gas, spark-ignition
    2. Configuration: 16 cylinder, 60° v-type, 4 valves per cylinder
    3. Bore x stroke: 159 mm x 190 mm
    4. Capacity: 60.3 liters
    5. Bmep: 16 bar
    6. Aspiration: Turbocharged and low temperature after cooled
    7. 1800 rpm
    8. Gas supply pressure: 0.2 to 6 bar
    9. Minimum methane index: 60 for 50 Hz, 69 for 60 Hz
    10. NOx mg/nm³: 489 to 473
  3. Generator and Control

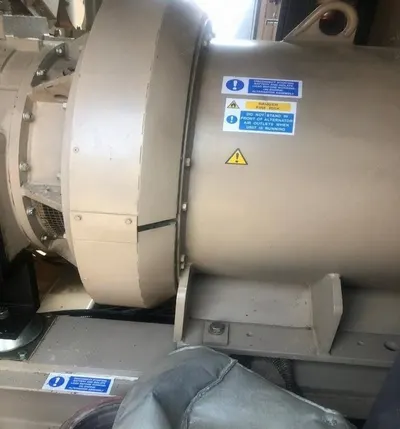

    1. Generator models: Stamford PE734C2 or Leroy Somer LSA50.2VL10

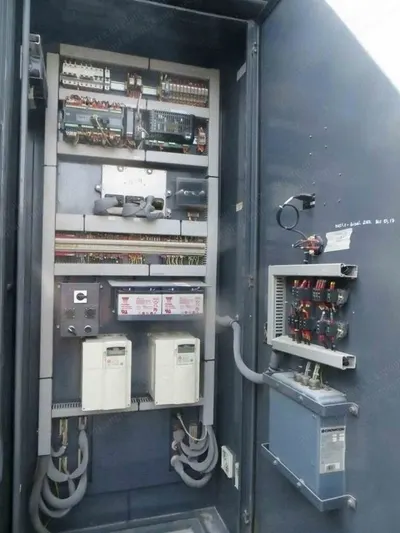

    2. Control: Generator module DEIF
    3. Breaker: 2500 amp
  4. Fuel Consumption at 60 Hz
    1. Gas energy input (LHV) ISO 3046/1 at 100%: 3959 kW
    2. Gas energy input (LHV) ISO 3046/1 at 90%: 3602 kW
    3. Gas energy input (LHV) ISO 3046/1 at 75%: 3064 kW
    4. Gas energy input (LHV) ISO 3046/1 at 50%: 2164 kW
  5. List of Equipment
    1. Item 1: Year 2009, 1375 kva, model QSK60G, hours 21,354
    2. Item 2: Year 2009, 1375 kva, model QSK60G, hours 21,476
    3. Item 3: Year 2011, 1375 kva, model QSK60G, hours 23,803
    4. Item 4: Year 2011, 1375 kva, model QSK60G, hours 24,432
    5. Item 5: Year 2011, 1375 kva, model QSK60G, hours 25,685
    6. Item 6: Year 2011, 1375 kva, model QSK60G, hours 25,857
    7. Item 7: Year 2011, 1375 kva, model QSK60G, hours 26,104
    8. Item 8: Year 2011, 1375 kva, model QSK60G, hours 26,486
    9. Item 9: Year 2011, 1375 kva, model QSK60G, hours 27,506
    10. Item 10: Year 2011, 1375 kva, model QSK60G, hours 29,533
    11. Item 11: Year 2012, 1375 kva, model QSK60G, hours 33,378
    12. Item 12: Year 2011, 1375 kva, model QSK60G, hours 33,400
    13. Item 13: Year 2011, 1375 kva, model QSK60G, hours 33,448
    14. Item 14: Year 2011, 1375 kva, model QSK60G, hours 33,647
    15. Item 15: Year 2011, 1375 kva, model QSK60G, hours 33,656
    16. Item 16: Year 2011, 1375 kva, model QSK60G, hours 33,696
    17. Item 17: Year 2011, 1375 kva, model QSK60G, hours 34,574
    18. Item 18: Year 2011, 1375 kva, model QSK60G, hours 34,685
    19. Item 19: Year 2010, 1375 kva, model QSK60G, hours 34,689
    20. Item 20: Year 2010, 1375 kva, model QSK60G, hours 36,531
