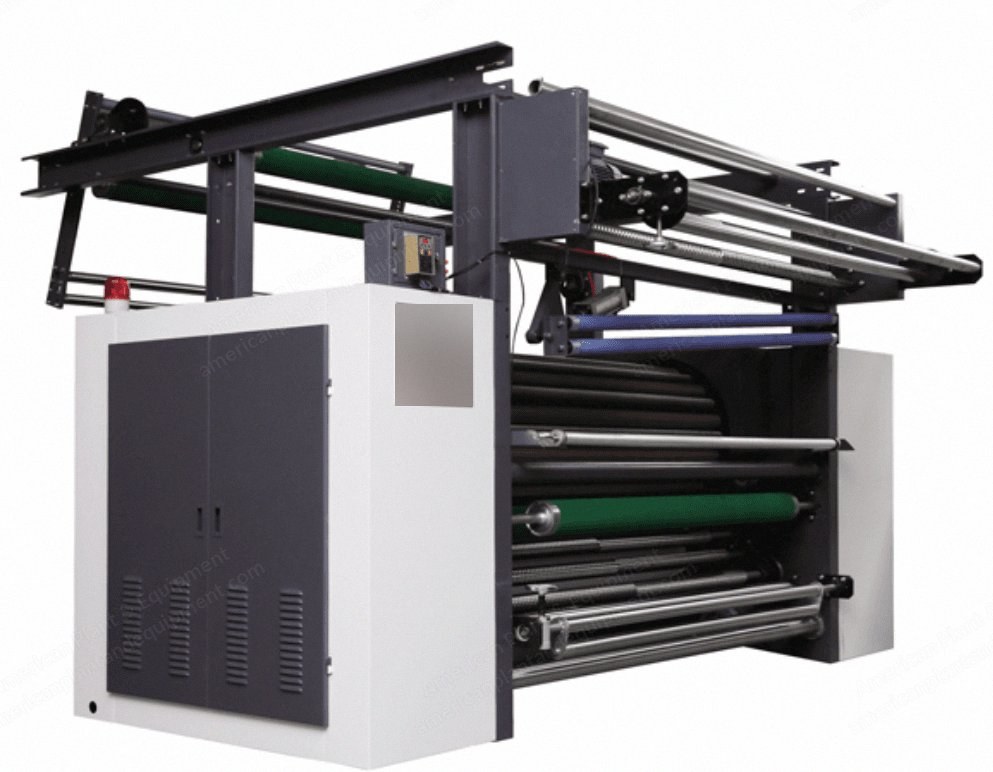

NovaStar, DG326, New, 2000mm Working Width, 24 Rollers, Gear Driven (New)

NovaStar, DG326, New, 2000mm Working Width, 24 Rollers, Gear Driven

Description

  1. Overview
    1. Working width: 2000 mm
    2. Touch screen controls
    3. Drive mode: gear driven
    4. Drum diameter: Ø 850 mm
    5. Drum speed: 90 to 120 rpm
    6. Raising roller diameter: Ø 60 mm
    7. 24 raising rollers
    8. Production speed: 10 to 26 meters per minute, adjustable
    9. Energy consumption: 10 kW
    10. Installed power: 16.65 kW
    11. Overall dimensions: 4000 x 4000 x 3050 mm
    12. Speed controlled by multiple inverters simultaneously
    13. Fabric, tension, cylinder, and raising rollers all have variable speeds
    14. Needle roller uses gear transmission, large transmission torque for low noise and stability
    15. Motor gear transmission with single frequency control motor
    16. PLC controller with 500 technical parameter storage
    17. Zero point start, automatic fabric guiding system, diagnostic system
  2. Configuration
    1. Draught fan – 1 at 5.5 kW
    2. Spare needle rollers: 2
    3. Danfoss inverter
    4. Delta PLC, touch screen
    5. Teethed gear
  3. Equipment Components
    1. Fabric feeding system:
      1. Fabric tension frame (1 set)
      2. Fabric spreading rollers (3 pcs)
      3. Front traction rollers (2 pcs)
      4. Fabric guiding rollers
      5. C centering device (optional)
    2. Raising systems:
      1. 12 beard needle rollers
      2. 12 inverse beard needle rollers
      3. Drum spindle device (1 set)
      4. 2 brushing rollers and the corresponding bridge transmission
      5. Chain transmission device
      6. Belt type transmission device
    3. Fabric draw-out system:
      1. 2 rear traction rollers
      2. Guiding rollers
      3. Fabric swinging frame (1 set)
    4. Electric control system:
      1. Chint circuit breaker
      2. Schneider AC contactor
      3. Danfoss frequency inverter
      4. Delta PLC
      5. Delta touch screen
      6. Yangtze river button switch
    5. Power system:
      1. Primary motor (one 11 kW induction motor, two 7.5 kW induction motors)
      2. Fabric spreading motor (one 1.5 kW induction motor)
      3. Front traction reducer (one 1.5 kW gear reducer)
      4. Rear traction reducer (2.2 kW gear reducer)
      5. Fabric swinging reducer (1.1 kW turbo reducer)
    6. Dust removal system:
      1. Dust removal fan (11 kW exhaust centrifugal ventilation machine)
      2. Dust removal tube (Φ400) (2 pcs)
      3. Dust ventilator set (1 set)
    7. Fabric driving stand:
      1. Based on the ways the fabric got into the machine, there are front in and front out, front in and back out, and combined machines
      2. Machine will be customized based on customer’s requirement
  4. Included Spare Parts
    1. 2 spare needle rollers
    2. 1 needle roller shell
    3. 2 sets of 2 belt wheels
    4. 1 set of tools
  5. Lead Time
    1. Approximately 20 days from receipt of deposit
