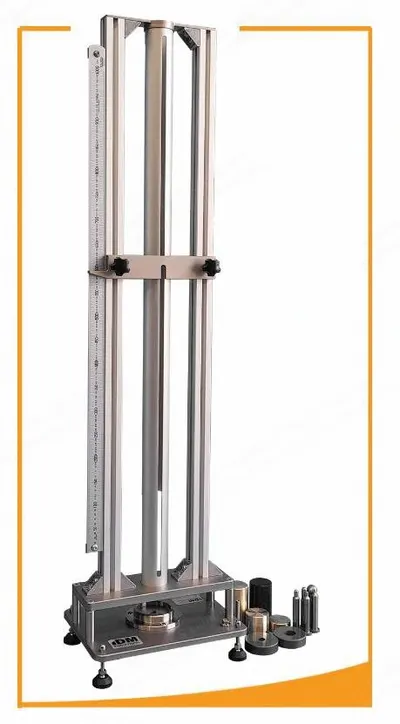

IDM, I0007, 2020, DuPont Impact Tester, 50-1000mm Falling Height, 1000g Falling Weight (New)

IDM, I0007, 2020, DuPont Impact Tester, 50-1000mm Falling Height, 1000g Falling Weight

Description

  1. Overview
    1. Designed to test the endurance of coated material when impacted by a falling weight at specified points.
    2. The purpose of the test is to see if test specimens can resist the effect of rapid impact testing.
    3. The principle of the test is that a coated test specimen is impacted by a falling weight at a fixed height, checking the damage or deformation of the test specimen.
    4. Can also be used on paintings with coated materials, using various impact heads or needles to drop freely onto the test specimen from a certain height.
    5. The test is performed three times on the same test specimen, which is then left to stand for one hour before checking for any cracking on the painting.
  2. Applications
    1. Coatings
    2. Plastics
  3. Features
    1. Impact needle: 12.7 mm diameter x 100 mm height
    2. Falling height: 50 mm – 1,000 mm
    3. Falling weight: 1000 g
    4. Die: 16.3 mm diameter
  4. Benefits
    1. Easy to use
    2. Fast results
    3. Accurate
  5. Standards
    1. ASTM D 2794
    2. JIS K5400
    3. ISO 6272
    4. CNS 10756
  6. Options
    1. Falling weights: 300 g, 500 g, 2,000 g
    2. Impact needles: R1/16”, R1/8”, R3/16”, R1/4”, R1/2” (requires die 27 mm diameter)

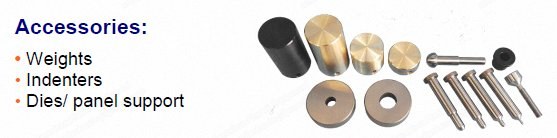

  7. Accessories
    1. Weights
    2. Indenters
    3. Dies/panel support
  8. Dimensions
    1. Height: 1,340 mm
    2. Width: 350 mm
    3. Depth: 250 mm
    4. Weight: 30 kg
