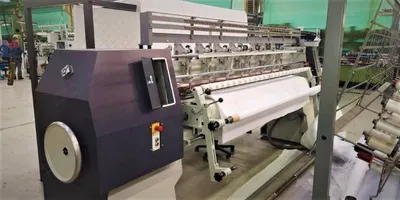

Dahmen, Ecomat, 2000, 68"/94" Working Width, Lock-Stitch Shuttle Technology, 2/3 Needle Bars

Dahmen, Ecomat, 2000, 68"/94" Working Width, Lock-Stitch Shuttle Technology, 2/3 Needle Bars

Description

  1. Overview
    1. Weight: 2000 kg
    2. Power: 400 volts, 50 Hz
    3. Windows-based, multi-lingual software for external programming station
  2. Specifications
    1. Average quilting speed: 500 stitches per minute depending on pattern/material
    2. Distance between each needle bar: 3 in
    3. Needle spacing: 1 in
    4. Shuttle size: 11 for maximum bobbin size
    5. Press plate: passive
    6. Maximum fabric roll weight: 80 kg per roll
    7. Needle bar width: 94 in
    8. 2 needle bars
    9. Working width: 102 in maximum
    10. Fabric width: 102 in maximum
    11. Maximum carriage travel: 8 in
    12. Available needle positions: 188/282
    13. Max fabric width: 74" (1880 mm) / 102" (2591 mm)
    14. Needle bar width: 68" (1727 mm) / 94" (2388 mm)
    15. Max quilting range: 74" (1880 mm) / 102" (2591 mm)
