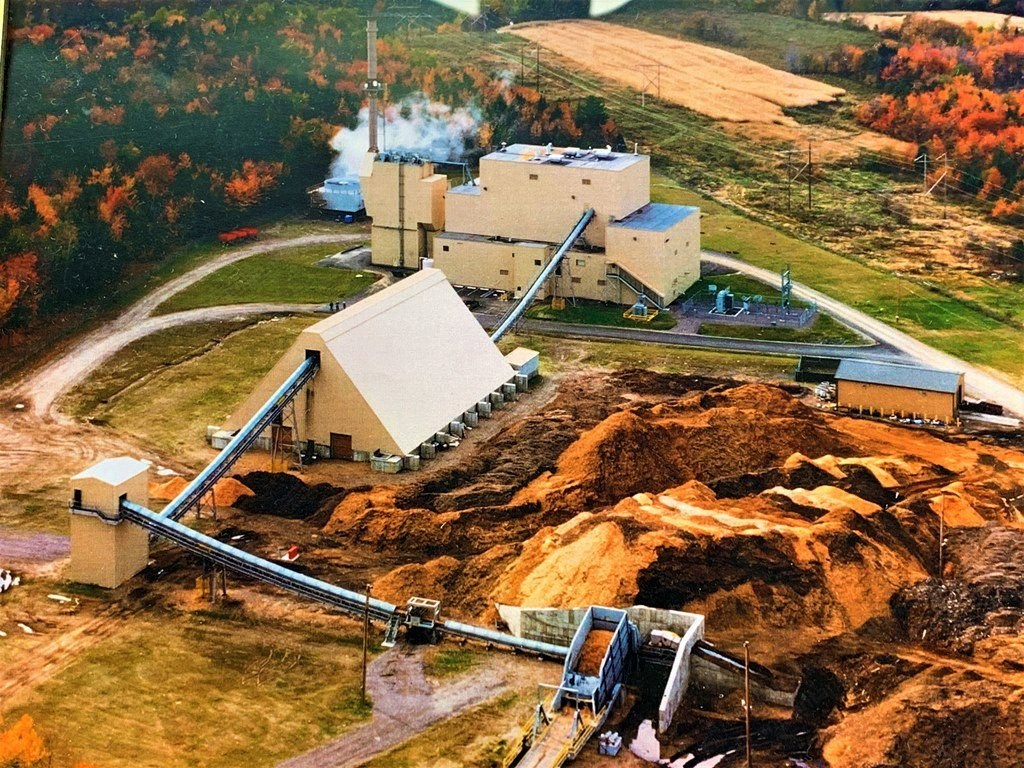

Description Overview Complete wood chips burning power plant Plant started in 1992, shut down in 2013 but maintained to start up again Boiler Specifications Make: Riley Model: VR 170,000 pounds per hour continuous steam 1280 psig at 955° f Boiler is top supported with Detroit Hydrograte stoker and water-cooled vibrating grate Can burn up to 50% moisture wood chips 4326 btu/lb 59,902 lbs per hour fuel With feed water temperature 402° f Steam Turbine Generator General Electric steam turbine generator 19700 kW 13-stage condensing unit with four uncontrolled extractions, 5596 rpm Turbine and Lufkin gear box mounted on one skid driving GE 21890 kva 1800 rpm, 13800 volts, 3-phase 60 Hz TEWAC brushless exciter generator Condenser and Cooling Tower Condenser: Graham surface condenser, 2. HgA, condensing 126,000 pounds per hour steam, 19,770 square feet, 316SS tubes Cooling tower: Thermal Dynamic Towers 22,000 gpm, induced draft 2 cell Emissions Control and Substation ESP Belco Technologies BT-30 Substation 15.75/21 MVA, 34.5 kV Grdy/13.8 kV Δ Condition and Logistics Boiler still installed Will take around 100 loads to ship SpecificationsFuel type: Wood Chip Fired
