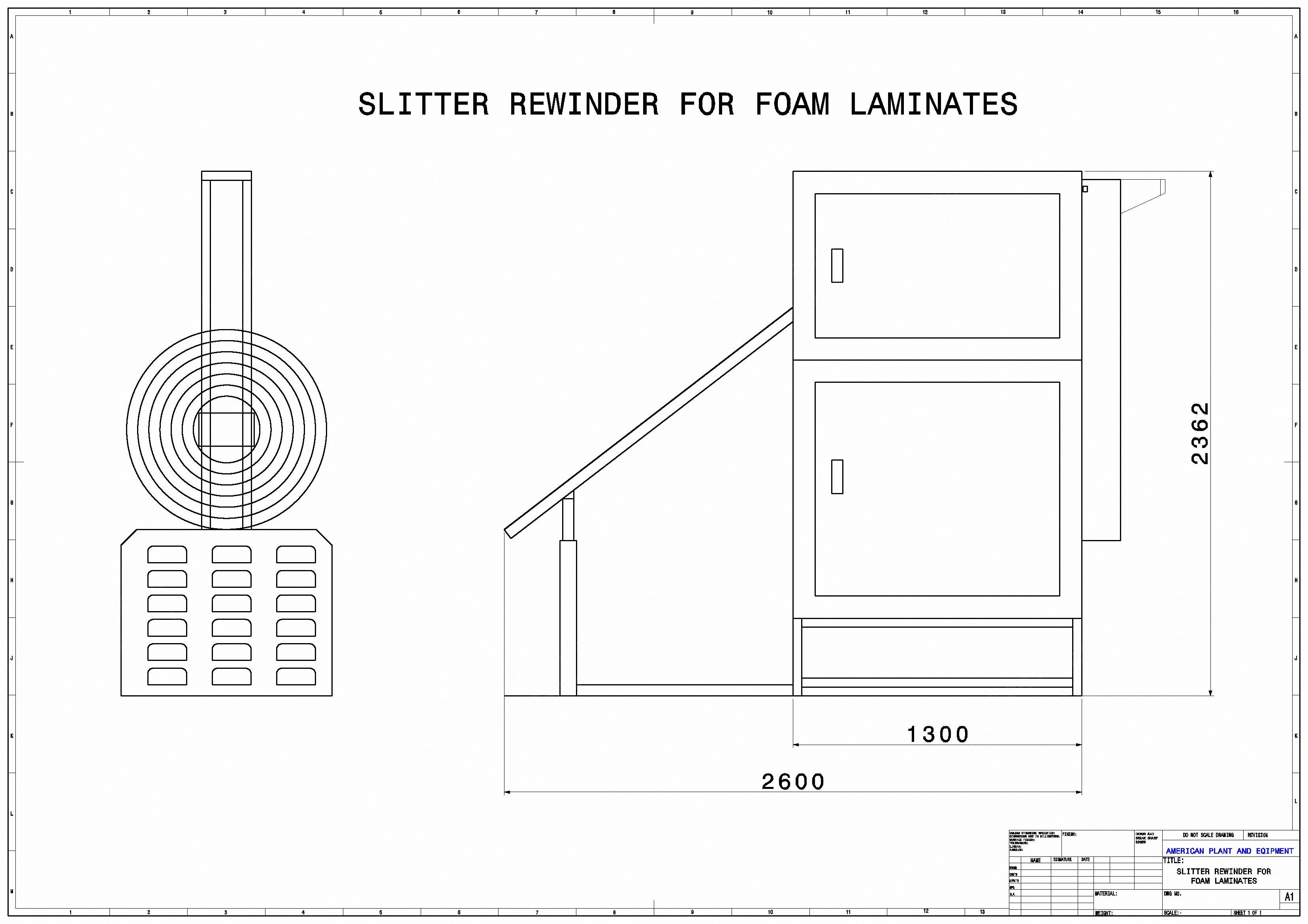

NovaStar, SR154, New, Slitter Rewinder for Laminated Foam, 2600mm Max. Cutting Width, 13 Slitter Blades (New)

NovaStar, SR154, New, Slitter Rewinder for Laminated Foam, 2600mm Max. Cutting Width, 13 Slitter Blades

Description

  1. Overview
    1. Two modes of operation: photoelectric sensor-driven and encoder mode
    2. Double-blade design guarantees edges are cut precisely
    3. With transversal cutting
    4. Slitter function (13 slitter blades)
    5. Operated with 7-inch touchscreen
    6. With 2 roll surface winder/rewinding unit
  2. Specifications
    1. Cutting length: 600 to 2100 mm or unlimited
    2. Cutting width: 80 to 2600 mm
    3. Thickness: ≤ 50 mm
    4. Speed: 10 meters per minute
    5. Power: 3.2 kW
    6. Air pressure: 0.4 to 0.8 Mpa
    7. Voltage: 220 volts / 60 Hz, 3-phase
    8. Weight: 1150 kg
    9. Dimensions: 3500 x 1150 x 2300 mm
  3. Shipping
    1. Requires one 20 foot container to ship
