IDM, CellFlex, Digital Foam Resilience Tester, ASTM D3574, ISO 8307

IDM, CellFlex, Digital Foam Resilience Tester, ASTM D3574, ISO 8307

Description

  1. Overview

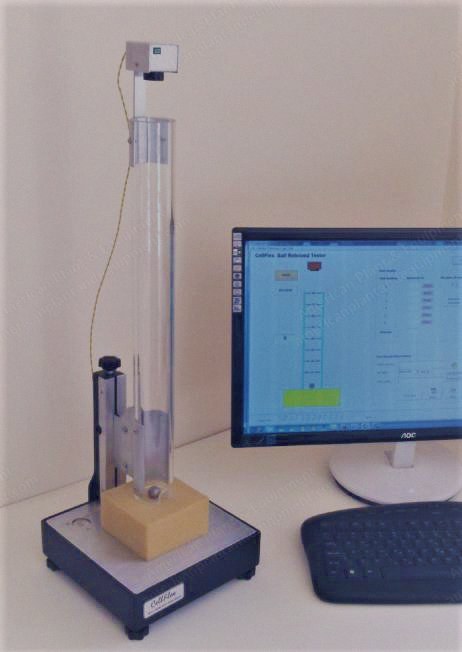

    1. Cellflex foam resilience tester – digital (IDM model Cellflex)
    2. Determines the resilience of flexible cellular polyurethane
    3. Cellflex is a computerised version of the standard ball rebound resilience test
    4. Ball rebound value is expressed as a percentage of drop height
    5. The rebound value gives an indication of the resilience or elasticity of the foam sample
    6. Higher values correspond with greater resilience of the foam
    7. Uses an electronic sensor to detect the impact of the steel ball on the sample
    8. Built-in electronics measure time interval between the first impact of the ball and the second impact after the rebound
    9. Cellflex software calculates rebound height from this measured time interval and displays the rebound value on the computer screen
  2. Included
    1. Cellflex unit
    2. Software on CD ROM (compatible with Windows XP, Windows 7)
    3. USB and mains power connecting leads
    4. 2 x 16 mm diameter chrome steel balls
    5. Magnetic rod for ball retrieval
    6. Instruction manual
  3. Standards
    1. ASTM D3574 - Test H
    2. ISO 8307
    3. DIN EN ISO 8307S
  4. Packaged Dimensions
    1. Approximate packaged details: 7 kgs @ L 400 mm x W 400 mm x H 1100 mm
