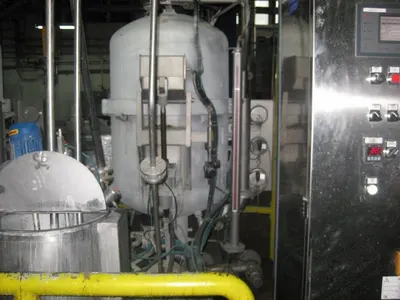

Cubotex, HT Dyeing Machine, 2012, 50 kg Capacity, 3 Spindles, 7.5 kW

Description

Overview

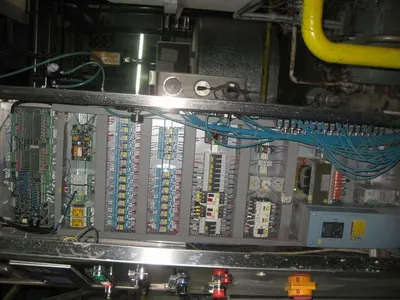

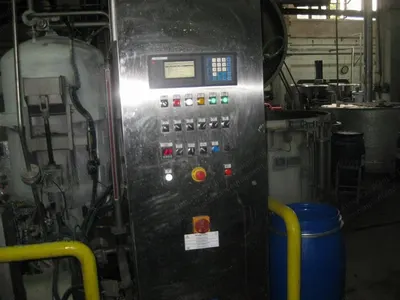

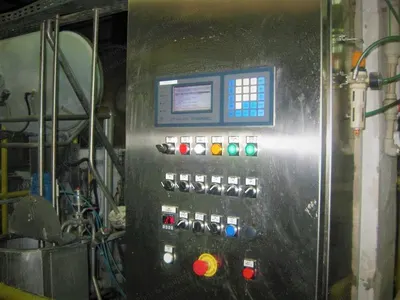

1. Termoelettronica controller, model CT 301-LAN
2. Capacity: 50 kg
3. Year: 2012, 2014

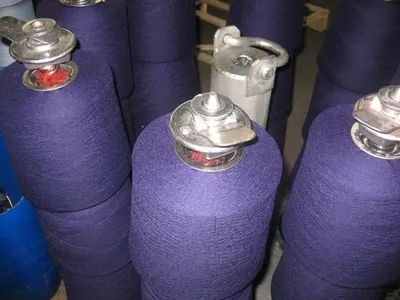

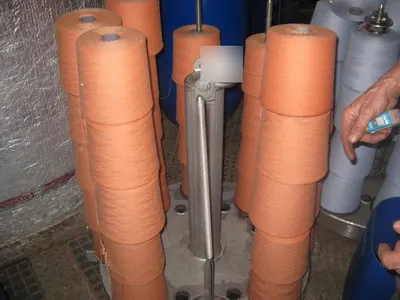

4. 3 spindles, 12 bobbins per spindle
5. 1.2 kg per bobbin x 12 = 19.2 kg per spindle x 3 spindles = 57.6 kg

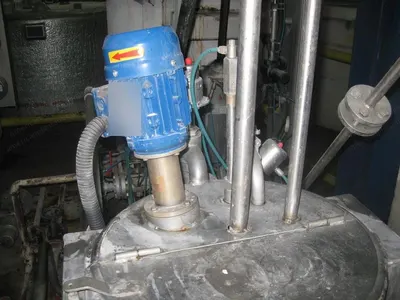

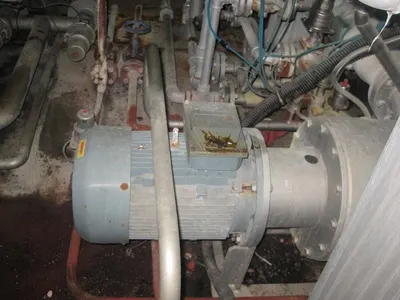

6. Main motor capacity: 7.5 kW
Specifications

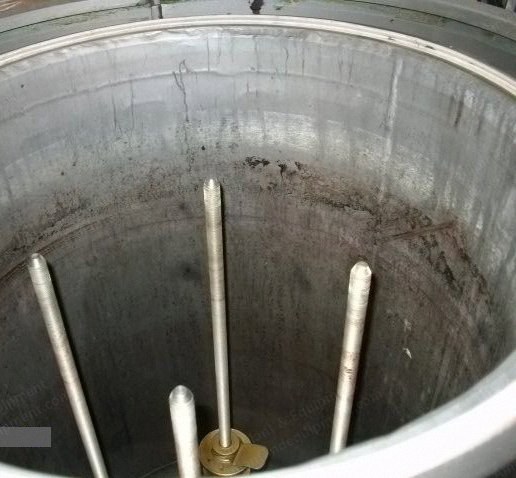

1. Outside dimension of tank: 900 mm diameter (with middle collar 1000 mm) and 1500 mm height + lower thinner part of 600 mm = overall height 2100 mm + valves on top

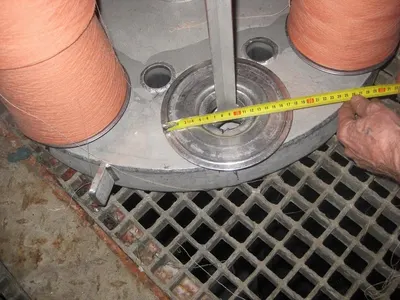

2. 8 spades

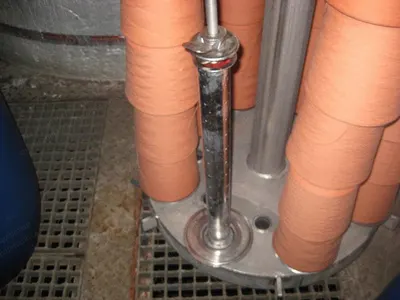

3. Bobbin length: 170 mm but they joint each other so 6 x 150 mm = 900 mm height of yarn, which means spade is 1 meter long
4. Plus bottom of carrying basket and clamp of top of spades gives total feasible to go inside dryer collar = see middle of dryer tank on photo, here it opens
Condition
1. Status: currently running

Dimensions	900mm diameter x 2100mm height

Main Motor Capacity	7.5 kw

Spindles	3
