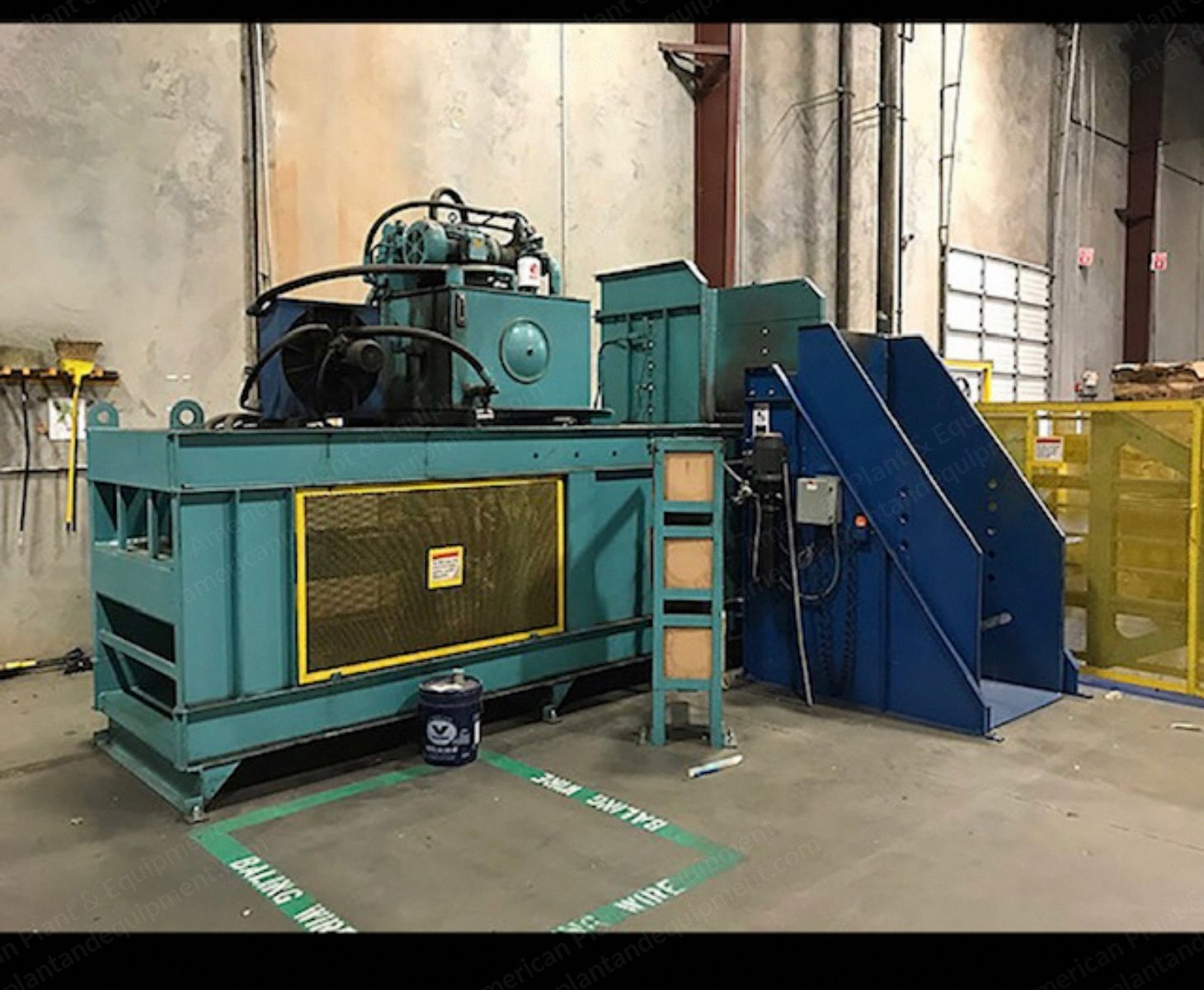

IPS, AT-752-20R, 2007, Horizontal Baler with Auto-Tie, 20 HP, 43x43 inch Bale Size

Description

  1. Overview
    1. With auto-tie, wire size 12 to 14 gauge on spools
    2. Year: 2007, delivered in 2008
    3. Hydraulic
  2. Hydraulic Specifications
    1. Main pumps: 42 gpm total flow (regen system)
    2. System pressure: 3000 psi
    3. Main cylinder: 7” bore, 74” stroke, 4” rod
    4. Tension cylinder: 6” bore
    5. Wire inserter cylinder: 2.5” bore
    6. Wire twister: hydraulic motor
    7. Total force: 115,400 lbs
    8. Ram face pressure: 63 psi
    9. Oil reservoir: 125 gallon capacity
    10. Filtration: 10 micron replacement element filter
    11. Auto-tier: five-wire hydraulic tier for up to 10 gauge black annealed wire
  3. Electrical Specifications
    1. Main motor: 20 hp, 460 volt, 3-phase, TEFC, high efficiency
    2. Oil cooler: 1 hp, 460 volt, 3-phase
    3. Controls: programmable controller
    4. Photocell: infrared type
  4. Structural Specifications
    1. Length: 29’, 8”
    2. Width: 14’, 10” (at tier station)
    3. Charging hopper height: 96”
    4. Charge box opening: 41” wide x 60” long
    5. Shear blade: high abrasion resistant alloy plate
    6. Platen assembly moves on high abrasion resistant alloy plate
    7. Bottom of platen is high resistant alloy plate
    8. The replaceable liners are plug welded to the baler and can be replaced as needed
    9. Shipping weight: 12 tons, approximately
  5. Performance Specifications
    1. Bale size, expanded: 43” wide x 43” height x variable length
    2. Bale volume @ 62 inches long: 66.3 cubic feet expanded (approximate)
    3. Cycle time: 20 seconds (no load)
    4. Capacity: 11,400 cubic feet per hour (no load)
    5. Material performance table:
      1. High grade paper: bale weight up to 1650 lb, density up to 25 lb per cubic foot, loose infeed density estimated 3.5 lb per cubic foot, tons per hour @65% loading efficiency up to 12
      2. Conditioned news: bale weight up to 1600 lb, density up to 24 lb per cubic foot, loose infeed density estimated 3.0 lb per cubic foot, tons per hour @65% loading efficiency up to 10
      3. OCC: bale weight up to 1525 lb, density up to 23 lb per cubic foot, loose infeed density estimated 2.5 lb per cubic foot, tons per hour @65% loading efficiency up to 9
      4. OCC open boxes: bale weight up to 1450 lb, density up to 22 lb per cubic foot, loose infeed density.5 lb per cubic foot, tons per hour @65% loading efficiency up to 1.8
    6. *Performance rates, bale weights, and bale densities are subject to moisture content, material pre-bale densities, feed rates and other variables in baling
  6. Condition and Included Items
    1. Hopper access door with safety interlock
    2. Across the line starting

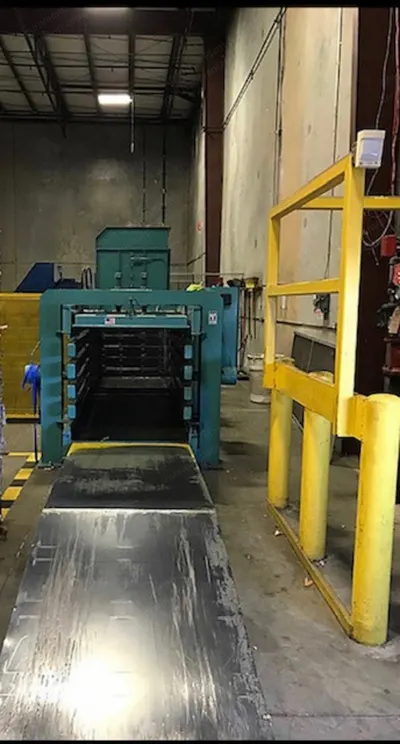

    3. Bale runout table, 6 feet long
  7. Specifications
    1. Weight: 10886
