NovaStar, TF101, Automatic Tufting Machine, 1500x1500mm Working Area, 2000 RPM (New)

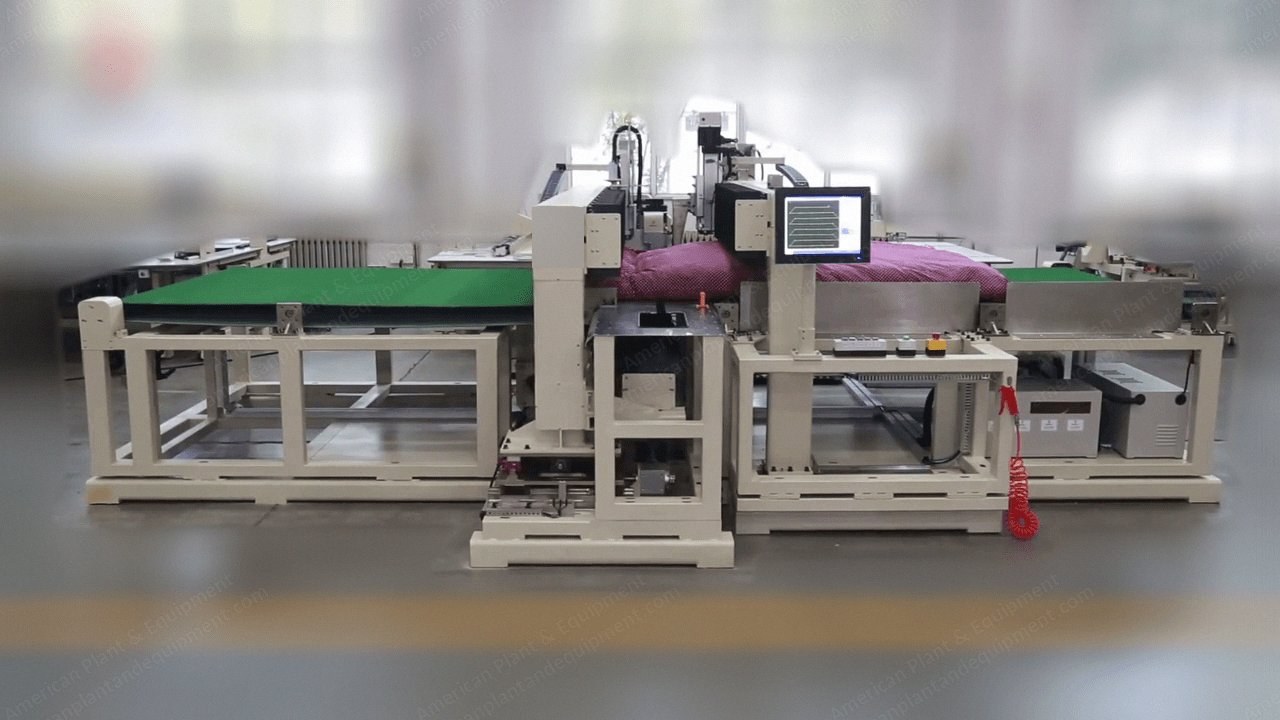

NovaStar, TF101, Automatic Tufting Machine, 1500x1500mm Working Area, 2000 RPM

Description

  1. Overview
    1. Video available upon request
    2. Servo motor driven main shaft
    3. Servo motor driven x and y positioning
    4. With synchronized presser foot for hand-stitching
    5. Pneumatic thread trimmer
    6. Rotary hook type: 2 size Japanese
    7. Template fixed in place by pneumatic device
    8. Emergency stop function
    9. Price does not include template
    10. Includes spare parts box
  2. Specifications
    1. Sewfield dimensions: 1500 x 1500 mm (x x y)
    2. Maximum sewing speed: 1000 rpm
    3. Tuft maximum diameter: 30 mm
    4. Tuft patterns possible: triangular, straight line, circular, + (cross)
    5. Air pressure required: 0.6 mpa
    6. Controls: 5” touchscreen menu
    7. Stitch step: 0.1 mm to 25.5 mm
    8. With 32 mb internal storage capacity
    9. Voltage: 480V 3 Phase
    10. Capacity: 2000 RPM, approx 5 seconds per tuft
