Demand Products, Foam Shredder and Extruder, 2010, 1.7 to 2.2 lb Density PE & EPE Foam, 8x8x50 inch Molds

Demand Products, Foam Shredder and Extruder, 2010, 1.7 to 2.2 lb Density PE & EPE Foam, 8x8x50 inch Molds Sold

Description

  1. Overview
    1. Pe shredder / extruder
    2. Operating guide included
  2. Specifications

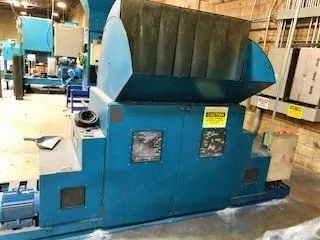

    1. Main shredder with control panel
    2. Hopper for pe scrap not to exceed approximately 24 inches wide
    3. Only pe / epe foam is meant for this machine: 1.7#, 2.2# any color; 4# pe can also be shredded but in much smaller sizes
    4. Machine takes up to 2 hours to reach melting temperature
    5. Voltage: 240 Volts, 3-Phase, 40 Amps
    6. Capacity: Produces approx. 16 logs per day (8" x 8" x 50" molds)
    7. Shredder motors: (2) 7 HP motors
    8. Compatible materials: 1.7- & 2.2-pound density PE & EPE foam, EPP, EPS

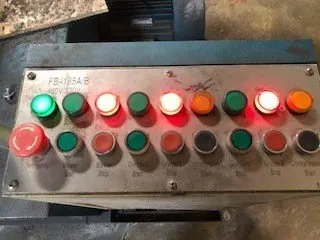

  3. Operation
    1. Turn the main power on
    2. Blower start moves the foam from the shredder conveyor to the hopper
    3. Grinder 1 start activates the left side of the shredder
    4. Grinder 2 start activates the right side of the shredder
    5. Emergency stop shuts the entire machine down
    6. Do not overload the machine with scrap pe foam; only insert more as the scrap level drops (see the window on the front of the machine)
