Sewing machine folds fabric and stitches the edge of fabric for a twill effect.
Works together with a winding machine and a strip cutting machine.

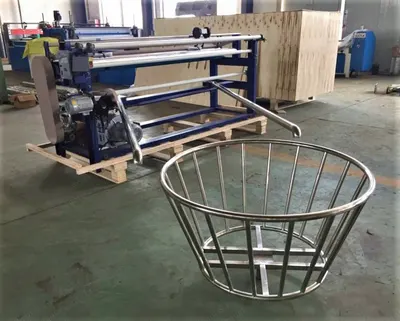

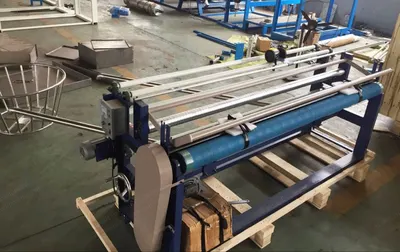

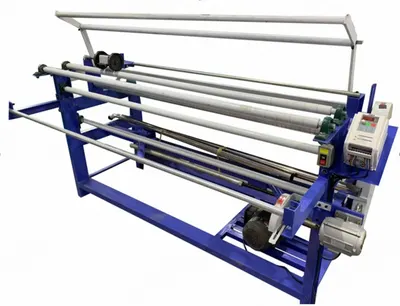

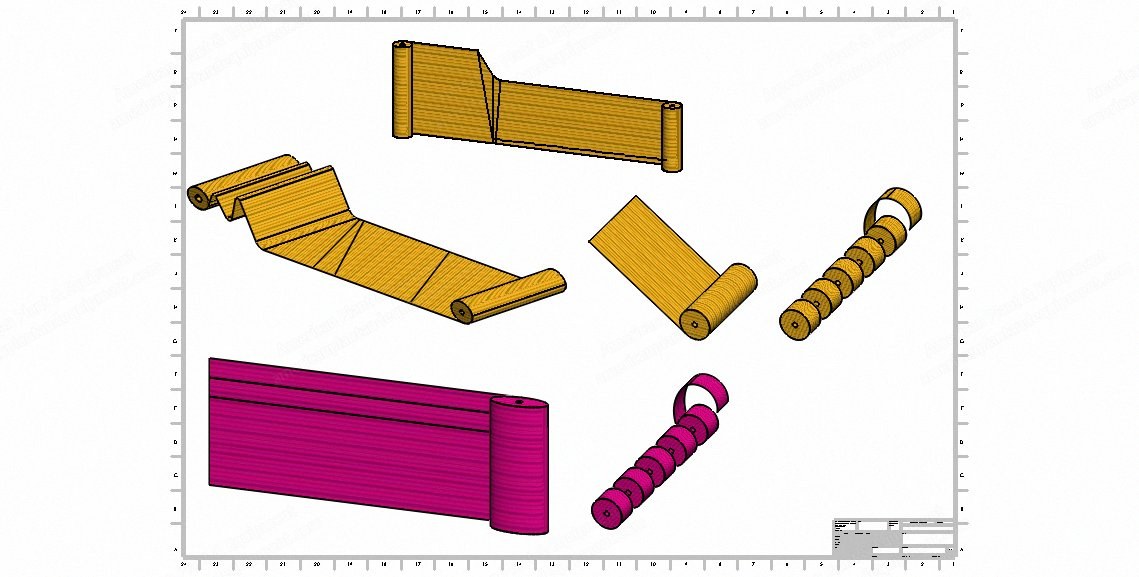

Winding machine opens previously formed tube material, spirally, in the bias, and rewinds a single ply roll; at the bottom of the machine there is a knife to cut sewing fabric separately, prepared for the slitter.

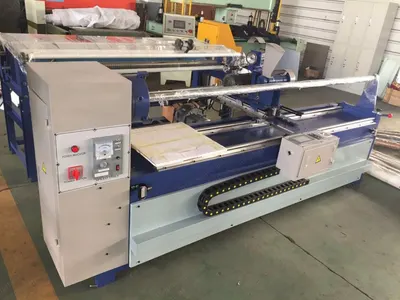

Slitter machine has manual, semi-automatic and fully automatic modes.
Will slit any type of material on the roll (open knits, woven fabric, leather, polyester, some paper products, nonwoven, etc.).
Sewing Machine Specifications
Working width: 1800 mm.
Sewhead: sewing and serger head.
Diameter of shaft: 36.7 mm.
Folding speed: 6 to 10 yards per minute.
Motor power (for pulling and folding): 1.5 kW.
Voltage: 220 volts.
Dimensions: 4600 x 2700 x 2500 mm.
Weight: 1000 kg.
Fabric Slitting and Winding Machine Specifications
Working width: 1800 mm.
Fabric rolling speed: 0 to 800 rpm.
Fabric rolling diameter: 400 mm.
Minimum cut width: 2 mm.
Rewinding core width: 37 mm.
Photoelectric edge alignment precision: ≤ +1.5 mm.
Running speed: 5 to 80 meters per minute.
Blade motor power: 2.5 kW.
Voltage: 220 volts.
Dimensions: main 3000 mm x 1100 mm x 1125 mm, side 2300 mm x 1000 mm x 1200 mm.
Weight: 2500 kg.
Included
One slitter.
One winder.
Additional Information
More information is available upon request.
