NovaStar, QL162, High-Speed Chainstitch Border Quilting Machine, 2450mm (New)

NovaStar, QL162, High-Speed Chainstitch Border Quilting Machine, 2450mm

Description

  1. Overview

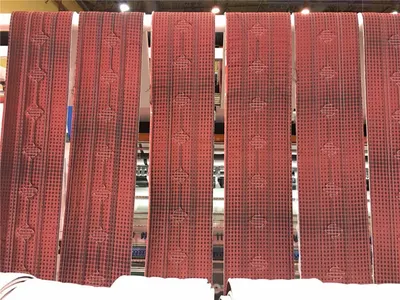

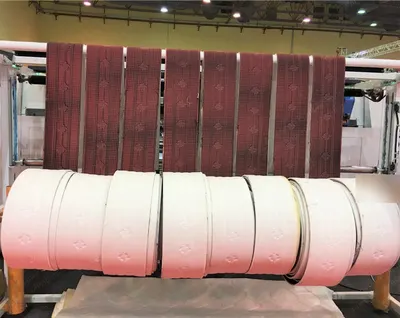

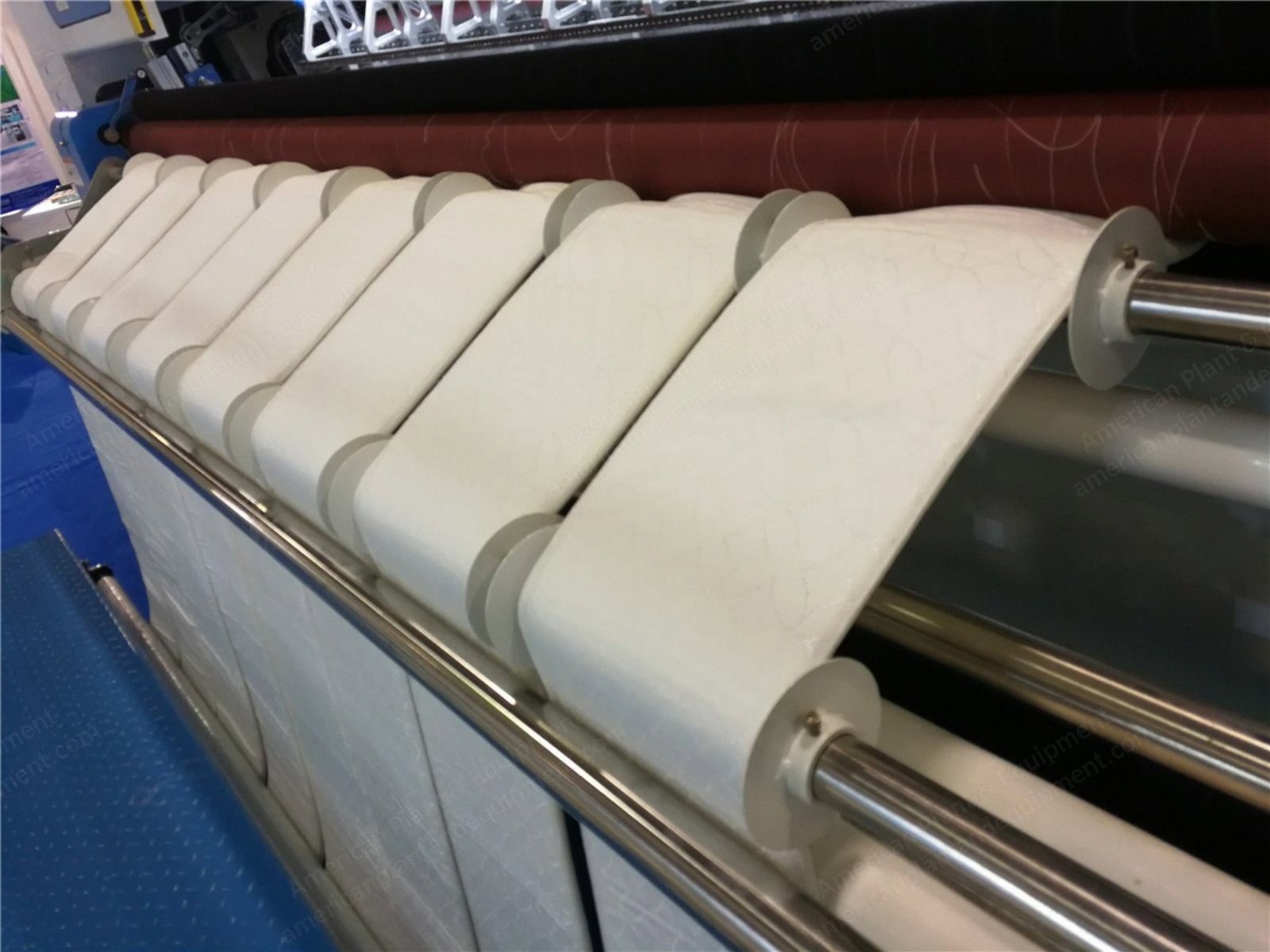

    1. Composed of two multi-needle chainstitch quilters (item 001 and item 002) that work together to produce 8 borders at the same time.

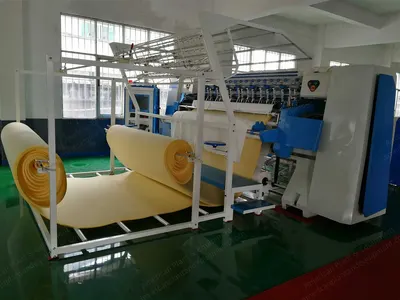

    2. When not producing borders, the two machines work as quilters for panel quilting.
  2. Item 001 Specifications

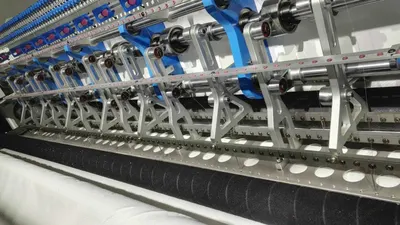

    1. Multi-needle quilter for 0.5 inch chainstitch border production.
    2. Working speed: 1100 rpm.
    3. Quilting width: 2450 mm.

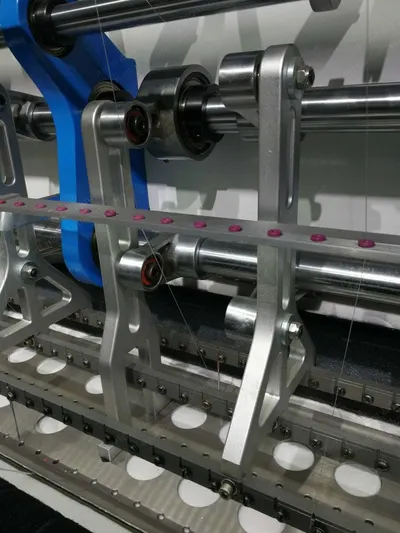

    4. Needle bar distance: 50.8, 76.2, 127 (5") / 76.2, 76.2, 152.4 (6").
    5. Needle distance: 25.4 mm.
    6. X-axis movement displacement: 304.8 mm.
    7. Quilting thickness: less than or equal to 80 mm.
    8. Stitch length: 3 to 7 mm.
    9. Capacity: 60 to 230 meters per hour.
    10. Needle type: 24/180, 23/160, 22/140, 21/130.
    11. Main shaft speed: 300 to 1000 rpm.
    12. Voltage: 3-phase 380 volts, 50 Hz or 220 volts, 60 Hz or as per customer.
    13. Power: 7 kW.
    14. Dimensions: 5400 x 1650 x 2050 mm (L x W x H).
    15. Weight: 4000 kg.
  3. Item 002 Specifications
    1. Multi-needle chainstitch quilter.
    2. Working speed: 900 rpm.
    3. Quilting width: 2450 mm.
    4. Needle bar distance: 50.8, 76.2, 127 (5") / 76.2, 76.2, 152.4 (6").
    5. Needle distance: 25.4 mm.
    6. X-axis movement displacement: 304.8 mm.
    7. Quilting thickness: less than or equal to 80 mm.
    8. Stitch length: 3 to 7 mm.
    9. Capacity: 60 to 300 meters per hour.
    10. Needle type: 24/180, 23/160, 22/140, 21/130.
    11. Main shaft speed: 500 to 1200 rpm.
    12. Voltage: 3-phase 380 volts, 50 Hz or 220 volts, 60 Hz or as per customer.
    13. Power: 7 kW.
    14. Dimensions: 5400 x 1650 x 2050 mm (L x W x H).
    15. Weight: 4800 kg.
  4. Features
    1. Thread-breakage detection and automatic stop (item 001).
    2. Automatic stop upon thread breakage (item 002).
    3. Up and down motion infrared safety protection on both machines.

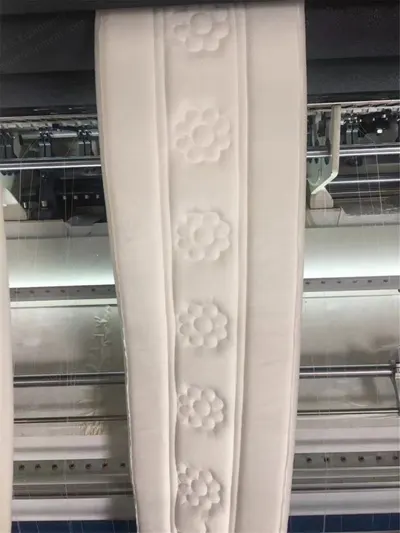

    4. Continuous patterns and tack and jump patterns available.
    5. Programmable automatic-stop ends production once desired length has been quilted.
  5. Panel Quilting Specifications
    1. Maximum thickness: 50 mm.
    2. Maximum width: 2100 mm.
    3. Width is adjustable from 10 mm to 2100 mm to suit production needs.
  6. Additional Information
    1. More information is available upon request.
  7. Specifications
    1. Weight: 8800
    2. Power: 7 kW per machine
