Thies, Gaston County, Lafer, Dyeing and Finishing Plant, 1999, Multi-Machine Package

Name: Thies, Gaston County, Lafer, Dyeing and Finishing Plant, 1999, Multi-Machine Package
Brand: Thies
SKU: J-2640

‹ Go Back Next Product ›

Description

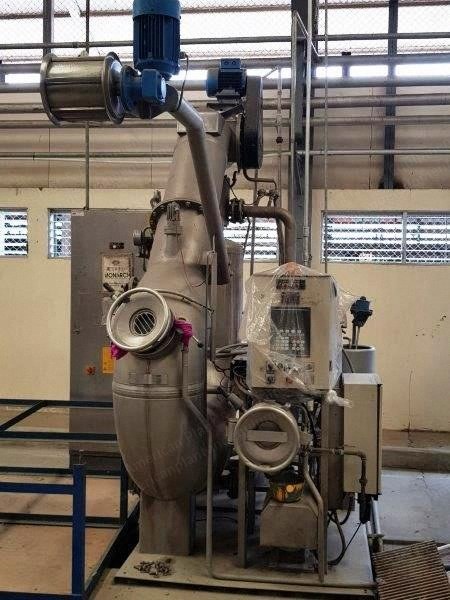

Item 001: Thies Sample Dyeing Machine
1. Model: Minisoft Sample
2. Capacity: 50 kgs
3. Year: 1999
4. Microprocessor controlled
5. Voltage: 460 volts, 3-phase, 60 Hz
6. Single add tank with mixer
7. Heat exchanger
8. All pumps and motors
9. Loading reel and fabric exit plaitor

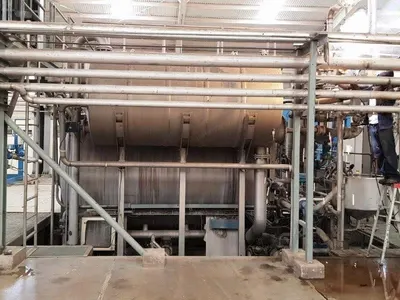

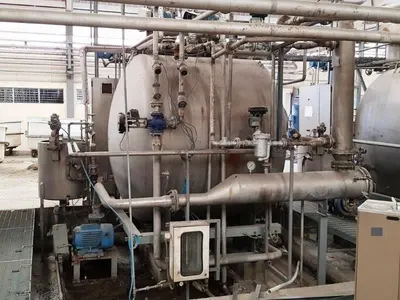

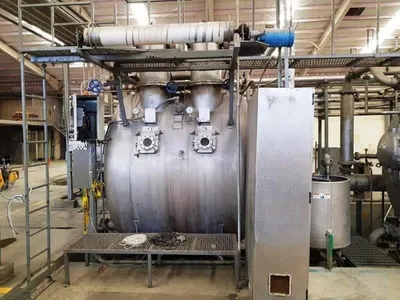

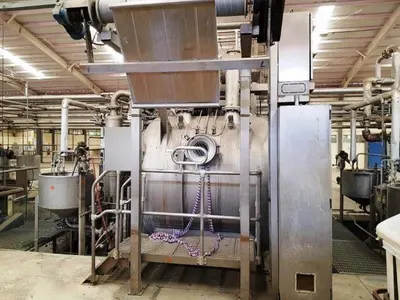

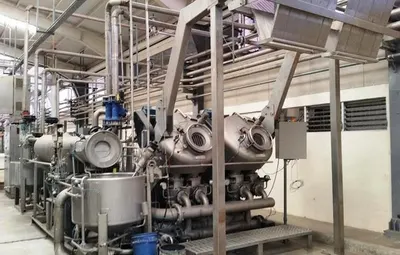

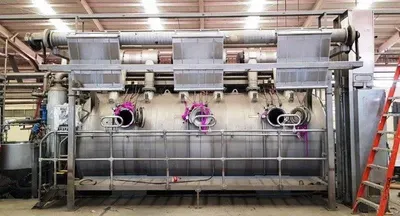

Item 002: Thies Dyeing Machine
1. Model: Ecosoft Plus
2. 3 port split/split
3. Capacity: 900 kgs
4. Year: 1999
5. Microprocessor controlled
6. Voltage: 460 volts, 3-phase, 60 Hz
7. Single add tank with mixer
8. Heat exchanger
9. All pumps and motors
10. Loading reel and fabric exit plaitor

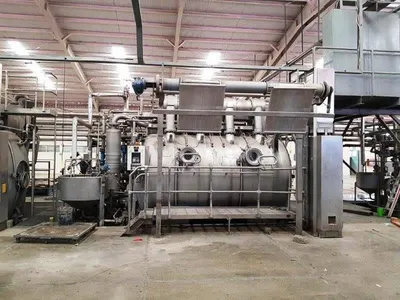

Item 003: Thies Dyeing Machine
1. Model: Ecosoft Plus
2. 2 port split/split
3. Capacity: 600 kgs
4. Year: 1999
5. Microprocessor control
6. Voltage: 460 volts, 3-phase, 60 Hz
7. Single add tank with mixer
8. Heat exchanger
9. All pumps and motors
10. Loading reel and fabric exit plaitor
Item 004: Thies Dyeing Machine
1. Model: Ecosoft Plus
2. 1 port split/split
3. Capacity: 300 kgs
4. Year: 1999
5. Microprocessor controlled
6. Voltage: 460 volts, 3-phase, 60 Hz
7. Single add tank with mixer
8. Heat exchanger
9. All pumps and motors
10. Loading reel and fabric exit plaitor
Item 005: Gaston County Dyeing Machine
1. Model: Aquaflow
2. 2 port
3. Capacity: 250 kgs
4. Year: 1987
5. Microprocessor controlled
6. Voltage: 460 volts, 3-phase, 60 Hz
7. Single add tank with mixer
8. Heat exchanger
9. All pumps and motors
10. Loading and unloading reel

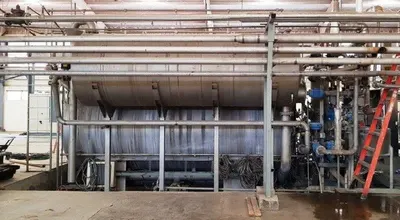

Item 006: Thies Dyeing Machine
1. Model: Soft Trd
2. 2 tube
3. Capacity: 700 kgs
4. Year: 1999
5. Microprocessor controlled
6. Voltage: 460 volts, 3-phase, 60 Hz
7. Single add tank with mixer
8. Heat exchanger
9. All pumps and motors
10. Loading reel and fabric exit plaitor

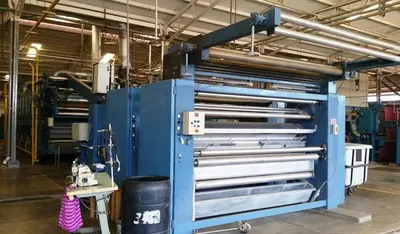

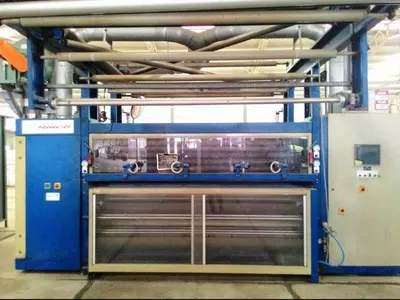

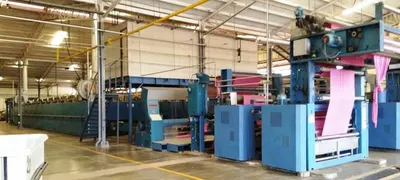

Item 007: Lafer Open Width Compactor Machine
1. Model: KSA 500 2400/2200
2. Year: 1998
3. Lafer Texen controls
4. Voltage: 480 volts, 3-phase, 60 Hz
5. Composed of:
  1. Tension bar entry to lattice roll guider
  2. Operator's platform
  3. Pup tenter with knit entry, vertical pin chain, with plate guides, rail opening, pinning brushes, pins only, with support section for the fabric in the center, at 10' there is a steaming section, total length of the tenter is 30', with automatic lubrication for the chain
  4. KSA 500 compactor bench with Texen controls
  5. Tensionless fabric conveyor
  6. Plaitor and fabric scray with optical load sensor
  7. Inline inspection batcher machine, with a back lighted board, manual cut
  8. Scale to weight the fabric

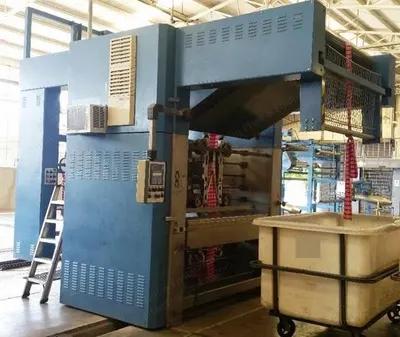

Item 008: Santex Tubular 4-Roll Extraction Pad
1. Model: Santastretch Plus 140
2. Year: 1998
3. Composed of turntable, detwister, tubular 4-roll pad with wet spreaders, plaitor
4. With addition tanks for softener
5. Reel fabric plaitor exit
6. Voltage: 460 volts, 3-phase, 60 Hz

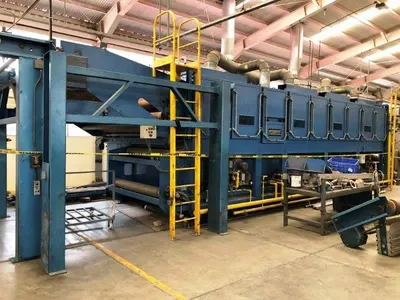

Item 009: Santex Conveyor Dryer for Open Width and Tubular Fabric
1. Model: Santashrink 4/5240
2. Year: 1998
3. Santex controls
4. Voltage: 460 volts, 3-phase, 60 Hz
5. Composed of:
  1. Tension bar entry to lattice roll guider to
  2. (2) Santex 2-roll pads, rubber over rubber, 102" wide x 12" diameter, stainless steel pan, 10-ton pad, swing-away pan, tension bar with 2 stainless steel mixing tanks, 75 gallons each
  3. Driven scroll rolls with edge guide control, width 95"
  4. Operator's platform
  5. Pup tenter with knit entry 45°, year 1998, vertical pin chain, 30' long with Tandematic plate guides, rail guides, pinning brushes, guide support for the fabric, fabric conveyor to enter both tubular or open width fabric to
  6. Conveyor dryer 100" wide, 5 zones, 3-pass with Maxon burners, 5 circulating fans to conveyor belt to plaitor
  7. All motors and Santex controls and monitors

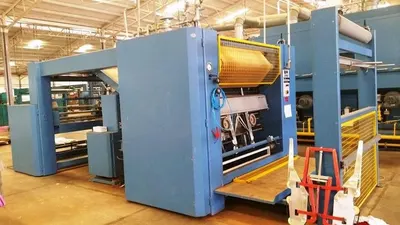

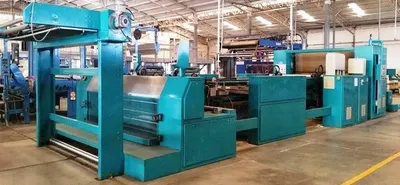

Item 010: Santex AG Tubular Compactor Machine
1. Model: Santaspread 140
2. Year: 1998
3. Santex controls
4. Voltage: 460 volts, 3-phase, 60 Hz
5. Composed of:
  1. Tensions bar entry
  2. Operator's platform
  3. Tension device
  4. Driven spreader bars
  5. Steaming device
  6. Tubular compacting bench
  7. Felt blanket onto the conveyor belt
  8. Precision plaitor
  9. Tabletop electronic scale
Item 011: Comet Napper
1. Model: Pegso-X4
2. Year: 1998
3. Voltage: 480 volts, 3-phase, 60 Hz
4. 24 rolls with turning bars for tubular 90" wide
5. Xycom controls
6. 12-bag collection system and plaitor
7. Year: 1996
Item 012: Stentex Tenter Frame
1. Model: Stentotherm 3300
2. Year: 1999
3. Stentex controls
4. Voltage: 480 volts, 3-phase, 60 Hz
5. Composed of:
  1. Tension entry to Text-Star type guider to 2 roll pad
  2. Addition tank top scray pad to Text-Star type guider
  3. Two roll pad R/R 10 ton
  4. Operator's platform
  5. Working width 1800 mm
  6. Horizontal pin chain, knit entry
  7. Tandematic splitlevel decurlers
  8. Overfeed
  9. Pinning brushes
  10. Steam box
  11. Rail guiders, 20 feet entry, 8 zones
  12. 80 feet housing
  13. Screen monitors
  14. Gas fired, Maxon Ovepak 408 burners
  15. Honeywell controls
  16. 3 feet cooling zone
  17. 2 cooling cans, selvedge trimmers
  18. Pliator, scray
  19. Zone in line inspection batcher

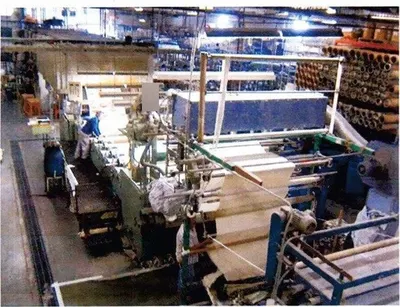

Item 013: Zimmer Rotary Screen Printing Machine
1. Model: R92-S153
2. Year: 1993
3. Composed of:
  1. Tension bar sky entry
  2. Scray
  3. Corino brush
  4. Corino print guider
  5. Zimmer printer, 8 color, 86" blanket
  6. Print conveyor dryer, 30' long, 3-zone, gas fired
4. Voltage: 460 volts, 3-phase, 60 Hz
Item 014: Safety Switch Bullet Nose Slitter
1. Model: Cutting
2. With reel fabric pliator
3. Voltage: 460 volts, 3-phase, 60 Hz
