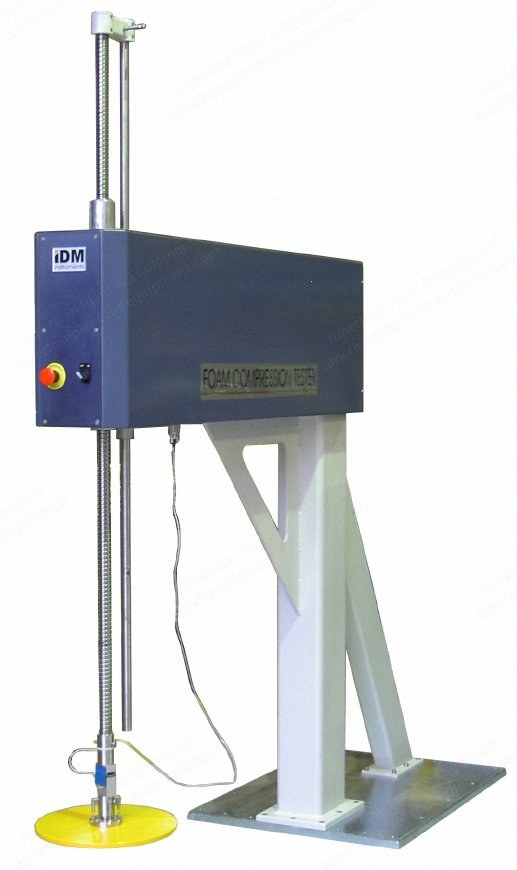

Description Overview Idm model f0024-m1 – mattress compression tester floor mount Used to evaluate firmness within mattress and foam industries, in lab or on production line Ifd is calculated by determining force required to deflect the test piece a percentage of its original thickness using a circular indentor Specifications Loading system — closed loop micro computer, which drives a ball screw and nut for its vertical movement Maximum capacity: 0-2450n (250kg) Travel (mm) approx.: 1000mm x 0.1mm Speed (mm/min) 0.05 to 500 mm/min Speed accuracy better than +0.2% Return speed (mm/min) 500mm/min Load measurement accuracy ± 0.5% of indicated value or ± 0.1% of full scale Load auto-zeroing, load cell discrimination Safety function for overloading provided at test Max. stroke limiter upper/lower — 2 points Standards As 2281 As 2282.8 Astm f1566 Astm d3574 -- test b Iso 3386:1984 Iso 2439 Bs en 1957:2000 Gb 10807 Jis k 6400 Connections Electrical: 220/240 vac @ 50 hz or Electrical: 110 vac @ 60 hz (please specify when ordering) Dimensions H: 1,912mm W: 700mm D: 2,196mm Weight: 450kg Included Software program and pc Lead Time 10 weeks
