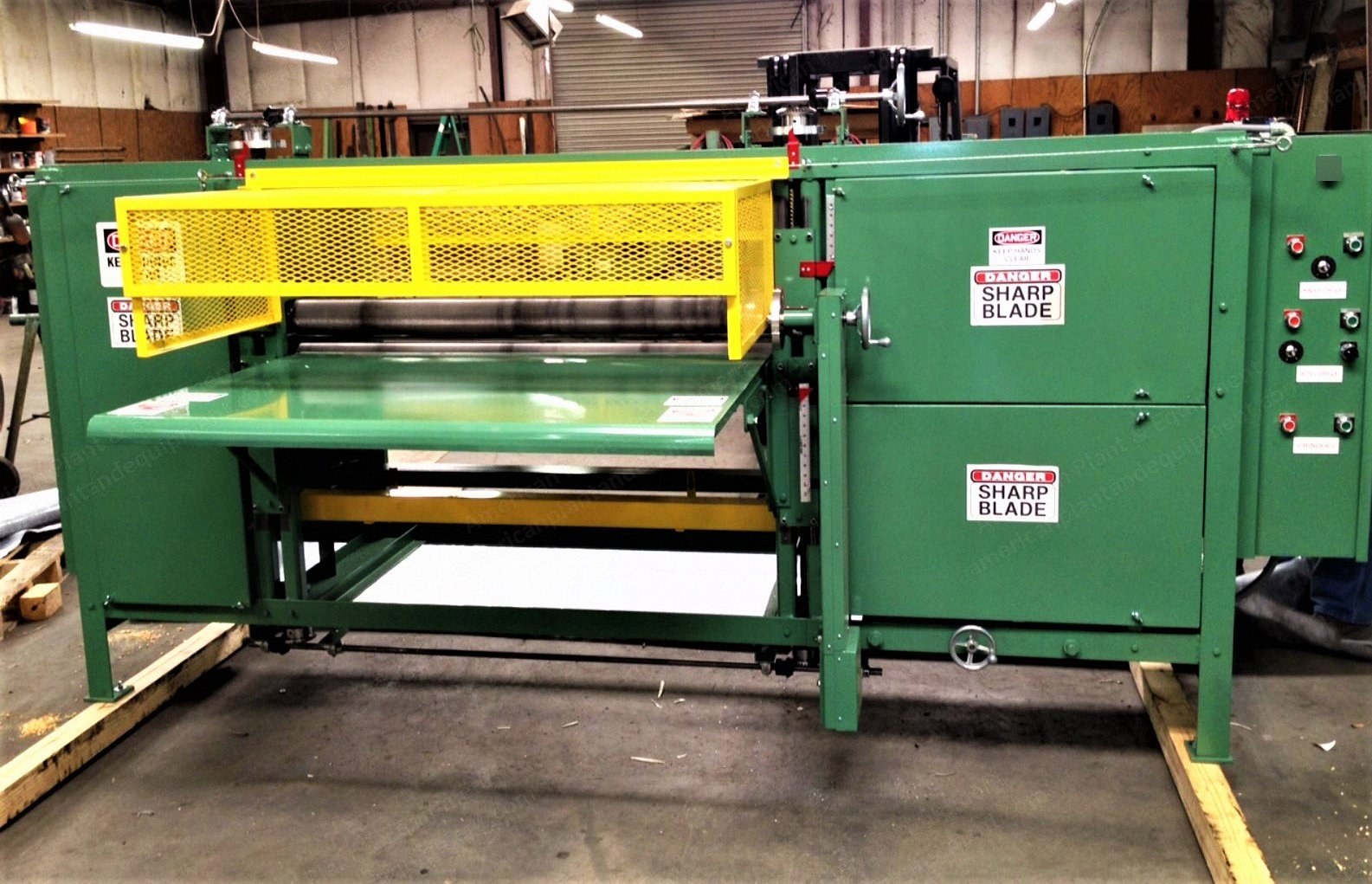

Description Overview Width: 86 in Equipped with 4 in knurled rollers that are adjusted by hand-wheel, top and bottom Operator sets the top roller to desired thickness and after every pass the bottom roller is moved up to pull the material through again Two 20 in drive wheels Safety lanyard around machine Safety light Machine is covered with removable steel panels, leaving only parts needed for operation exposed Wiring and control enclosures NEMA 1 Safety switch interrupts control power if knife breaks or there is insufficient knife tension Important: the cut sheets shall have the flexibility to bend for approximately 12 degrees to clear the knife guide Specifications 10 hp blade drive motor with variable frequency drive 7.5 hp knurled roller motor with variable frequency drive Two 1/4 hp grinder motors 230/460 volts, 3-phase power (please choose voltage when ordering) Footprint dimensions: 175.5 in long x 65 in deep with table, or 42 in deep machine only without loading table Maximum rise over the knife is 4 in Lower can be adjusted to maximum of 8 in below the knife Operation The upper roll provides the gap between material and knife, thus controlling the thickness to be cut The lower roll has to be raised for amount the upper roll is set in order to advance the material into the knife Since this roll carries the block of material, it is equipped with a table The table consists of two parts: the front and the rear Both table parts are in line with each other and raise or lower as the bottom roll is adjusted Both rolls are powered by manual handwheels Scales indicate the position in relation to the knife blade Knife is sharpened by two grinders, each powered by a 1/4 hp motor Grinders are equipped with horizontal and vertical adjusting means
