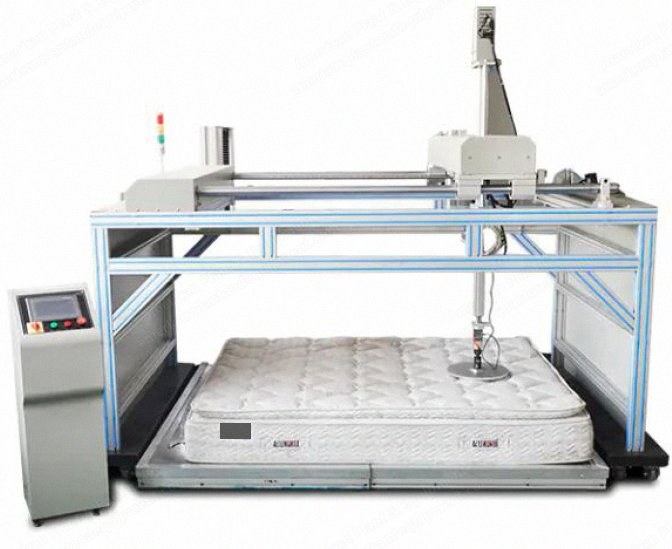

NovaStar, MC138, Mattress Softness and Hardness Tester, 2200x2200x400mm Max Mattress Size, 500mm Stroke (New)

NovaStar, MC138, Mattress Softness and Hardness Tester, 2200x2200x400mm Max Mattress Size, 500mm Stroke

Description

  1. Overview
    1. Uses a spherical and circular rigid plate protruding from the bottom for loading
    2. Records the load curve force-displacement data for analysis
    3. Evaluates the hardness value and hardness grade of the mattress
    4. Aluminum profile construction
    5. Control system uses high-precision intelligent Aram controller, which can run under Windows computer system with special testing software
    6. The software interface is clear and easy to operate
  2. Standards
    1. QB/T 1952.2-2011
    2. EN1957
  3. Specifications
    1. Load plate diameter: 355 mm
    2. Radius of curvature of sphere: 800 mm
    3. Front margin radius of curvature: 20 mm
    4. Speed: 20 to about 300 mm per minute
    5. Stroke: 500 mm
    6. Loading disc position regulation: 300 mm with left and right separately
    7. Maximum size of mattress that can be tested: 2200 x 2200 x 400 mm
  4. Condition
    1. More information is available upon request
