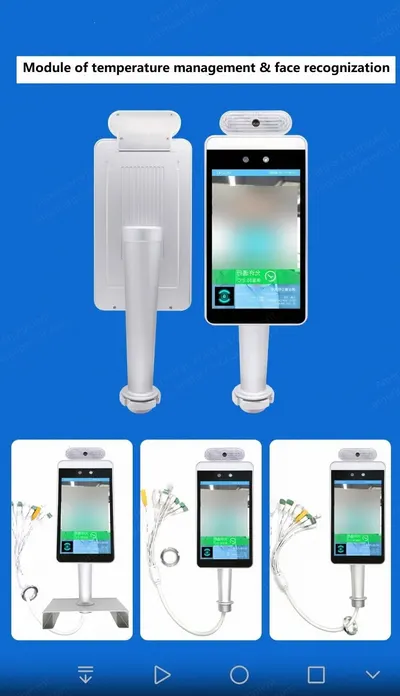

NovaStar, MD117, Vertical Module for Temperature Measurement & Face Recognition, 8 Inch IPS LCD, 30000 Face Database (New)

Description

  1. Overview
    1. Uses Rockchip RK3288 / RK3399 / Qualcomm MSM8953 high-performance hardware platform
    2. Equipped with industrial grade binocular camera, live facial recognition software and infrared thermal imaging module to support face-with-mask identification
    3. Supports expansion of various peripherals such as ID card readers, fingerprint readers, etc. which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel
    4. Can be used with access gates and attendance for communities, offices, schools, hotels, public venues, transportation hubs and public service places
  2. Features
    1. 8 inch IPS full-view LCD display
    2. Industrial appearance, waterproof and sunproof design
    3. Stable and reliable
    4. Supports a database of 30,000 faces
    5. The 1:1 comparison recognition rate is more than 99.7%
    6. The 1:N comparison recognition rate is more than 96.7% @ 0.1% misrecognition rate
    7. Live detection accuracy rate: 98.3% @ 1% misrecognition rate
    8. Face recognition pass speed is less than 1 second
    9. Supports accurate face recognition and comparison while wearing a mask
    10. Uses industrial grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp
    11. Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor, and Qualcomm MSM8953 octa-core processor
    12. Supports human body temperature detection and display (best temperature detection distance is 0.5 meters, maximum is 1 meter), measurement error +/- 0.5 °C
    13. Temperature can be read in only a few seconds and the device automatically sounds an alarm for abnormalities
    14. Attendance temperature measurement data exported in real time
    15. Various peripherals available for ID card reading, fingerprint reading, IC card reading, 2-dimensional code reading, etc.
    16. With complete documentation and support for secondary development
    17. Supports system level, app offline level, app and background network level multiple API docking
  3. Camera
    1. Resolution: 2 million pixels
    2. Type: binocular wide dynamic camera
    3. Aperture: F2.4
    4. Focusing distance: 50-150 cm
    5. White balance: auto
    6. Photo flood light: LED and IR dual photo flood light
  4. Screen
    1. Size: 8.0 inch IPS LCD screen
    2. Resolution: 800×1280
    3. Touch: not supported (optional support)
  5. Processor
    1. CPU: RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
    2. Storage: eMMC 8G
  6. Interface
    1. Network module: Ethernet and wireless (WiFi)
    2. Audio: 2.5W / 4R speakers
    3. USB: 1 USB OTG, 1 USB host standard A port
    4. Serial communication: 1 RS232 serial port
    5. Relay output: 1 door open signal output
    6. Wiegand: one Wiegand 26/34 output, one Wiegand 26/34 input
    7. Upgrade button: support UBoot upgrade button
    8. Wired network: 1 RJ45 Ethernet socket
  7. Function
    1. Credit card reader: none (optional IC card reader, ID card, ID card)
    2. Face detection: supports detection and tracking of multiple people at the same time
    3. Face library: up to 30,000
    4. 1:N face recognition: support
    5. 1:1 face comparison: support
    6. Stranger detection: support
    7. Identify distance configuration: support
    8. UI interface configuration: support
    9. Upgrade remotely: support
    10. Interface interfaces include device management, personnel / photo management, record query, etc.
    11. Deployment method: support public cloud deployment, privatized deployment, LAN use, stand-alone use
  8. Infrared Thermal Imaging Module
    1. Temperature detection: support
    2. Temperature detection distance: 1 meter (optimal distance 0.5 meter)
    3. Temperature measurement accuracy: ≤ ±0.5℃
    4. Temperature measurement range: 10℃~42℃
    5. Thermal field of view: 32 x 32℃
    6. Visitors' temperature is normal and released directly: support
    7. Abnormal temperature alarm: support (temperature alarm value can be set)
  9. General Parameters
    1. Power: DC12V (±10%)
    2. Operating temperature: 0℃~60℃
    3. Storage temperature: -20℃~60℃
    4. Power consumption: 13.5W (max)
    5. Installation method: gate bracket installation
    6. Size: standard: 274.24 x 128 x 21.48 mm; IC card / ID card: 296.18 x 132.88 x 25 mm
  10. Included
    1. Machine
    2. Power adapter
    3. Manual
    4. Certificate of conformity
