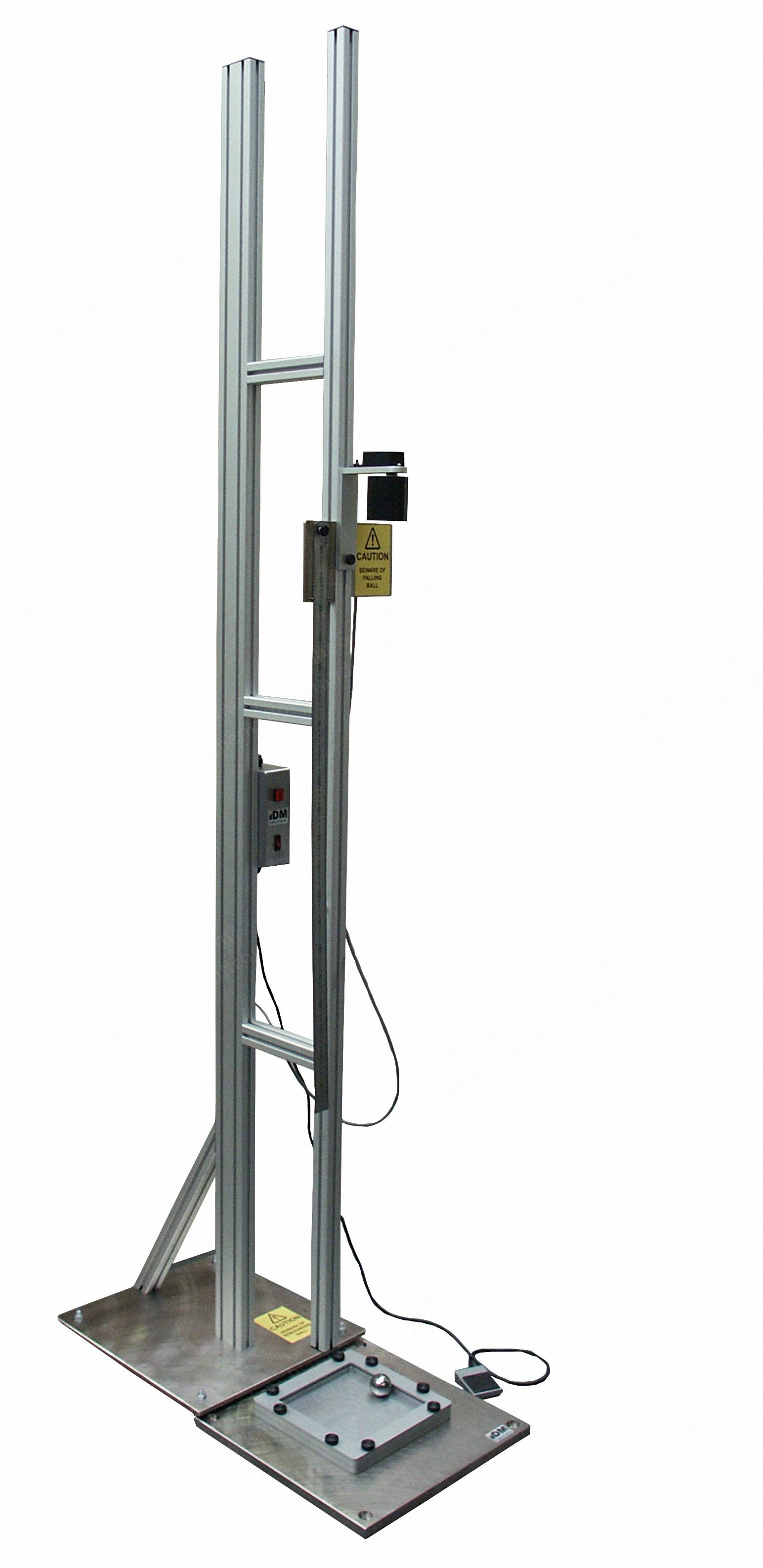

IDM Instruments, I0004, 2011, Large Ball Impact Tester, 2400mm Drop Height, 324g Steel Ball (New)

IDM Instruments, I0004, 2011, Large Ball Impact Tester, 2400mm Drop Height, 324g Steel Ball

Description

  1. Overview
    1. Measures the resistance of impact on surfaces using a large diameter ball
    2. Defined as the maximum height for which no visible surface cracking, or imprint greater than the specified diameter, occurs in five successive strikes
    3. Applications: laminates
  2. Features
    1. Aluminum frame construction
    2. Drop height 2,400 mm, adjustable
    3. Solid steel base plate 450 mm x 475 mm
    4. Solid steel clamping frame base 450 mm x 450 mm
    5. Specimen clamp 270 mm x 270 mm
    6. Steel ball 324 g ± 5.0 g with diameter 42.8 mm ± 0.2 mm
    7. Electromagnet
    8. Foot switch
  3. Standards
    1. ISO 4586-2
    2. EN 438-2: 2005
  4. Options
    1. Clamping frame to suit AS/NZS 4266.27
  5. Connections
    1. Electrical: 220/240 VAC @ 50 Hz or 110 VAC @ 60 Hz (specify when ordering)
  6. Dimensions
    1. Height: 2,500 mm
    2. Width: 450 mm
    3. Depth: 900 mm
    4. Weight: 75 kg
