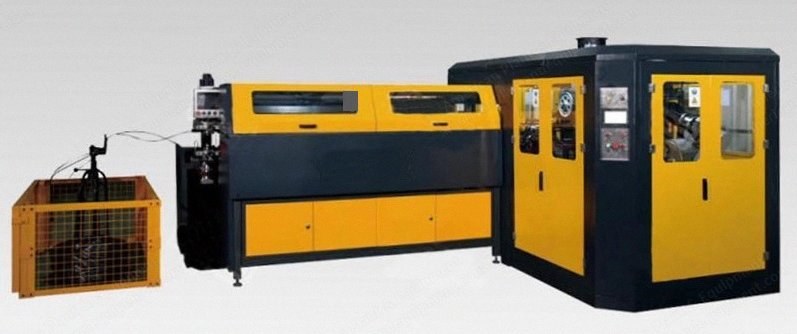

Description Overview Advanced system with stable, easy operation Accurately adjusts space between coils with servo motor Standard: 5 turns Specifications Steel wire diameter: 1.9 to 2.4 mm Spring outside diameter: Ø 65 to 92 mm Center coil outside diameter: Ø 32 to 55 mm Spring height: 80 to 190 mm 4 turns: 80 to 120 mm 5 turns: 120 to 150 mm 6 turns: 140 to 190 mm Helical wire diameter: 1.3 to 1.5 mm Maximum spring unit width: 2000 mm Working temperature: 0 to 40 °C Wire basket capacity: ≥ 1000 kg Total power: 18 kW Required voltage: 480 volts, 3-phase, 50 or 60 Hz (as per customer requirement) Total weight: 5000 kg Capacity: 70+ units per minute
