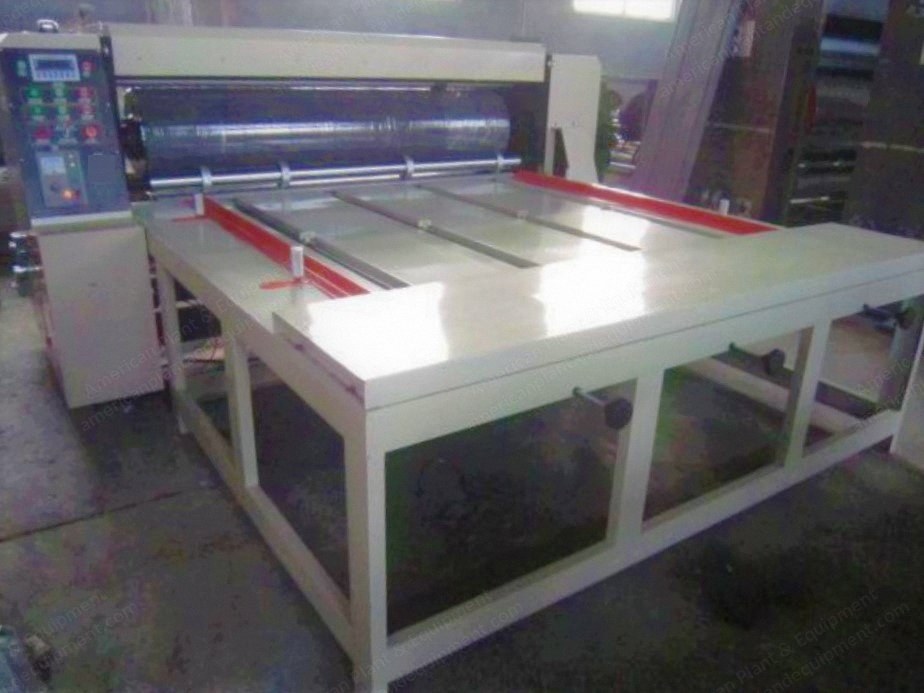

Description Overview Maximum die cutting size: 2050 x 1600 mm Minimum die cutting size: 400 x 600 mm Paper thickness: 1 to 10 mm (3 to 7 layers) Input minimum dimensions: 400 x 700 mm Main motor power: 7.5 kW Equipped with PE felt (anvil) Service life up to 10 million cuts For all types of die cutting of all types of cardboard (corrugated) packaging Uses high-strength cue-soft PE adhesive Die cutting roller can move horizontally up to 38 mm With line-speed automatic compensation system to ensure the machine cuts the normal size of cardboard each time Repairing the mechanical color of the soft roller can extend service multiple times Feed system uses self-locking linkage (chain feed) Paper Feed Section Manual chain feed, complete slot, cut angle, crease, single punch Paper feed speed: 4000 pieces per hour, die cutting accuracy within 1 mm 3-phase motor with adjustment feature to allow for start and stop adjustment Electroplating feed paper wheel, prevents crushed cardboard and increases accuracy of paper feed Chain trolly built with durable high-strength engineered plastics Electrical Section Main motor with electromagnetic adjustable speed to reduce power consumption Front and back control panel for easy operation Whole by light, electricity joint air control system Built with name-brand components Die Cutting Die-cutting roller made of high-quality steel, wall thickness 30 mm, balance corrected, hard chrome-plated Wall panels made of high-quality steel, wall thickness 50 mm, large-scale processing center production Soft roller automatic grinder mechanism improves re-use of anvil polyurethane cover by grinding 3 to 4 times Line-speed automatic compensation feature ensures each batch of cartons produced have exactly the same cut dimensions Imported polyurethane soft cut sets, easy installation, die cutting life up to 10 million cuts Cam-type soft roller has horizontal movement of approximately 40 mm, so the anvil cover wears evenly Lubrication system: oil-immersed, simple, efficient
