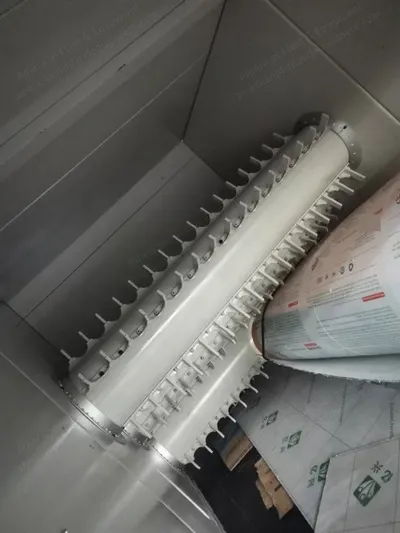

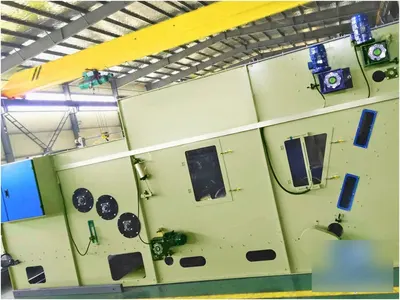

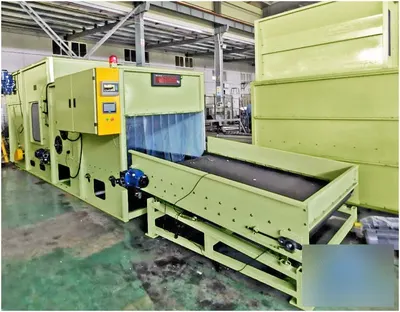

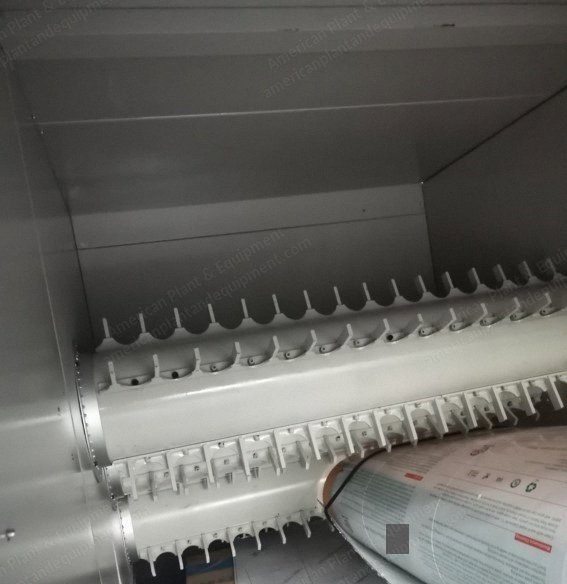

Description Overview Working width: 1700 mm Production capacity: 400 to 450 kg per hour Feed automatically controlled by photoelectric sensor, spike lattice frequency conversion controls feed volume Installed power: 10.5 kW Machine Frame Constructed of high quality Q235-A steel plate welding Plates are CNC laser cut, 8 mm thick steel with modular design Spike Lattice Constructed from high quality wooden bar with thicker canvas, sides with angle steel for supporting lattice Conveyor lattice with 3 parts separated PVC lattice, high and low dislocation arrangements Spike lattice motor: 1.5 kW x 1, frequency control Rollers Even strip roller nail tooth height outer diameter: Ø375 mm 4 rows of teeth Mixing roller tooth height outer diameter: Ø290 mm Even roller motor: 1.1 kW x 1, frequency control Strip roller motor: 1.1 kW x 1, frequency control Mixing roller motor: 5.5 kW x 1 Hopper Maximum weight each: ≥ 40 kg With 3 mixing rollers for more uniform fiber mix Air cylinder controlled mixing time can be set according to the specifications of the fiber Beater Beater roll diameter: 270 mm Beater roll teeth height: 100 mm Total beater size: about 490 mm Weighing and Conveying Weighing lattice motor: 0.55 kW x 1, frequency control Conveying lattice motor: 0.75 kW x 1, frequency control Dimensions and Weight Dimensions: 8500 mm x 2400 mm x 2500 mm Shipping weight: 3 tons SpecificationsWorking width: 1500mm
