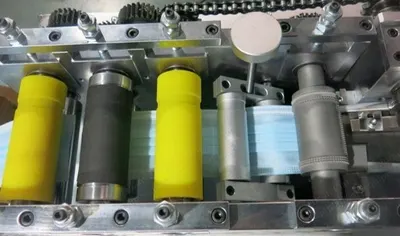

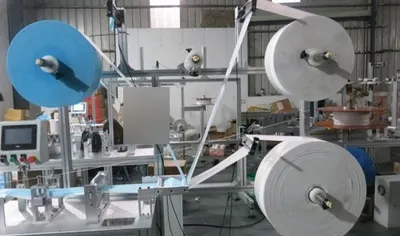

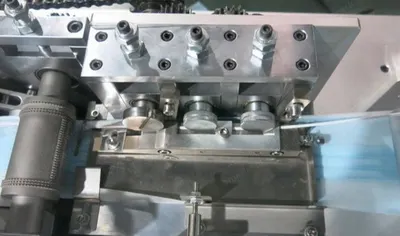

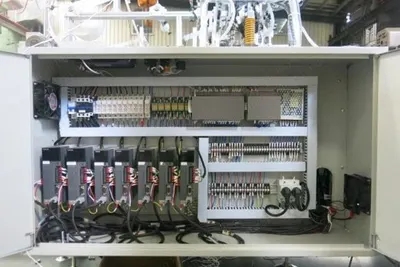

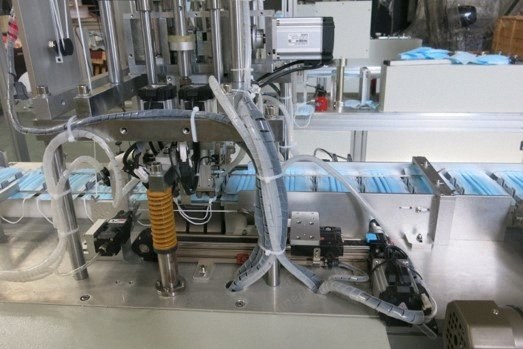

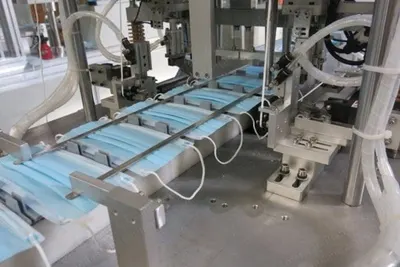

Description Production Flow Raw material conveying Nose bridge conveying Folding and shaping of the mask piece Welding and slicing of pattern around mask piece Automatic feeding to ear loop ultrasonic welding unit Four-point welding of ear loops Finished product exit Raw Materials Rack Holds 3 fabric rolls and nose bridge wire Machine can produce 2, 3 or 4-layered masks Each shelf equipped with sensor to automatically stop the machine when out of material Specifications Nose bridge material is automatically inserted and cut during mask production 4 servo motors and guide rails control ultrasonic welding and movement of ear loop material, with automatic scissors to cut material for each mask All 4 ear loop ends welded simultaneously Masks exiting the machine can be stacked in programmable quantities or exit individually Capacity: 70 to 80 pieces per minute Power: 11 kW Voltage: 220 volts, 60 or 50 Hz (as per customer requirement) Control: PLC controlled Dimensions and Weight Floor space dimensions: 4200 x 3050 x 1970 mm Crate dimensions: 2050 x 0740 x 1270 mm and 2100 x 1100 x 1650 mm Crated weight: 930 kg
