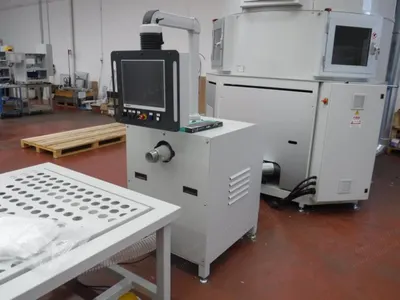

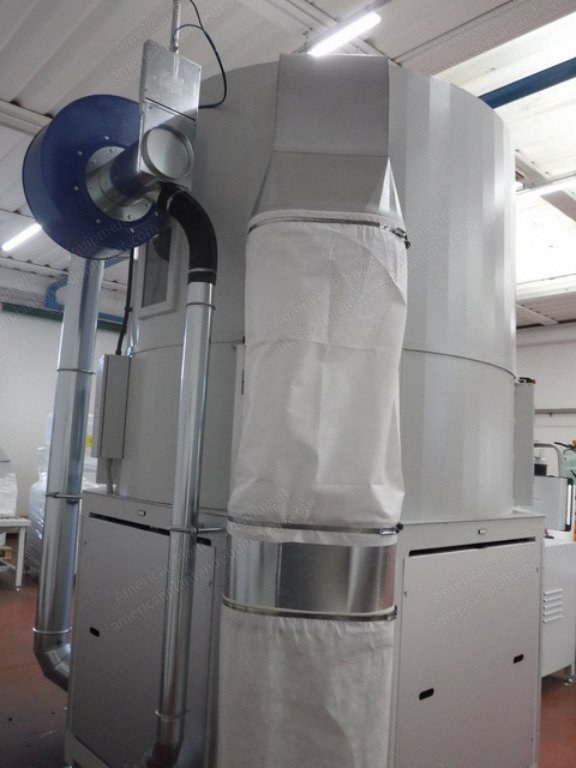

NovaStar, Alan Pillow 2, Pillow Filling Machine, 6.0m3 Silo, 2 Pre-Weighing Units, 700 Fillings/hr (New)

Description

Overview
1. Silo volume: 6.0 m³
2. Automatic pre-weighing units: 2 units with 210 liter capacity
3. Filling nozzle: 1
4. Output capacity: up to 700 fillings per hour
5. Filling weight accuracy: up to 1 gram (2% of the total weight)
6. Expected output: 6 pillows per minute with 2 lbs feather pillows
Electrical Specifications
1. Voltage: 480 volts (+/- 10%)
2. Phase: 3-phase + N + PE
3. Frequency: 60 Hz (+/- 2%)
4. Voltage auxiliary circuits: 24 VDC / 24 VAC
5. Installed power: 7.4 kW – 32 amps
Pneumatic Specifications
1. Operating pressure: 6 bar
2. Air consumption: 50 liters per minute
3. Noise: < 70 dB
Environmental Conditions
1. Altitude: < 1000 meters
2. Internal temperature maximum: 38 °C
3. Internal temperature minimum: 5 °C
4. Ideal temperature for working down: 20 to 25 °C
5. Humidity (for down): about 65%
6. Compliant to CE directive: 2006/42/CE
7. With CE marking
8. Meets low voltage standard: 2014/35/UE or equivalent UL/CSA standard
9. Electromagnetic compatibility standard: 2014/30/UE or equivalent UL/CSA standard
Service Air Specifications
1. Standard quality: ISO 8573-1 standard quality
2. Particles: quality class 3
3. Water / humidity: quality class 4
4. Oil: quality class 3
Components
1. Electrical: Siemens, Toshiba, Schneider
2. PLC/PC: Beckhoff
3. Electric motor: MT Motori Elettrici (Italy)
4. Pneumatic components: SMC

Capacity	6.0m3 silo volume, 2x 210 liter pre-weighing units
Electric Motor	MT Motori Elettrici (Italy)
Expected Output	6 pillows per minute with 2 lbs feather pillows
Filling Weight Accuracy	Up to 1 gram (2% of total weight)
PLC/PC	Beckhoff
