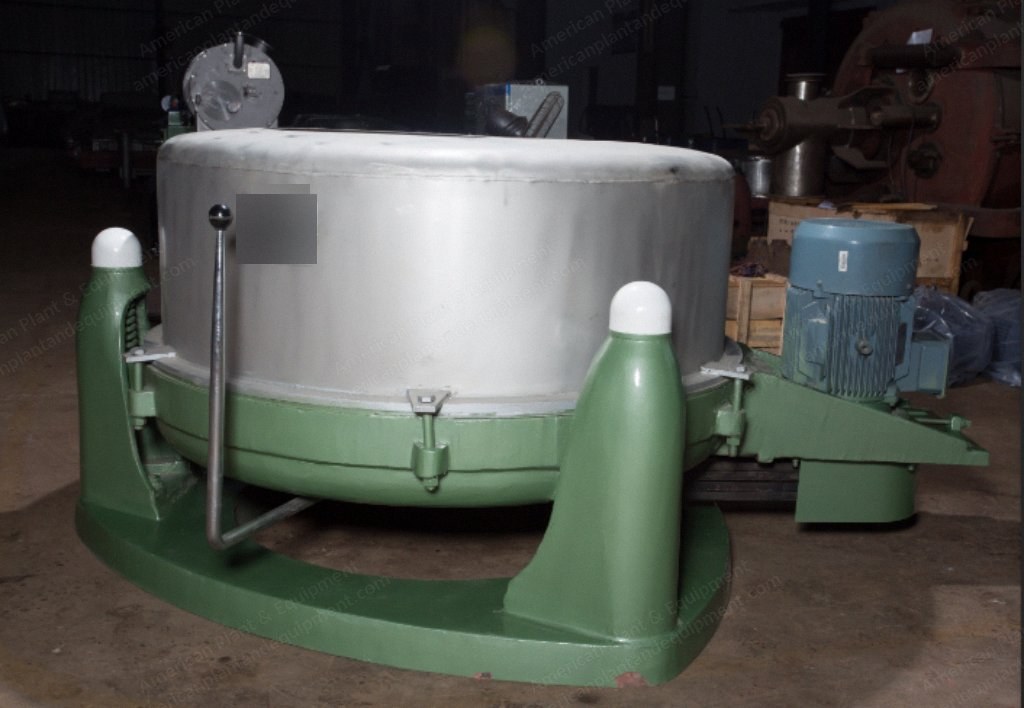

NovaStar, SE114, New, 1250mm Basket Diameter, 300 kg Capacity, 500 RPM (New)

NovaStar, SE114, New, 1250mm Basket Diameter, 300 kg Capacity, 500 RPM

Description

  1. Overview
    1. Equipped with frequency controller
    2. Constructed with durable stainless steel SS 304
    3. Transmission: V-belt
    4. Brake: electric and mechanical
    5. Bearing lubrication: Mobil brand, model EP2
  2. Basket Specifications
    1. Capacity: 300 kgs maximum
    2. Diameter: 1250 mm
    3. Height: 450 mm
    4. Volume: 250 liters
    5. G-force: 560
    6. Speed: 500 rpm
    7. Wall thickness: 10 mm
    8. Loading: top, manual, manual emptying
  3. Motor Specifications
    1. Power: 7.5 kW
    2. Voltage: 220 volts, 3-phase, 60 Hz (or as per customer)
    3. Protection class: IP 55
    4. Insulation class: F
  4. Dimensions and Weight
    1. Net weight: 2300 kgs
    2. Shipping weight: 3000 kgs
    3. Shipping dimensions: length 2315 x width 1700 x height 1085 mm
