NovaStar, PC230, Fiber Carding, Blending and Filling Line, 12 Pillows per Minute, 670mm Max Width (New)

Description

Overview
1. Line designed for pillows 670 mm wide by 300 mm thick, 12 pillows per minute.
Item 001: Bale fiber feeder and carding machine
1. Belt width: 1000 mm.
2. Capacity: 400 kg per hour.
3. Weight: 900 kg.
4. Power: 9 kW.
5. Dimensions: 3650 x 1420 x 1820 mm.
Item 002: Bale fiber feeder and carding machine
1. Belt width: 1100 mm.
2. Capacity: 500 to 600 kg per hour.
3. Weight: 1000 kg.
4. Power: 9 kW.
5. Dimensions: 3650 x 1520 x 1820 mm.
Item 003: Blending machine
1. Capacity: 300 kg per hour.
2. Power: 0.75 kW.
3. Weight: 180 kg.
4. Dimensions: 1800 x 990 x 1360 mm.
Item 004: Blower
1. Capacity: 300 kg per hour.
2. Weight: 80 kg.
3. Power: 32 kW.
4. Dimensions: 500 x 480 x 730 mm.

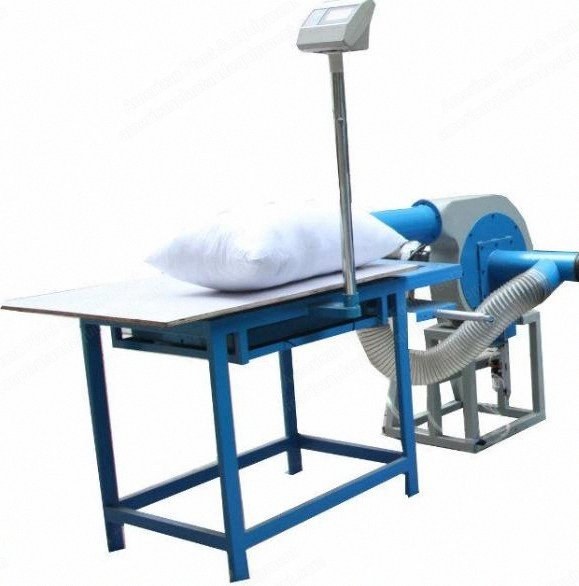

Item 005: Filling machine with weigh scale table
1. Capacity: 10 to 12 pieces per minute.
2. Maximum pillow width: 670 mm.
3. Maximum pillow thickness: 300 mm.
4. Air pressure: 0.6 to 0.8 MPa.
5. Dimensions: 1950 x 1400 x 1300 mm.
Specifications
1. Weight: 2260

Capacity	12 pillows per minute
Total Components	2x Carding Machines, 1x Blending Machine, 1x Blower, 1x Filling Machine with Weigh Scale Table

Dimensions	3650x1520x1820mm (largest carding machine)
Height	1,820 mm
Length	3,650 mm
Weight	2,260 kg
Width	1,520 mm
