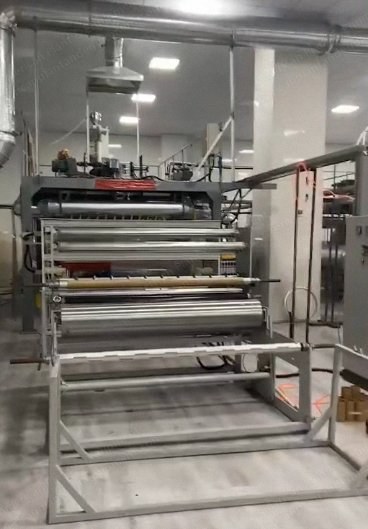

NovaStar, NN287, Meltblown Line, 1600mm Working Width, 500 Tons Capacity, 459 kW Heating Power (New)

NovaStar, NN287, Meltblown Line, 1600mm Working Width, 500 Tons Capacity, 459 kW Heating Power

Description

  1. Overview
    1. Total power: heat 459 kW, drive 185 kW
    2. Typical power consumption: 280 to 386 kW
    3. Working speed: 4 to 20 meters per minute
    4. Net web width: 1600 mm
    5. Gsm range: 8 to 120 gsm
    6. Spinning yarn diameter: 2 to 5 μm
    7. Maximum roll diameter: 600 mm
    8. Maximum capacity: 500 tons (when running 21 gsm)
    9. Requires 3 operators per shift (2 technicians, 1 helper)
  2. Dimensions And Weight
    1. Floorspace dimensions: length 15000 x width 7000 x height 4800 mm
    2. Weight: 13 tons
  3. Equipment Specifications
    1. Hopper: made of stainless steel, with valve door
    2. Extruder: 1 set, Ø90 mm, L/D: 30, material 38CrMoLALA, nitriding hardness 740 hv, nitriding depth 0.5 to 0.8 mm
    3. Reduction box
    4. Drive motor: 1 set, 45 kW AC, inverter speed control, 6 heating zones
    5. Melt filter: 1 set, Ø240 mm, self-sealing
    6. Meter pump: 1 set, 100 cc, reaction box, 5 kW motor, inverter speed control
    7. Air heater: 1 set, stainless steel, 300 kW, maximum temperature: 450 °C, working temperature range 200 to 400 °C
    8. Roz fan: 1 set, 90 kW
    9. Lapper: 1 set, reduction box, motor power: 1.1 kW, inverter speed control, vacuum fan, 1 set, motor power: 45 kW
    10. Winding machine: 1 set, roll diameter Ø377 mm, polished rubber surface, motor power 3 kW, inverter speed control
    11. Electric pole: 1 set, Asian brand
    12. Control cabinet and operation table: 1 set, Siemens touch screen, 10.5 inch, PLC, PLC control cabinet, Siemens PLC and inverter, Asian brand sensors
  4. Specifications
    1. Weight: 13000
