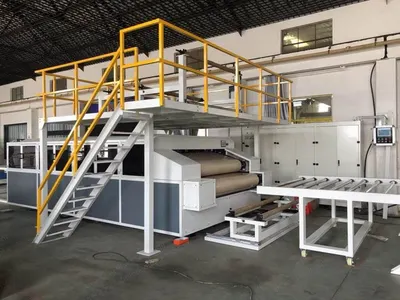

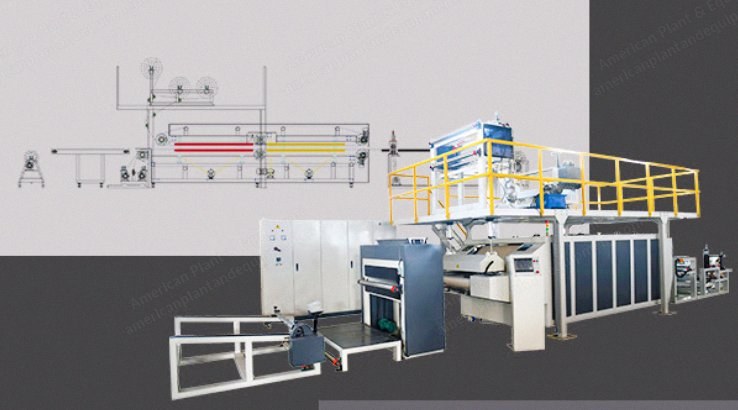

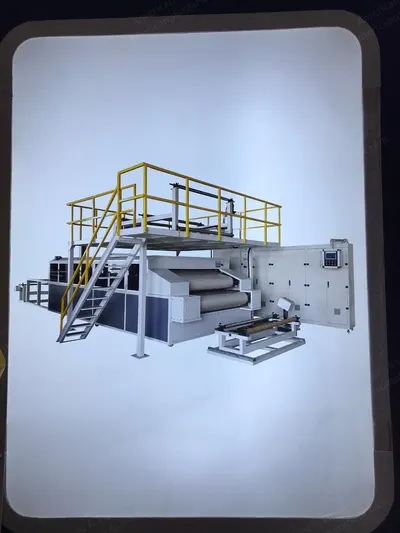

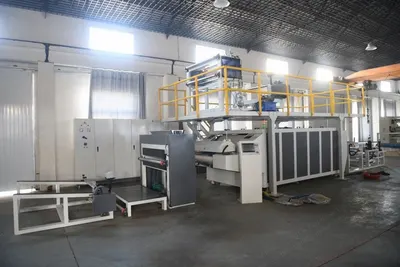

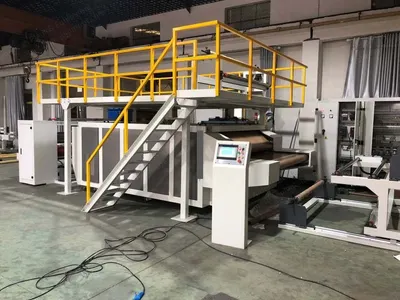

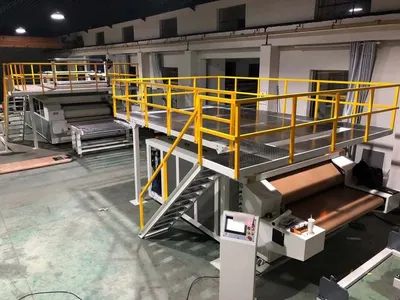

NovaStar, CG145, Double Belt Flat Bed Laminator, Working Width 1800mm, Heating Power 108 kW (New)

NovaStar, CG145, Double Belt Flat Bed Laminator, Working Width 1800mm, Heating Power 108 kW

Description

  1. Overview
    1. Double belt flat bed laminator
    2. Working width: 1800 mm
    3. For industrial textiles: pu foam, polypropylene or polyester film
    4. Film thickness: 10 μm
    5. Transfers temperature and pressure through two upper and lower conveyor belts, using heat-compression to combine two or more materials into one
  2. Specifications
    1. Maximum working temperature: 250 °C
    2. Maximum working pressure: 50 N/cm²
    3. 1 group of pressure rollers in heating section
    4. 1 group of pressure rollers in cooling section
    5. Gap size of machine: 1 to 150 mm
    6. Length of cooling zone: 1500 mm
    7. Length of heating zone: 1500 mm
    8. 72 pieces electric heating tubes in heating zone
    9. 72 pieces cooling tubes in cooling zone
    10. Cooling system type: water cooling
    11. Diameter of drive rollers: 240 mm
    12. Rollers/belt speed: 0.1 to 15 meters per minute
    13. Belt type: antistatic teflon belt (joint)
    14. Belt maximum working temperature: 250 °C
    15. Belt thickness: 0.5 mm
    16. Control system: siemens, delta (customizable per customer requirement)
    17. Voltage: 480V 60Hz
    18. Heating power: 108 kW
