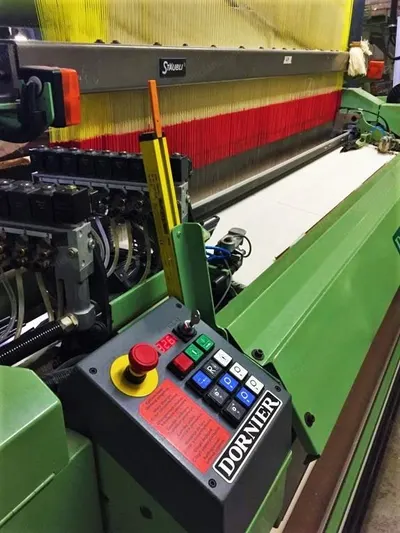

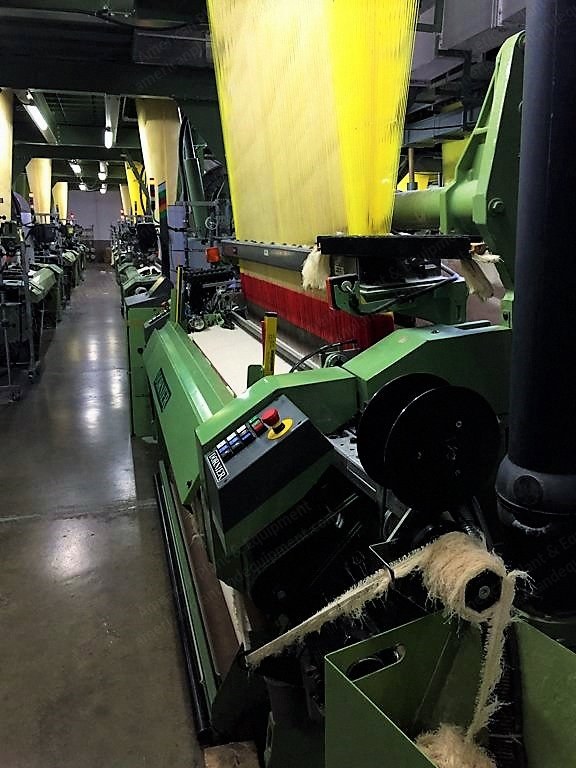

Dornier, ATVF 8/J-220, 2002, Terry Loom, 2200mm Working Width, Staubli LX1600B Jacquard, 5120 Hooks, 8 Colors

Dornier, ATVF 8/J-220, 2002, Terry Loom, 2200mm Working Width, Staubli LX1600B Jacquard, 5120 Hooks, 8 Colors

Description

  1. Overview
    1. For terry towel
    2. Working width: 2200 mm
    3. Year: 2002, series 75700 (both sets)

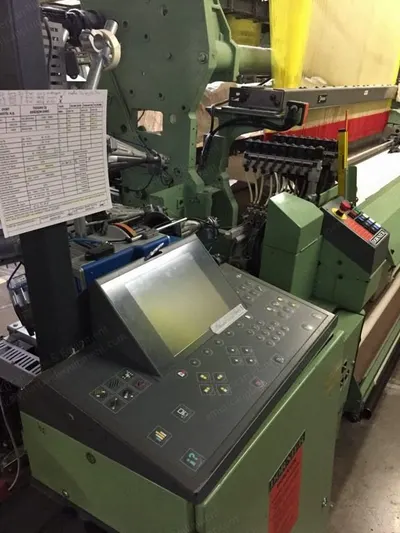

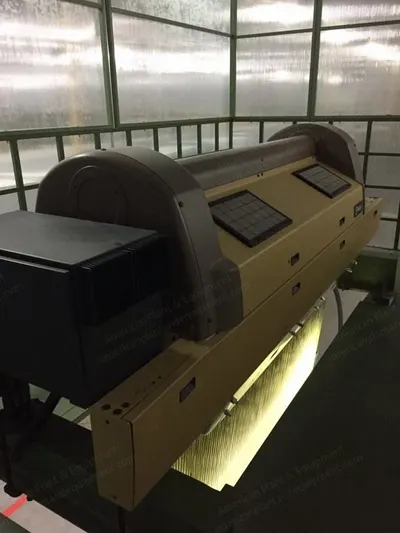

    4. Staubli jacquard, model LX1600B (5120 hooks, year 2002, JC-5 controller, Staubli inclusive harness)
  2. Each Set Includes
    1. 8 weft colors
    2. Ground and upper beam construction
    3. Electronic take-up and let-off motors
    4. 6 weft accumulators (Roj Super Elf)
    5. 2 creels for each 4 weft bobbins
    6. 2 warp tension rolls
    7. Double warp detection (Grob)
    8. 2 warp stop detection bars
    9. Eco leno system (right and left)
    10. Motorized waste cutter (right and left)
    11. 2 warp beams (0 800/1000 mm)
    12. Trash can
    13. Batching motion (Neuenhauser DW3218)
    14. With inspection table and walking board
