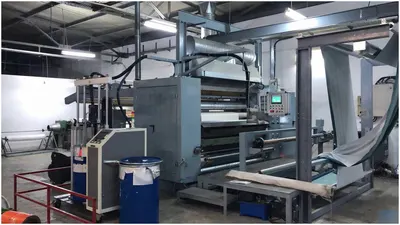

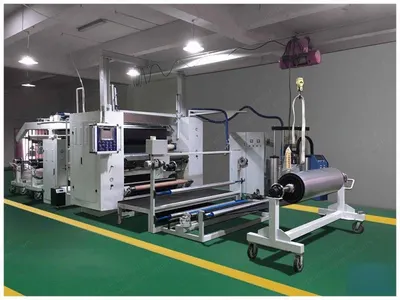

NovaStar, LC133, PUR Hot Melt Glue Laminating Machine, 2200mm Working Width, 0-40m/min (New)

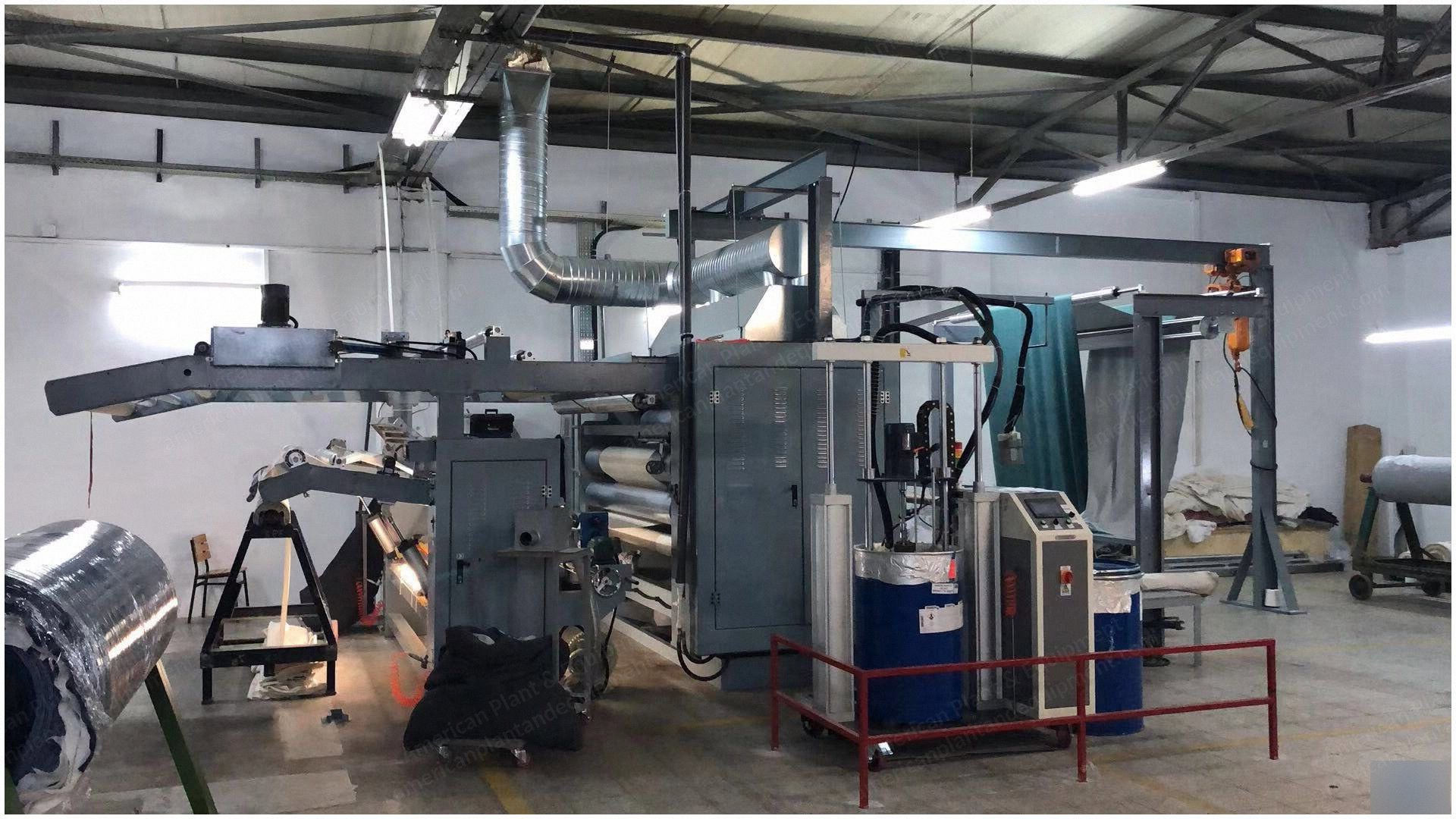

NovaStar, LC133, PUR Hot Melt Glue Laminating Machine, 2200mm Working Width, 0-40m/min

Description

  1. Overview
    1. Working width: 2200 mm
    2. Roller width: 2400 mm
    3. Laminates fabric to fabric and fabric to film
    4. Glue type: hot melt PUR glue
    5. Working speed: 0-40 m/min
    6. Heating method: electricity, thermal oil
    7. Installed capacity: about 80 kVA
    8. Compressed air: 4-8 bar
    9. Heated pipe length: 5 m
  2. Main Configuration
    1. Part one: base fabric unwinding device
    2. Part two: film unwinding device
    3. Part three: film carrier reclaimer
    4. Part four: hot melt glue transfer device
    5. Part five: hot melt glue system
    6. Part six: cooling system
    7. Part seven: edge cutting device
    8. Part eight: rewinding device
    9. Part nine: fabric unwinding device
  3. Part One: Base Fabric Unwinding Device
    1. Unwinding rack: 4 sets
    2. φ74 pneumatic shaft: 4 pieces
    3. Damping device: 4 sets
    4. Unwinding unit: 4 each
    5. EPC position adjust device: 1 set
    6. φ75 aluminum alloy roller: 5 pieces
    7. Machine rack: 1 set
    8. Footboard: 1 each
  4. Part Two: Film Unwinding Device
    1. φ74 pneumatic shaft: 2 pieces
    2. φ180 rubber roller: 1 piece
    3. Film opener rotator: 1 each
    4. Siemens (aluminum) gear motor: 1 each
    5. Yaskawa inverter: 1 each
    6. Machine rack: 1 set
  5. Part Three: Film Carrier Reclaimer
    1. φ74 pneumatic shaft: 1 piece
    2. Safety stirrup: 1 set
    3. Siemens torque motor: 1 each
    4. Yaskawa inverter: 1 each
    5. Machine rack: 1 set
  6. Part Four: Hot Melt Glue Transfer Device
    1. φ240 engraved roller (shape and mesh are customizable): 1 piece
    2. φ240 laminate steel roller: 1 piece
    3. φ240 silicone roller: 2 pieces
    4. φ75 aluminum alloy roller: 5 pieces
    5. Axial stretch roller: 2 pieces
    6. Tension control system: 1 set
    7. φ75 aluminum alloy roller: 1 piece
    8. Omron tension detector: 2 each
    9. φ80 cylinder: 4 each
    10. φ25 cylinder: 2 each
    11. Related pneumatic system: 1 set
    12. Heating plate: 1 piece
    13. Scraping blade device: 1 set
    14. Hot oil heater: 1 set
    15. Temp control system: 2 sets
    16. Omron intelligent temp controller: 1 set
    17. Temp sensor: 1 each
    18. Siemens (aluminum) gear motor: 3 each
    19. Yaskawa inverter: 3 each
    20. Stainless steel glue channel: 1 piece
    21. Lifter (500 kg): 1 each
    22. Machine rack: 1 set
    23. 800 W servo motor: 2 each
    24. 2.5 ton spiral elevator: 4 each
    25. Distance adjust device for pressing rollers: 2 sets
  7. Part Five: Hot Melt Glue System
    1. Hot melt glue melter: 1 set
    2. Hot melt glue pump: 1 each
  8. Part Six: Cooling System
    1. φ240 water cooling steel roller: 2 pieces
    2. Cooling system: 1 set
    3. Rotating joint: 2 each
    4. Metal hose: 4 pieces
  9. Part Seven: Edge Cutting Device
    1. φ125 bowl shape edge cutting knife: 2 sets
    2. 0.75 kW motor: 2 sets
    3. Edge cutting adjusting device: 1 set
    4. Cutting waste removing device: 1 set
  10. Part Eight: Rewinding Device
    1. φ180 rewind silicone roller: 1 piece
    2. φ100 rubber bending roller: 1 piece
    3. φ75 aluminum alloy roller: 5 pieces
    4. Omron tension control system: 1 set
    5. φ75 aluminum alloy roller: 2 pieces
    6. Low friction cylinder: 1 each
    7. Angle detector: 1 each
    8. Pneumatic element: 1 set
    9. Rewind swing arm device: 1 set
    10. φ100 cylinder: 2 each
    11. Fabric guide device: 1 set
    12. φ25 cylinder: 2 each
    13. Siemens (aluminum) gear motor: 1 each
    14. Yaskawa inverter: 1 each
    15. Machine rack: 1 set
  11. Part Nine: Fabric Unwinding Device
    1. φ180 rubber roller: 3 pieces
    2. φ150 aluminum opener: 1 piece
    3. φ75 aluminum roller: 1 piece
    4. EPC position adjust device: 1 set
    5. Siemens (aluminum) gear motor: 1 each
    6. Yaskawa inverter: 1 each
    7. Machine rack: 1 set
  12. Electrical and Control Specifications
    1. All electric appliances are of Schneider brand.
    2. PLC control is of Mitsubishi brand.
    3. Inside the engraved roller there is circulating heating conduction oil; the surface temperature difference is about 1 degree Celsius.
