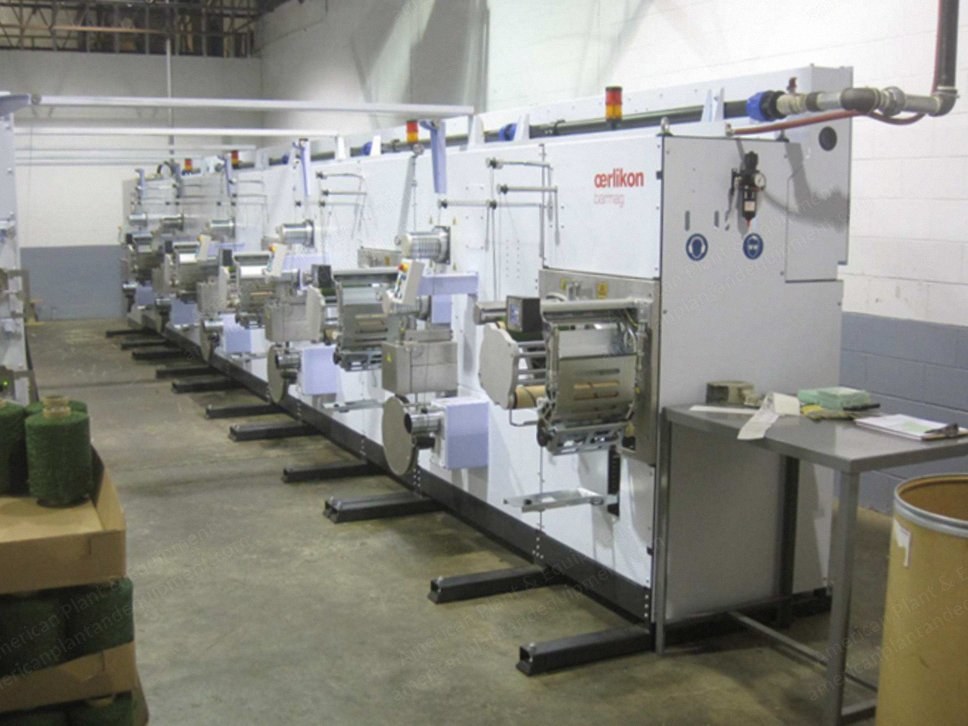

Monofilament texturing unit for one yarn, with 2 electrically heated godets, each one with separating roller
For texturizing of various yarns
Each machine consists of the following units
Specifications
Godet diameter: 132 mm
Godet length: 150 mm
1 heating zone per godet
Godet temperature: maximum 180 °C
Temperature tolerance on godet surface: +/- 2 °C
Temperature tolerance between godets: +/- 1.5 °C
Separating rollers with ball bearings, with 1 piece texturing jet
Heater for compressed air with automatic temperature and pressure control
Cooling drum with blower and air filter
Diameter of cooling drum where the textured yarn is running: 346 mm
Blower capacity: 2.2 kW
Large size air filter
Chromium plated take-off roller with separating roller to supply the textured yarn from the cooling drum to the winder
Winder
Winoro-M automatic precision cross winder
Precision winding with electronic gear for changing the winding ratio several times during winding of one bobbin for excellent bobbin quality even with the slippery artificial grass monofilament
Fully automatic bobbin change
With magazine for up to 4 pieces of empty winding tubes
Winder with decreasing bail roll pressure and with decreasing winding tension for winding of textured yarn with excellent bobbin quality
Winding on to cheap paper tubes typically used in BCF yarn production
Bobbin dimensions: inner diameter 73 mm, length of tube 290 mm +/- 0.5 mm, traverse 250 mm, outer diameter of tube 79 mm
Deposit of finished bobbin on to parking position below the winder
Signal flash lamp for alarm of empty tube magazine
Control System
Switch control box with number of inverters for each texturing position
1 inverter for each unrolling position, total 2 pieces
1 inverter for each heated godet, total 2 pieces
1 inverter for cooling drum, 1 piece
1 inverter for take-off roller, 1 piece
4 inverters for automatic winder, total 4 pieces
Total number of inverters per position, total 10 pieces
Make of inverters: Siemens
Unrolling Tower
Each 2 positions consist of the following units: 1 unrolling tower with 2 unrolling positions, each unrolling position is yarn tension controlled
Each unwinding position suitable for following tube dimensions: flanged bobbins with tube inner diameter 90 mm, diameter of flanges 260 mm, tube length 310 mm, traverse 280 mm
Condition
Stored in warehouse, in perfect condition, never run
